R911308869
Original price
$2,626.19
-
Original price
$2,626.19
Original price
$2,626.19
$2,626.19
-
$2,626.19
Current price
$2,626.19

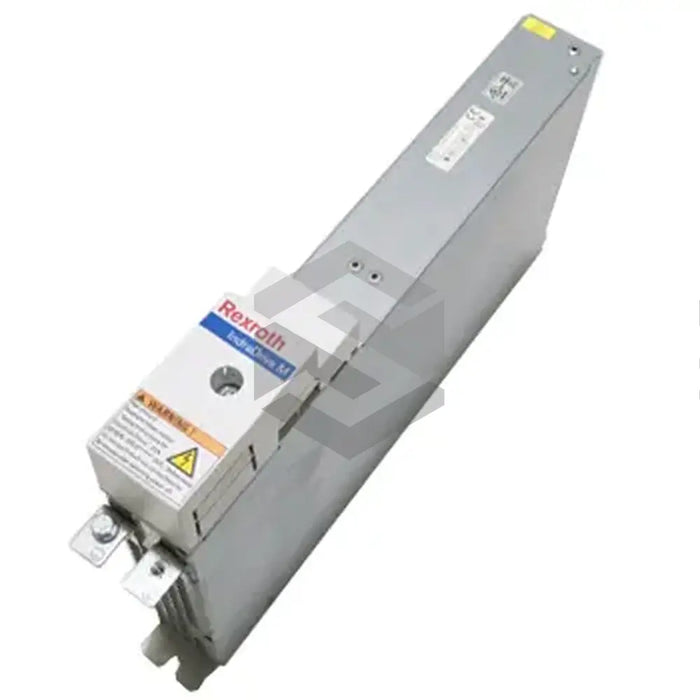

The R911308869 (HLC01.1D-05M0-A-007-NNNN) is a DC capacitor Bus capacitor from Bosch Rexroth Indramat, an industry leader in drive controllers, servo motors, and other essential components for motion control applications. This bus capacitor operates optimally in drive controller applications with cycle times of 30cps or fewer, and in systems with DC bus connections spanning over two meters between controllers.
However, applications exceeding 30cps should avoid using the R911308869 (HLC01.1D-05M0-A-007-NNNN); dips in the mains supply voltage can overload the capacitor, causing potential damage to the drive controller. To ensure the integrity of your system, consider DC Bus capacitor units. The R911308869 (HLC01.1D-05M0-A-007-NNNN) has a single line and design, and a 400mm mounting depth. Featuring a protection degree of IP 20, a nominal capacitance of 5.0mF, and a nominal voltage of 700V, this capacitor should be placed in a control cabinet for protection. If it possesses the highest continuous power in your system, position it next to the drive controller. This 8.6kg bus capacitor boasts a maximum discharge time of 760s, a natural convection cooling method, 13W power dissipation, and a maximum current of 60A. Distance bolts should be used to compensate for varying mounting depths between the drive controller and the DC bus capacitor.
30 Day Warranty
Technical Specifications
