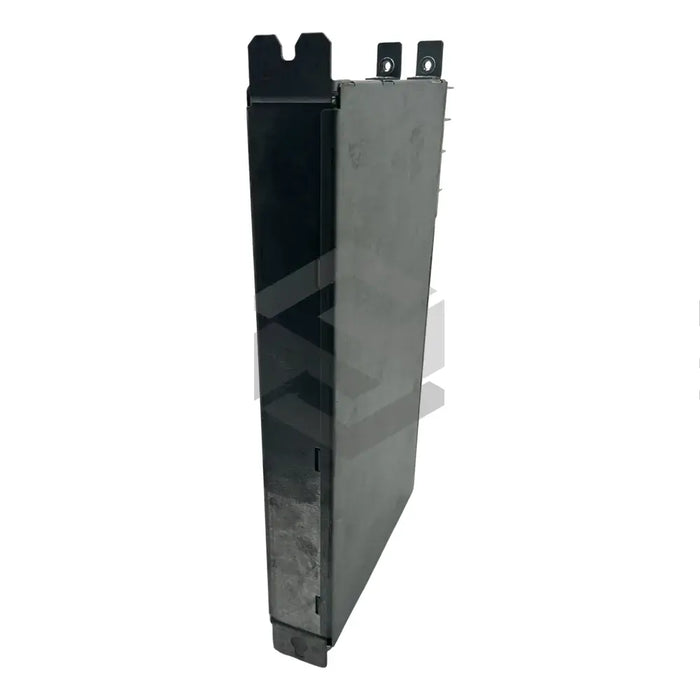

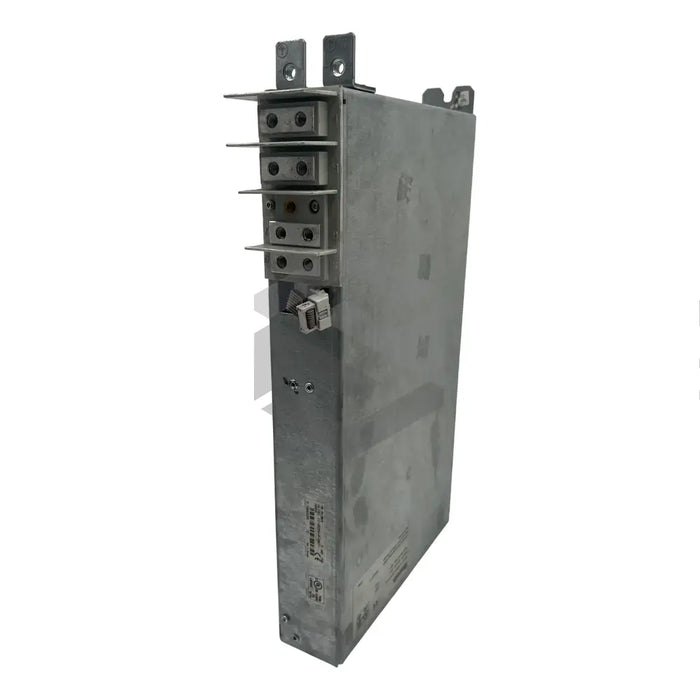

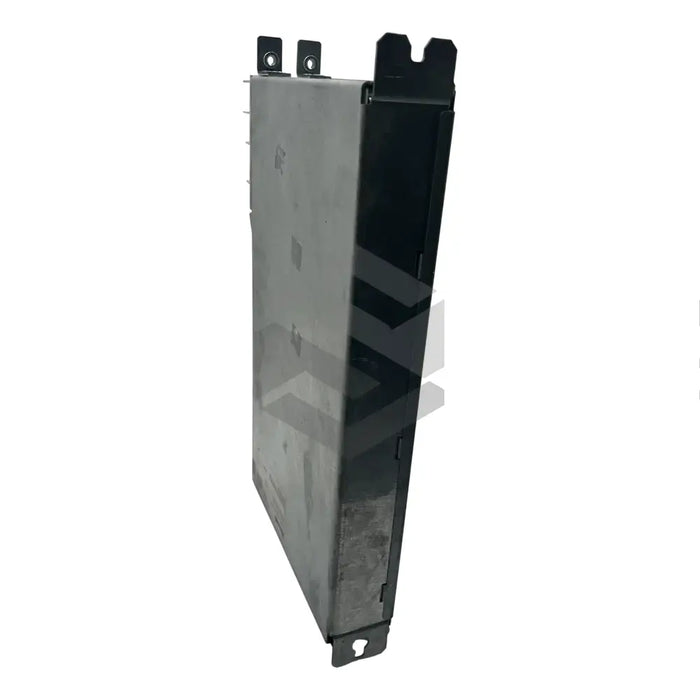

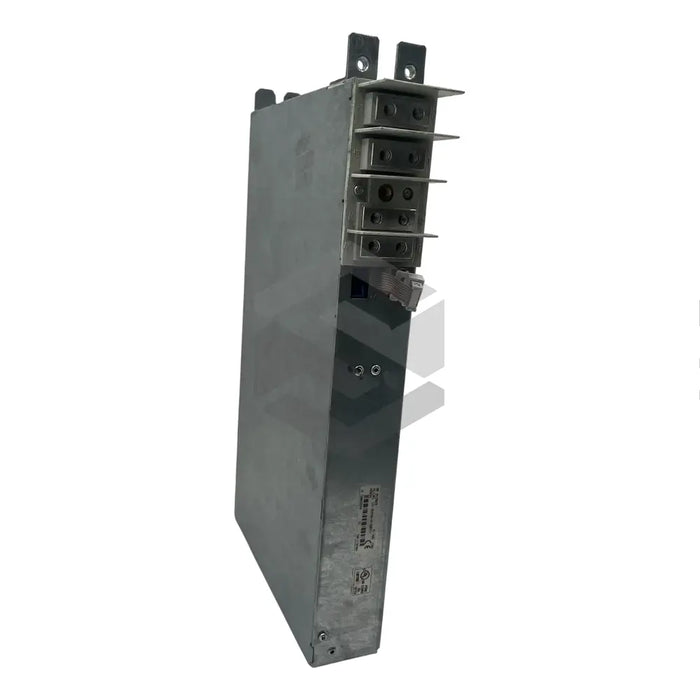

The R911308870 (HLC01.1C-02M4-A-007-NNNN), produced by Bosch Rexroth Indramat, functions as a DC capacitor within IndraDrive drive systems. It boasts a nominal DC bus capacitance of 2.4mF and an input voltage range of 245 - 750 DC V. The device is cooled via natural convection and runs with a power dissipation of 24W. The optimal operating temperature is 55 degrees Celsius. The high input voltage means less stored energy due to the decreasing differential between the DC bus voltage and the bleeder threshold.
This DC capacitor incorporates an X1 Bus module, enabling efficient data interchange between connected devices. Its presence does not interrupt the data transfer when connected to devices on the DC bus capacitor. It weights around 4.3 kg and should be situated directly adjacent to the drive controller, specifically if it possesses the highest DC continuous power. Distance bolts are included to adjust for differences in mounting depth between the DC capacitor and drive controller. The R911308870 (HLC01.1C-02M4-A-007-NNNN) works best in industrial applications demanding continuous energy after a main supply failure. Note that the capacitors maintain high voltage after the power is switched off. It is crucial to wait 30 minutes prior to handling to avoid electrical shock.
30 Day Warranty
Technical Specifications
