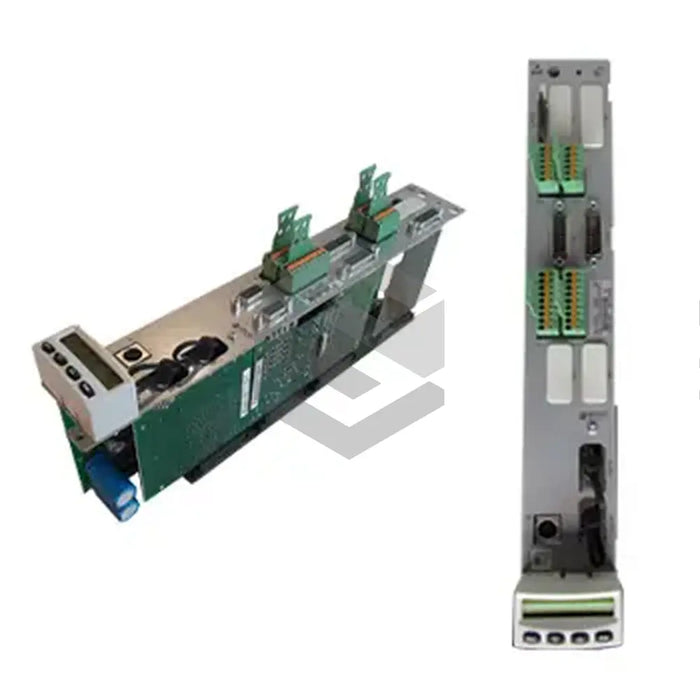

The R911309008 (CDB01.1C-SE-NNN-NNN-NNN-NNN-NN-S-NN-FW) drive controller control section by Bosch Rexroth Indramat is customarily installed within the power section, manipulated via the standard control panel. The control panel, not designed for 'hot plug' operation, houses a one-line display that showcases operating status, caution alerts, command diagnosis as well as errors. For user-friendly operation, the panel is equipped with four keys that facilitate the execution of further commands and intricate diagnostics shown on display.
The additional uses of the panel encompass setting the drive address, establishing a data reference position, scanning the error memory, and configuring the analog outputs. With a power consumption of 8W, an inrush current of 6A, and a peak pulse width of 60ms, the R911309008 (CDB01.1C-SE-NNN-NNN-NNN-NNN-NN-S-NN-FW) operates on a DC 24V power supply. Relevant accessories include fiber optic cables, a HAS05.1-003 signal level converter for encoder emulation, and a HAS05.1-007 adapter for conversion from D-Sub to terminal connector. This control section can be mounted and dismounted up to twenty times. It is a part of the CDB product range and offers a SERCOS interface master communication configuration option alongside separately ordered firmware. The device should be put to use in suitable surroundings, featuring an installation elevation no higher than 1000 meters above sea level and a maximum relative humidity of 95%, in the absence of condensation.
