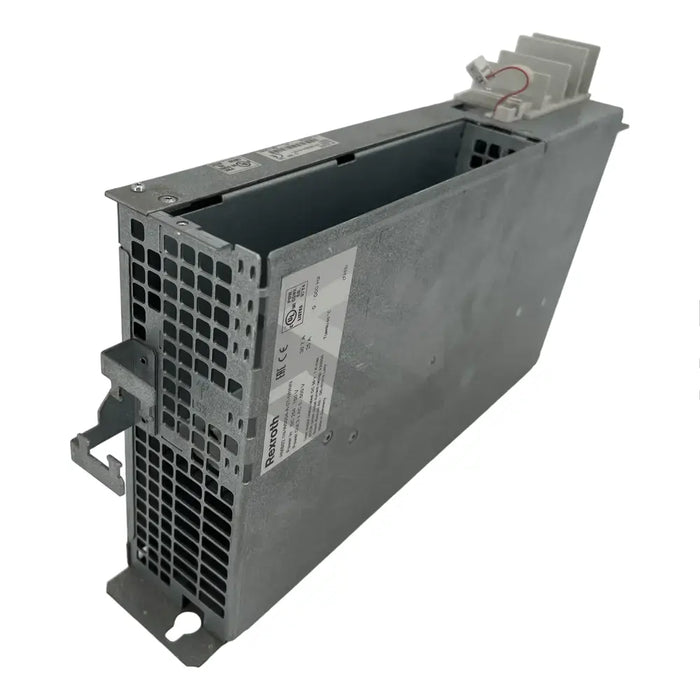

product Main (Front Left) image of R911309079

R911309079

by Bosch Rexroth Indramat
$0
$2,828.92 - $2,828.92
$2,828.92
$2,828.92 - $2,828.92
$2,828.92
In Stock, Ships Today
 More payment options
The R911309079 (HMS02.1N-W0054-A-07-NNNN) is a Rexroth Indramat power section that forms an integral part of the globally recognized Rexroth IndraDrive system. This piece of equipment is UL certified and CSA approved, expanding its applicability to various international contexts. It is designed to withstand transport conditions that involve both temperature variations between -26 to 70 degrees and humidity levels of 5 to 95%. When idle for over a year, it requires an operational period of an hour for optimum safeguarding of its electrolytic capacitors. This power section employs an air cooling method and operates under a nominal DC bus voltage of 700 V. It exhibits a robust short circuit current rating of 42000 A rms, delivering an output current of 25.0 A. Other specifications include a maximum current of 54A and an IP 20 protection category rate. Physically, it weighs 5.0 kg and measures 352 x 205 x 75 mm. Ideally, it should be vertically positioned in an IP 10 standarized control cabinet. The operational ambient temperature range is 0 to 40 degrees and the altitude limit is 1000 meters. Appropriate clearance provisions in the installation process and regulated switching frequencies ensure optimal air circulation and overall function retention.
30 Day Warranty
Technical Specifications
  • Ambient Operating Temperature Range: 0 to 40 degrees
  • Volumetric Capacity of Forced Cooling Air: 37.0 m3/h
  • Weight: 5.0 kg
  • Maximum Current: 54A
  • Storage Condition: Operate for at least one hour if stored for more than a year
