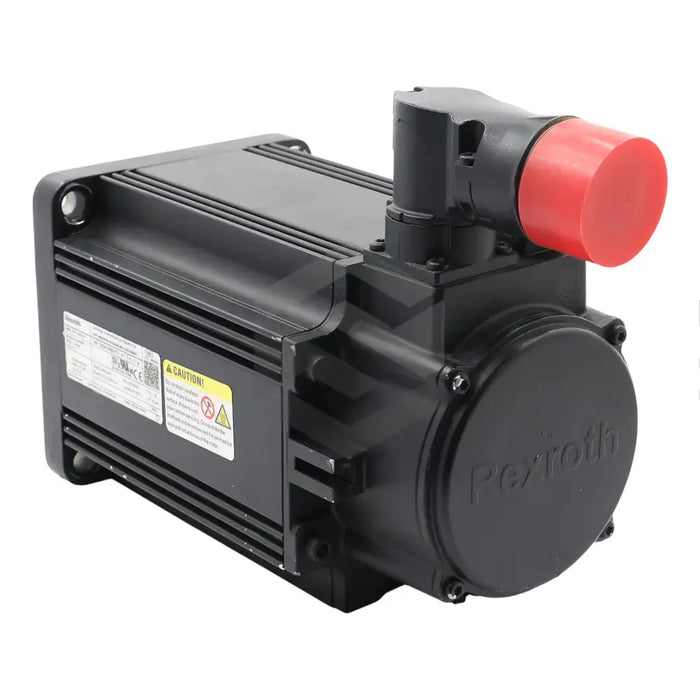

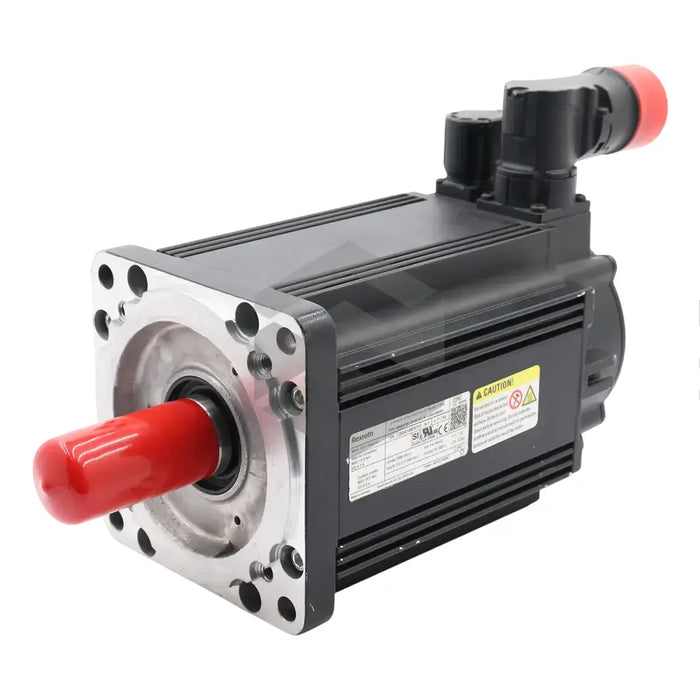

R911309218
The Bosch Rexroth Indramat R911309218 (MSK070C-0150-NN-M1-UG0-NNNN) is a superior class synchronous motor designed for exceptional automation. This type 70 motor, with a 150 winding code, operates on natural convection cooling. Notably, it is equipped with a multi-turn—absolute Hiperface optical encoder exhibiting 128 signal periods.
The R911309218 (MSK070C-0150-NN-M1-UG0-NNNN) possesses a standard smooth shaft and seal, capable of withstanding both axial and radial forces exerted on the output shaft. Connections are made easy with a 240-degree rotatable plug and assembly is further facilitated by using an RLS1200 power connection cable and an RGS1000 encoder connection cable. Note, the assembly should be done at an altitude between 0 and 1000 meters above sea level and operated in an ambient temperature between 0-40°C. Without any holding breaks, the R911309218 (MSK070C-0150-NN-M1-UG0-NNNN) promises safety with varying degrees of protection like IP65, IP67, and IP24. With either clamping elements or sets, the machine elements can be easily linked to the motor.
Furthermore, the motor offers a maximum torque of 33Nm, a voltage constant of 213.2 V/1000 min-1 at 20-degrees, and a maximum speed of 2,500min-1. Despite tipping the scales at approximately 11.7kg, it features 6 pole pairs. The motor's KTY84-type temperature sensor is regulated through two thresholds: 140-degrees indicating a warning and 150-degrees for switch-off. All in all, the R911309218 (MSK070C-0150-NN-M1-UG0-NNNN) IndraDyn S motor is versatile and can adapt to all your application requirements.
30 Day Warranty
