R911309368
The R911309368 (PPC-R22.1N-T-Q2-P2-NN-FW) is a highly efficient CNC module manufactured by the leading industry name, Bosch Rexroth Indramat. It embodies a 2-tier design and employs a power supply cable with a cross-section ranging from 0.75mm2 to 1.5mm2 based on current demands. The unit is mastered for high-discharge current applications and operates at high voltages. Suited strictly for commercial usage, the deployment of this device mandates compliance with the prevailing national safety regulations and specific safety guidelines. Furthermore, operation and maintenance should only be carried out by qualified personnel.

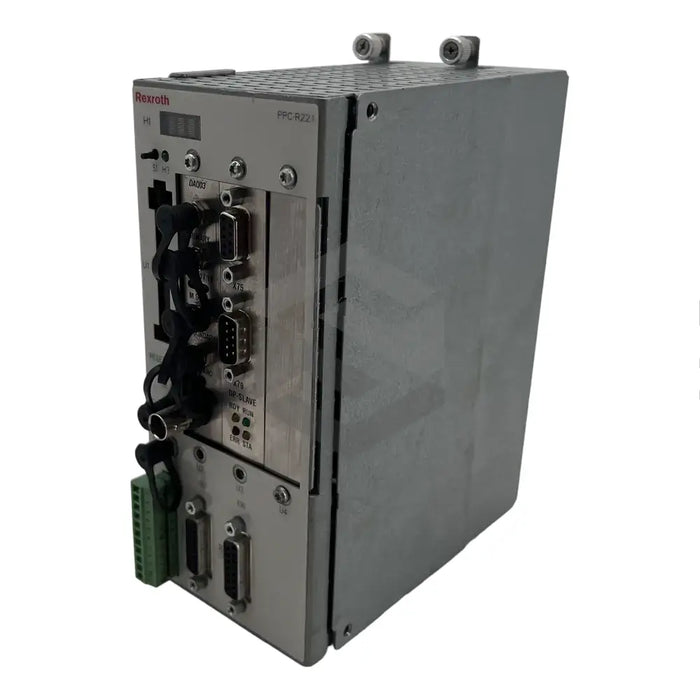

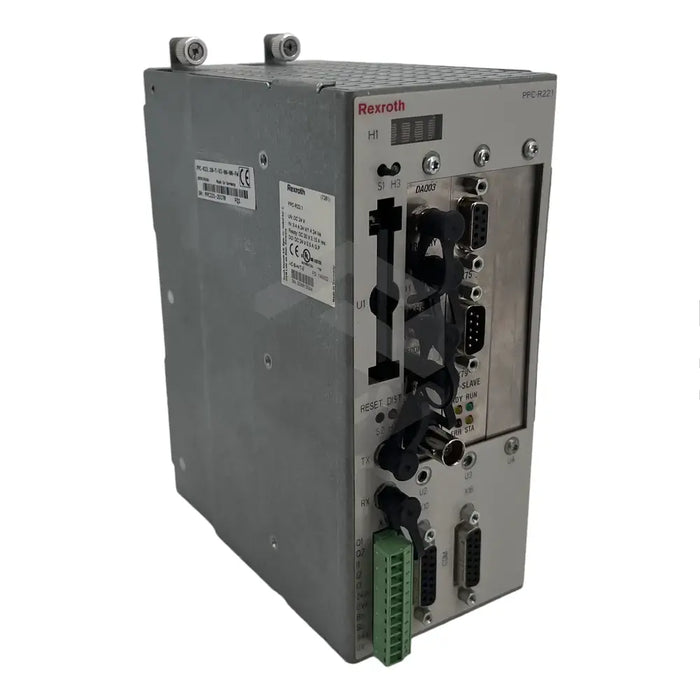

Heat safety is critical with the R911309368 (PPC-R22.1N-T-Q2-P2-NN-FW), as the housing gets highly heated during operation; touch is likely to cause burns. An easily accessible emergency stop switch should be put in place to ensure operator security. Disassembling or opening the pressure-lock should be avoided. On its structure, an H1 LED display is neatly positioned on top. A note of importance - the module rack is not designed to control I/O modules and should only be installed once the module rack is mounted. It requires a DIN TS top hat rail of dimensions 35 x 27 x 15mm for mounting and comes complete with a locking screw. This device operates optimally in a temperature range of 0° to 45° Celsius and weighs 1.3kg. According to EN 61131-2 specifications, the 24VDC power supply has a tolerance scope of -15% to +20%. A unique feature is the ready-for-operation relay designed to facilitate system monitoring. This relay is built to last a minimum of 500,000 switch cycles and is effectively protected against overcurrent.
