R911309535

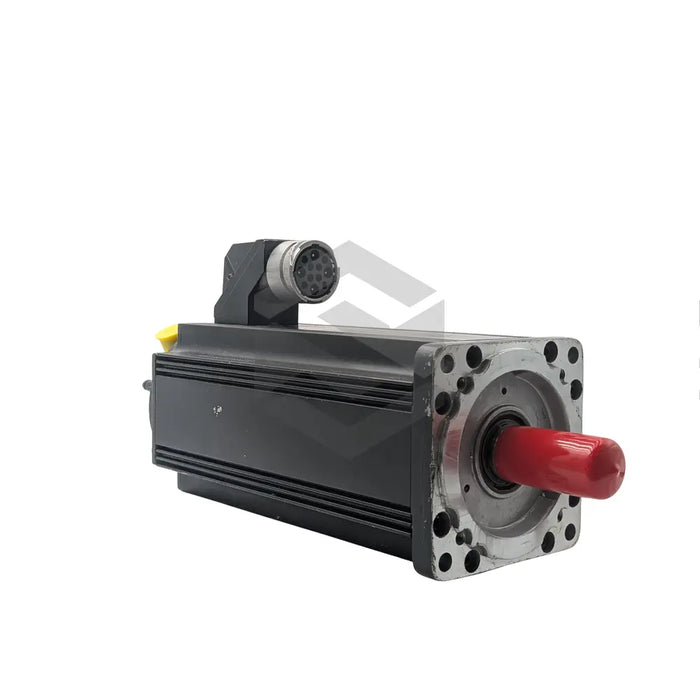

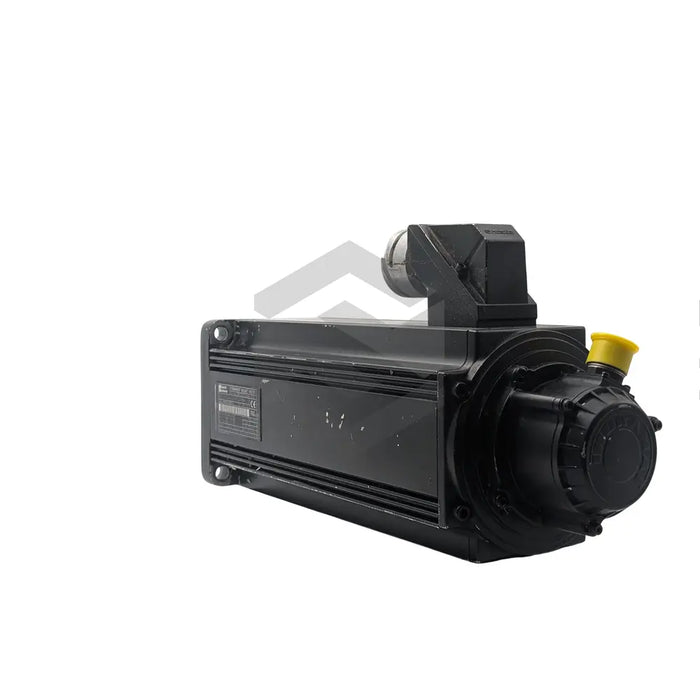

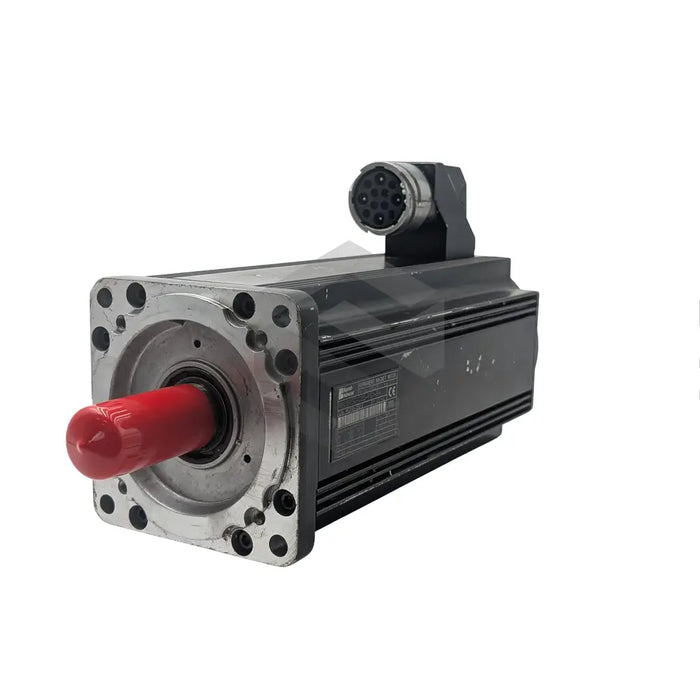

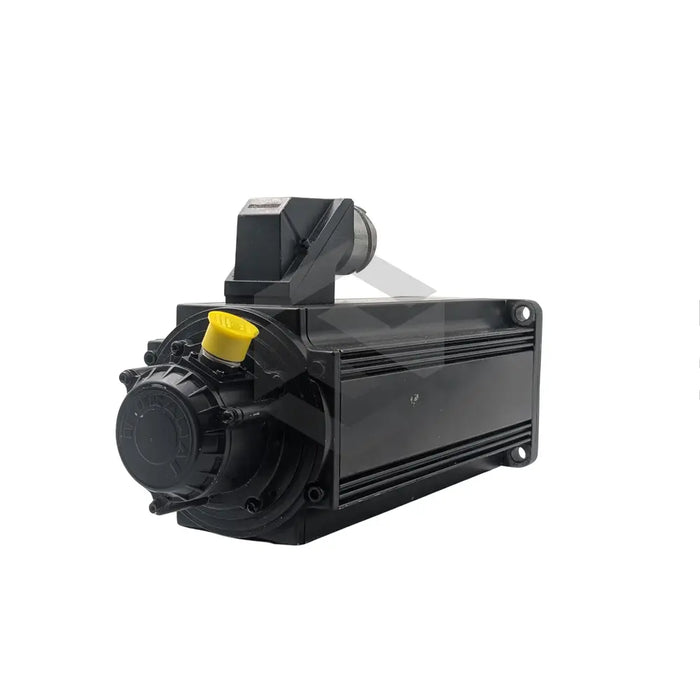

Produced by the industry stalwart, Bosch Rexroth Indramat, the R911309535 (MHD093C-035-PG1-LA) is a premier synchronous motor of the MHD series renowned for its maintenance-free operation and exceptional reliability. A testament to cutting-edge innovation, this MHD series motor is engineered with advanced permanent magnet materials. It leverages the power of electrical commutation, making it viable for extreme load conditions, often found in continuous start-stop operations with high frequency. The digital servo feedback, incorporating an integrated multiturn absolute encoder, assures precise speed and positional control. Its main specifications include a centering diameter of 130mm, a nominal speed of 2,500 revs/minute, a maximum torque of 88.0 Nm, and it consists of 4 pole pairs.
Characterized by a resilient prime black coating in a/w RAL 9005, the R911309535 (MHD093C-035-PG1-LA) offers formidable resistance against climatic conditions, coloring, chalking, diluted acids, and lyes. The presence of temperature sensors precludes harmful overload scenarios. The motor housing, bearing an IP 65 rating, ensures that it is impervious to dust, shock, and moisture. To maximize user convenience, Bosch Rexroth designed this motor to facilitate any-position installation along with simplified cabling solutions, varied in design and readily available to address all potential cabling needs.
