R911309705

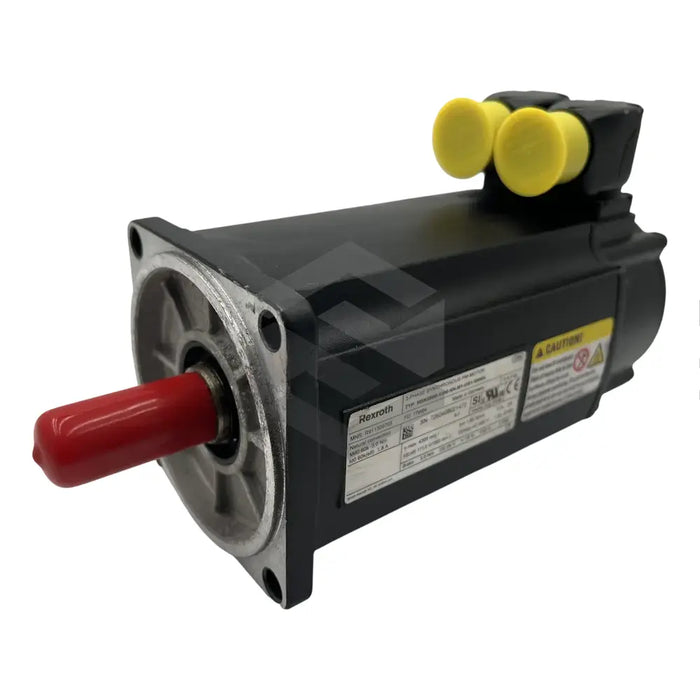

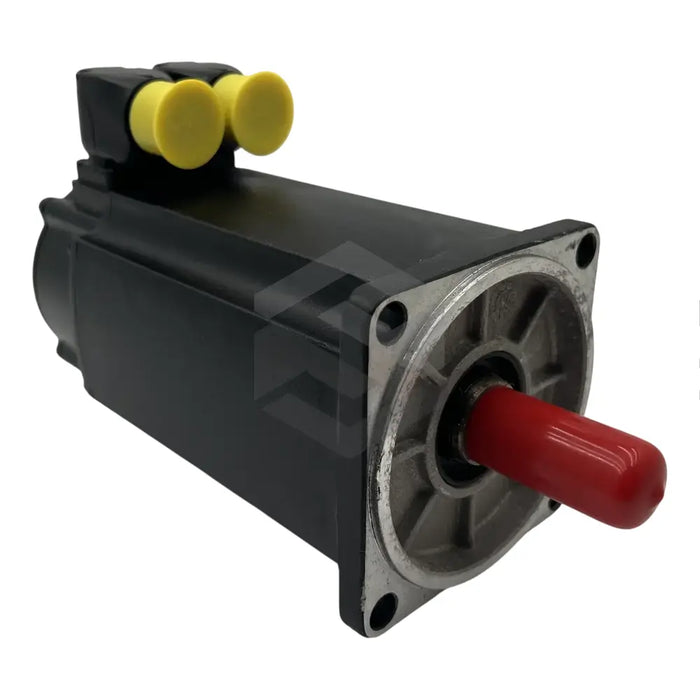

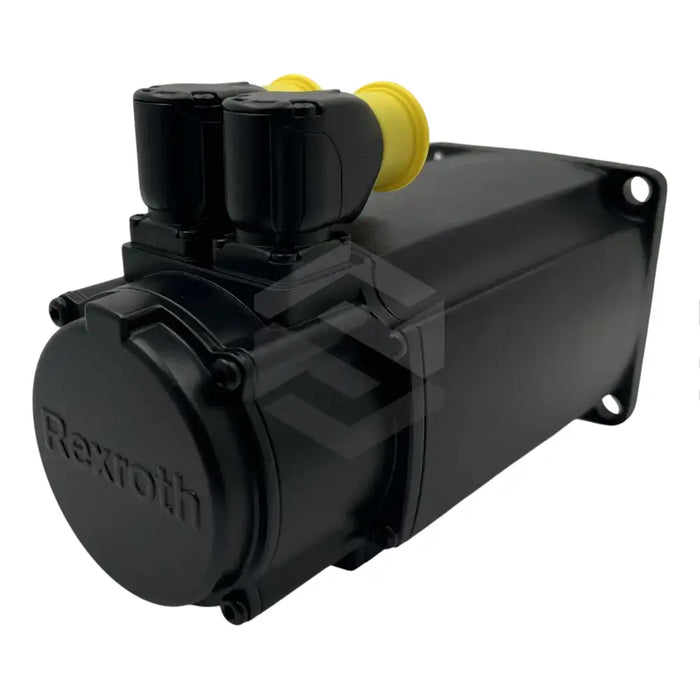

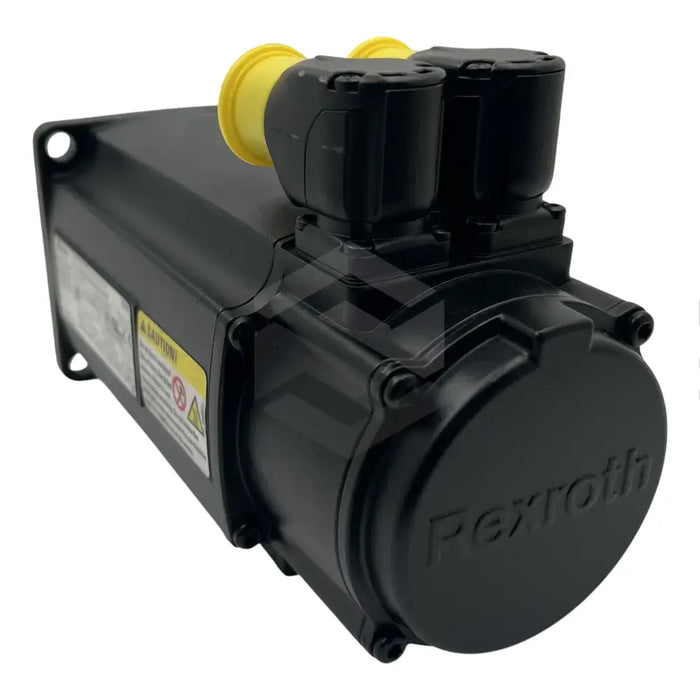

The Bosch Rexroth Indramat R911309705 (MSK050B-0300-NN-M1-UG1-NNNN) is a state-of-the-art servomotor by IndraDyn S motors that sets a high industry standard. This compact motor features exceptional torque density, advanced dynamics, and ultra-high precision. Equipped with an integrated encoder unit, the R911309705 (MSK050B-0300-NN-M1-UG1-NNNN) servomotor requires comprehensive knowledge of the rotor's current position to adjust its speed or position, ensuring the exact signals are transmitted to the drive controller.
This servomotor design unique encoder electronics with a data memory bank that shops essential information like the motor type, motor, and control loop parameters. This data can be accessed effortlessly by Rexroth drive control devices. With specifications including continuous torque at standstill at 3.4Nm, a constant current of 1.8A at stop, a maximum torque of 9Nm, and a top speed of 4300 min-1, the R911309705 (MSK050B-0300-NN-M1-UG1-NNNN) is highly competitive. It features a four-pole design with an IP65 protection level, natural convection housing, fan mounting capabilities, and a standard shaft sealing ring. Holding brake with an electrical release of 6Nm, 240-degrees rotatable electrical connection plug, and an optical encoder are key features of its design. The encoder allows comprehensive indirect position recording of around 4096 mechanical rotations.
