R911309730

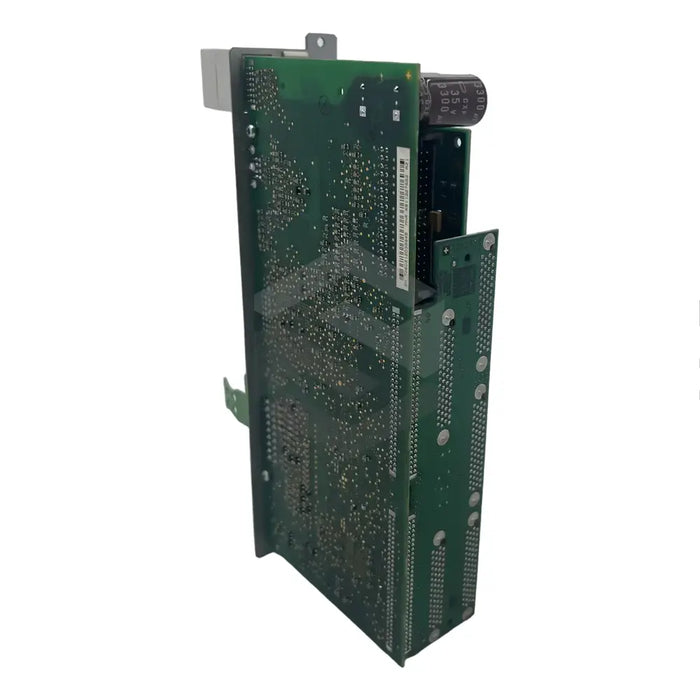

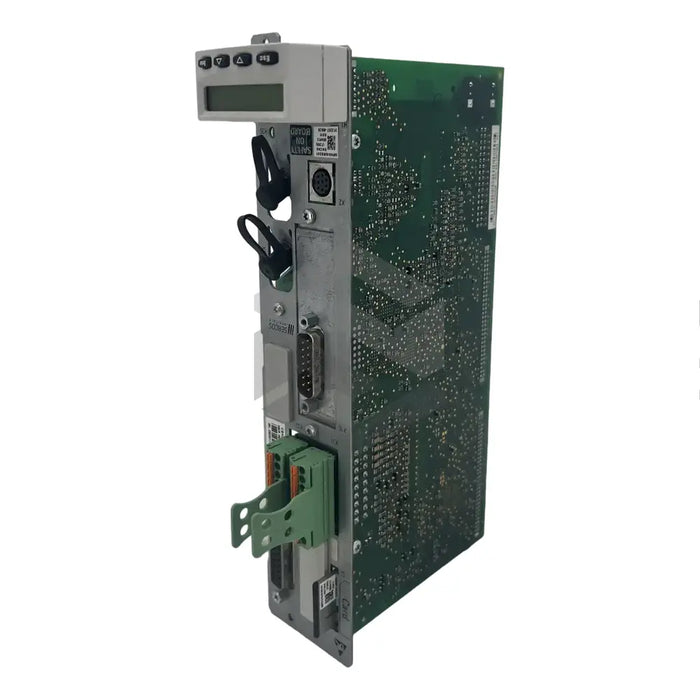

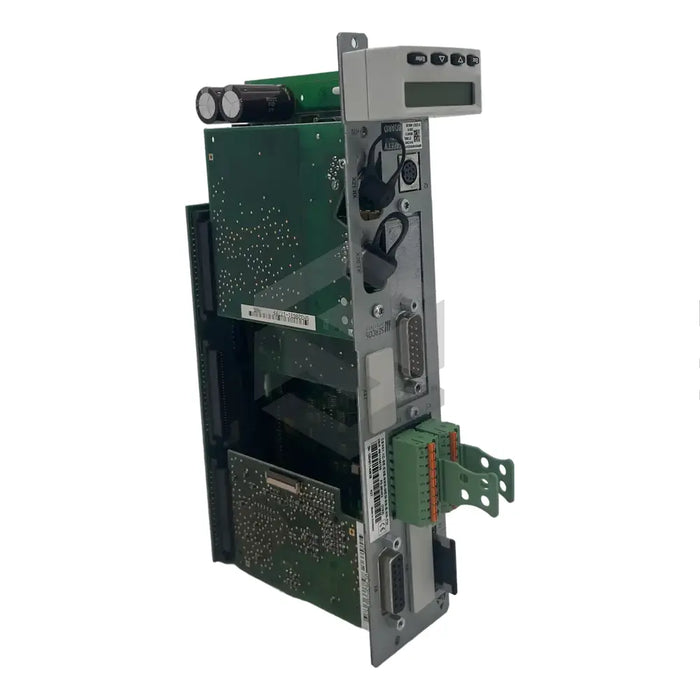

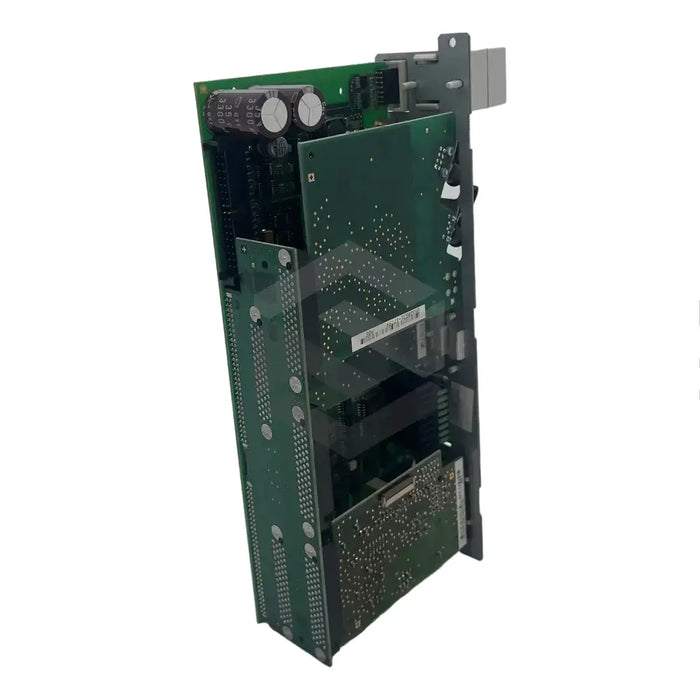

The R911309730 (CSH01.1C-SE-ENS-NNN-MEM-NN-S-NN-FW) model, produced by industry leader Bosch Rexroth Indramat, boats an innovative design, exceptional quality control, and is supported by a robust team of dedicated technical experts. This model features an encoder emulator situated in its X10 slot, and its firmware is customizable with separate ordering.
This model comes ready with 4 digital outputs, a relay contact, and an IndraDyn/1 Vpp/TTL encoder housed in the X4 slot. The SERCOS model performs optimally with a minimum cycle time of just 250 microseconds. The CSH01.1 control section, an integral part of a robust programmable single-axis drive controller, is tailored for applications including but not limited to printing, packaging, food processing, and handling and mounting systems. Dimensions of this model include a width of 103mm, depth of 49.5mm, and a height of 244mm. The unit features an interface master communication module and between seven and eleven programmable digital inputs. It draws a power of 1 watt and boasts user-friendly operational controls. It is noted that users must operate the machine as per safety guidelines to prevent accidents and damages. The model presents a range of velocity, current, and cycle time functions suitable for various needs.
30 Day Warranty
Technical Specifications
