R911310248

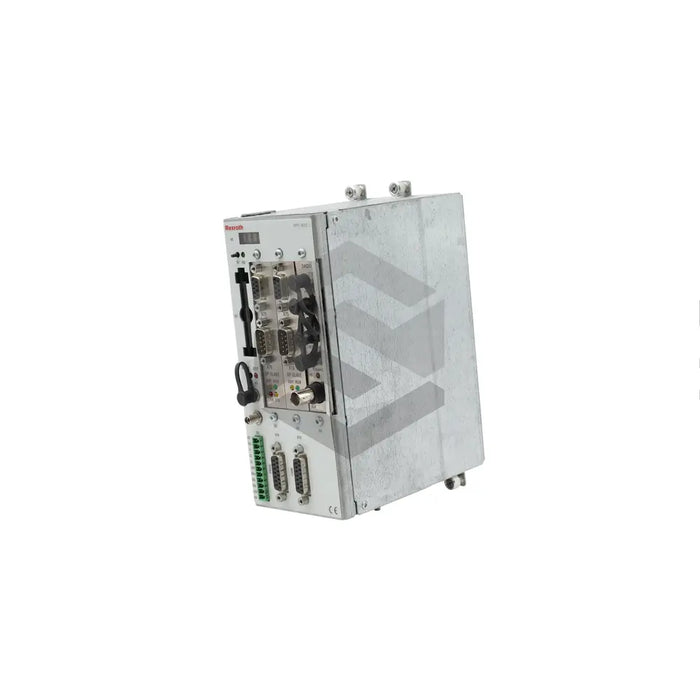

The Bosch Rexroth R911310248 (PPC-R22.1N-T-Q1-P1-P2-FW) is a standalone, multi-axis motion and logic control system from the Rexroth Indramat series. This unit, with its Reco 02 form factor, can control up to 40 different Rexroth digital drives such as EcoDrive 03 and Diax 04 drives. For programming purposes, a PC running VisualMotion Toolkit software is needed. The system is equipped with GPP10 compatible firmware (order separately) that supports both multi-axis coordinated and non-coordinated motion control.
This unit comes with on-board Ethernet, ARCNET support, a 4-digit alphanumeric display, two serial interface ports, and a Serco interface that supports baud rates from 2 to 16 Mbaud. It has two inbuilt Fieldbus interface cards - a PROFIBUS-DP Master module and a PROFIBUS-DP slave module. Dimension-wise, it's 164 mm in height, 165 mm in depth, and 84 mm in width, with a weight of 2.87 pounds. The operational temperature range for the R911310248 (PPC-R22.1N-T-Q1-P1-P2-FW) is 32 to 113 degrees Fahrenheit, with a relative humidity of 5 to 78%. For storage and transportation, the ambient temperature range is -13 to 158 degrees Fahrenheit, and the relative humidity range is 5 to 95%. The optimal operating altitude is 1500 meters, extending up to 3000 meters for storage.
30 Day Warranty
Technical Specifications
