R911310882

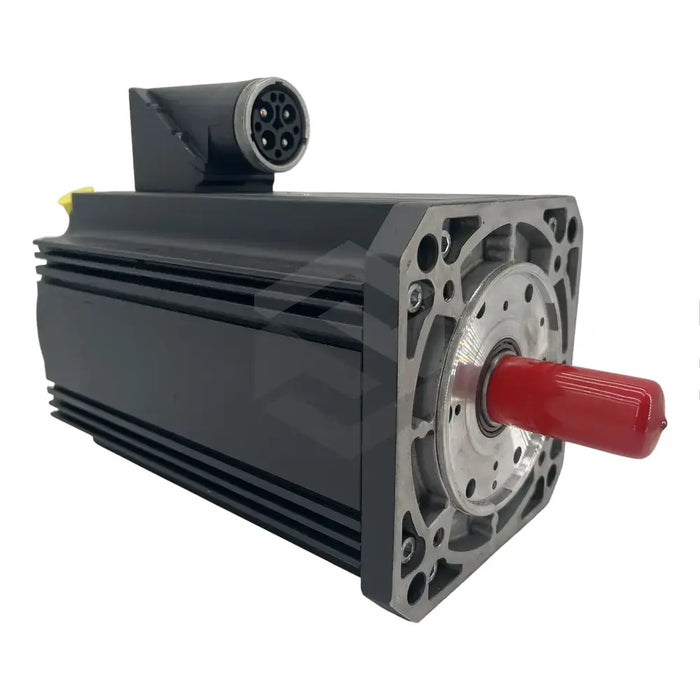

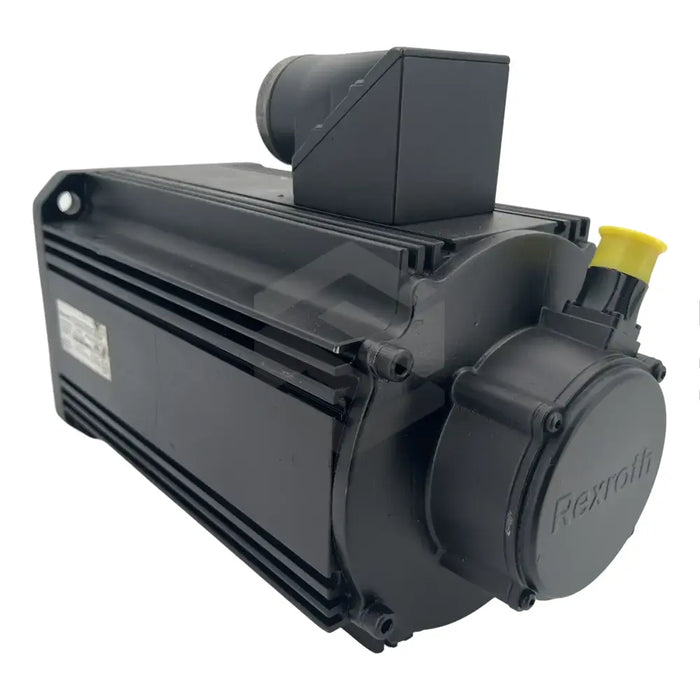

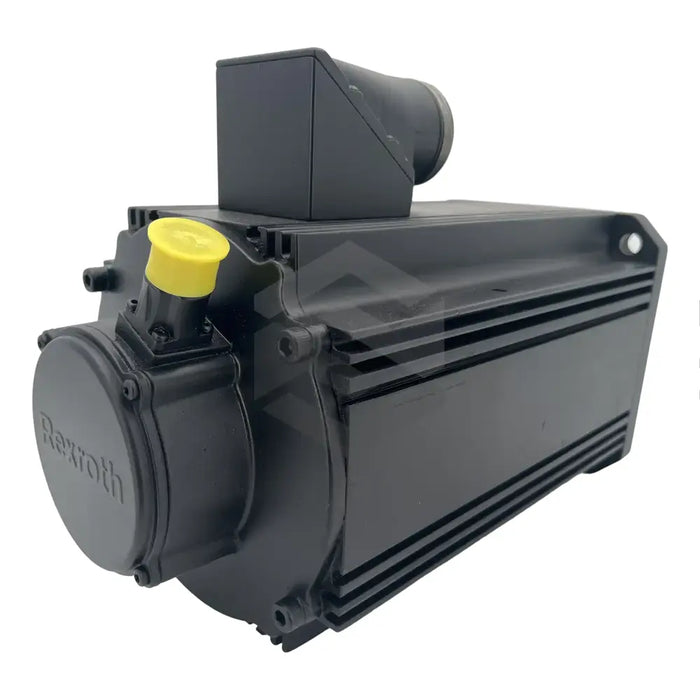

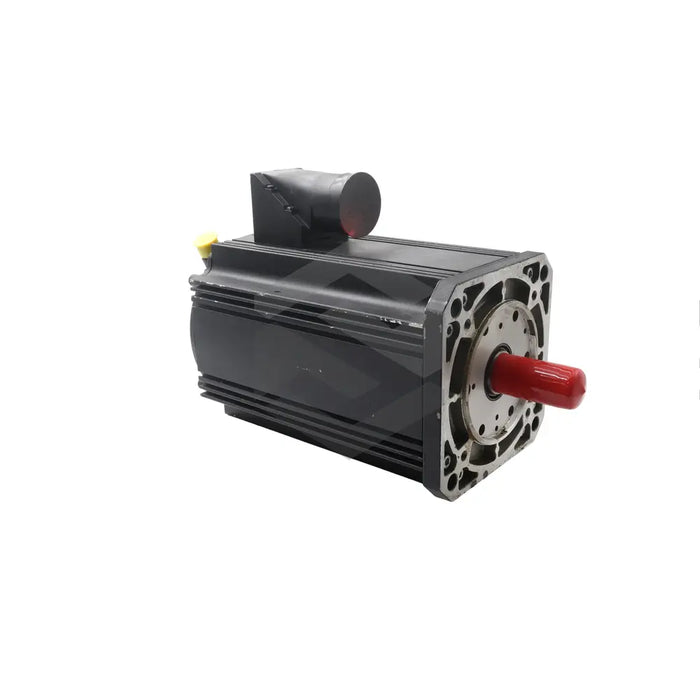

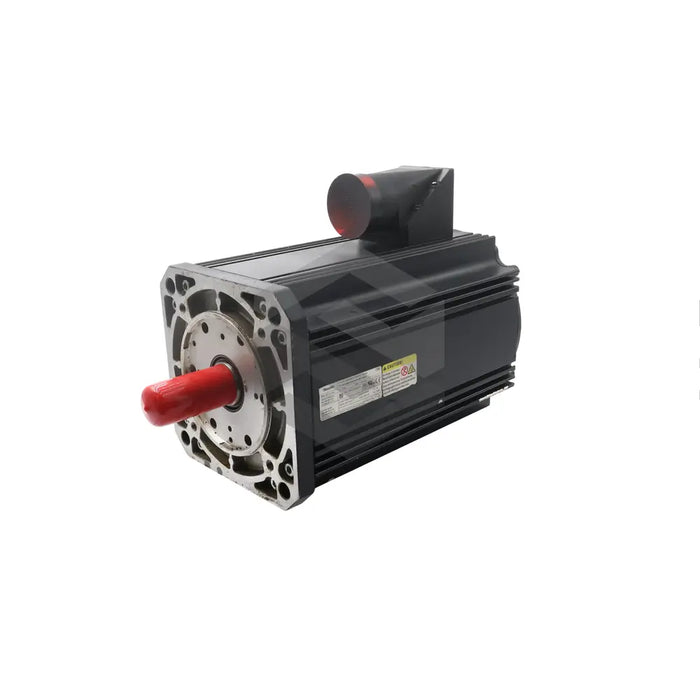

The R911310882 (MSK100B-0300-NN-S2-AG0-RNNN) is a synchronous servo motor created by Bosch Rexroth Indramat, classified under the MSK product range. The specific motor model features a motor frame size of 100, frame length, denoted by B, and a winding code marked as 0300. Its total length is 378 millimeters, and the centering diameter is 130 millimeters, with a smooth shaft extending about 60 millimeters from the motor housing. With a flange size of 165 millimeters, the motor can be securely mounted using four M10 screws via the 15mm diameter holes provided. Depending on the cooling method, natural convection or surface, the torque output varies from 28 Nm to 42 Nm, with a corresponding change in current output from 17.4 Amps to 26.1 Amps.
Weighing 34 kilograms, the R911310882 (MSK100B-0300-NN-S2-AG0-RNNN) is designed for durability with a sealed IP65 rated housing suitable for challenging operation environments. Special attention is paid to the concentricity and run-out of the black-painted motor housing design. The motor features a single-turn optical encoder equipped with an EnDat 2.1 interface, rated for 2048 signal periods. Furthermore, this MSK series motor comes with a smooth output shaft that has a sealing ring for bearing protection, which though requires occasional inspection and change. Lastly, the side A possesses the required electrical connection.
