R911310895

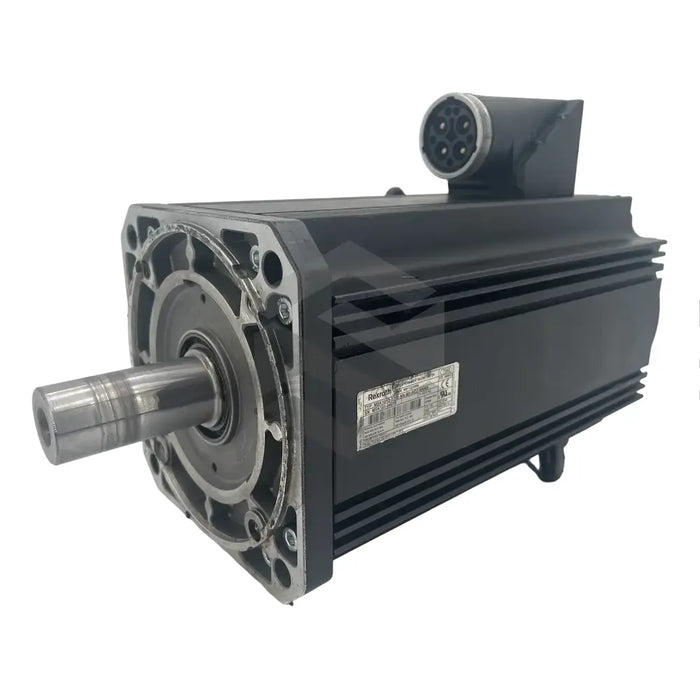

The R911310895 (MSK101D-0300-NN-M1-AG2-NNNN), a Synchronous Motor from the MSK series, is manufactured by industry leaders, Bosch Rexroth Indramat. Notable for their superior output and broad power application range, MSK series motors are differentiated by slight feature variations to cater to specific uses. The MSK 101 group, for example, exhibits continuous standstill torque and current values of 50.0 Nm and 30.6 Amps at 60 K respectively, with maximum values reaching 160 Nm and 137.7 Amps.
Constructed with a frame size of -101 and a length type D, the R911310895 (MSK101D-0300-NN-M1-AG2-NNNN) synchronous motor is robust and efficient. The core features high-grade lamination for enhanced safety, supported by class 0300 windings. Lightweight, high-grade alloys make up the housing, designed to support a natural convection heat dissipation method. The shaft follows standard specifications, integrating sealing rings at housing outlets and an electrically operated 70 Nm high-performance holding brake. A side A-fixed electrical connector and cables with a maximum length up to 75 meters are additional features. The motor is also equipped with an optical Hiperface multiturn encoder, with an absolute revolution count greater than 4096 and accuracy of ± 80 angular seconds. Paired with the IndraDrive drives, the MSK motors' compact and customizable design offers solutions for a variety of demands.
