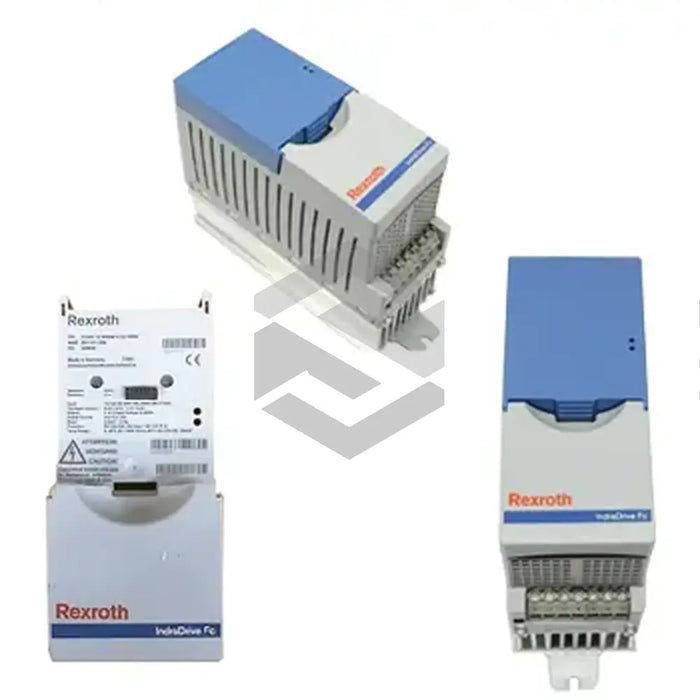

The R911311063 (FCS01.1E-W0006-A-04-NNBV) is a frequency converter crafted by Bosch Rexroth Indramat, producing an output frequency range from 0Hz to 400Hz. This device uses a feeding-style power source and operates via a module which features a 4-digit LED display. For full control functionality via the module, parameter P509 must be set to Keyboard mode. The unit does not utilize a mains switch and becomes operational once connected to a mains voltage. If analog and digital inputs are used to control the product, the factory setting remains unaltered.
Using a design code of 1, this converter can be set immediately adjacent to similar units. Mounting this device is achievable via brackets situated on the rear heatsink, with level alignment vital for optimal operation. The unit can be susceptible to electromagnetic interference, hence shielded lines are recommended for control circuits. Installation and commissioning should be performed by trained personnel only. Its control terminals, located at the front of the unit, are accessible by pushing down its cover and detaching. The unit's pulse frequency is between 3kHz and 16kHz, and is standardly set at 6kHz. Internal air circulation facilitated by an integrated blower cools the product. The rated output current for the device stands at 3.1A. Proceed with purchase to ship the converter to your desired locale.
