R911311140

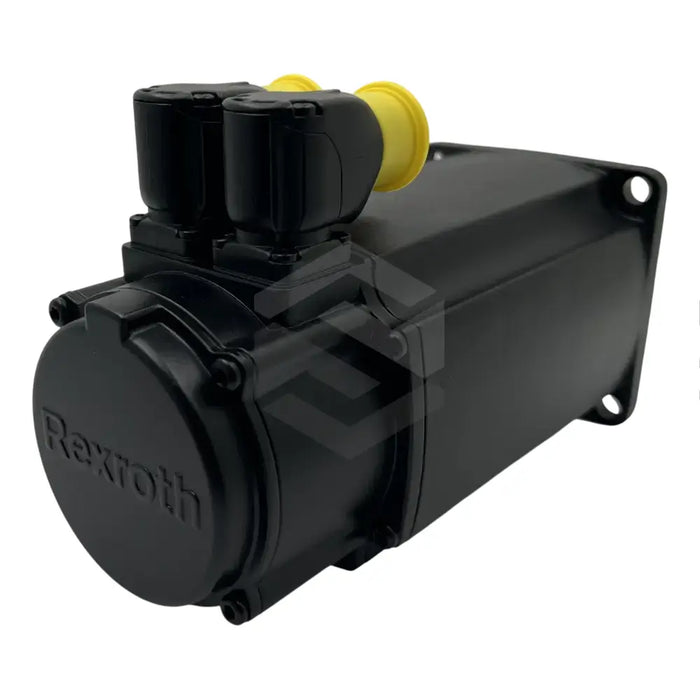

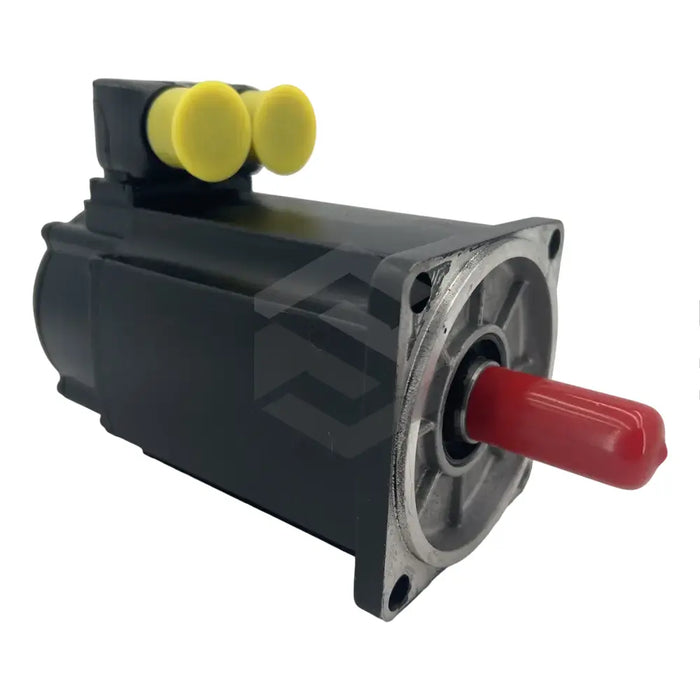

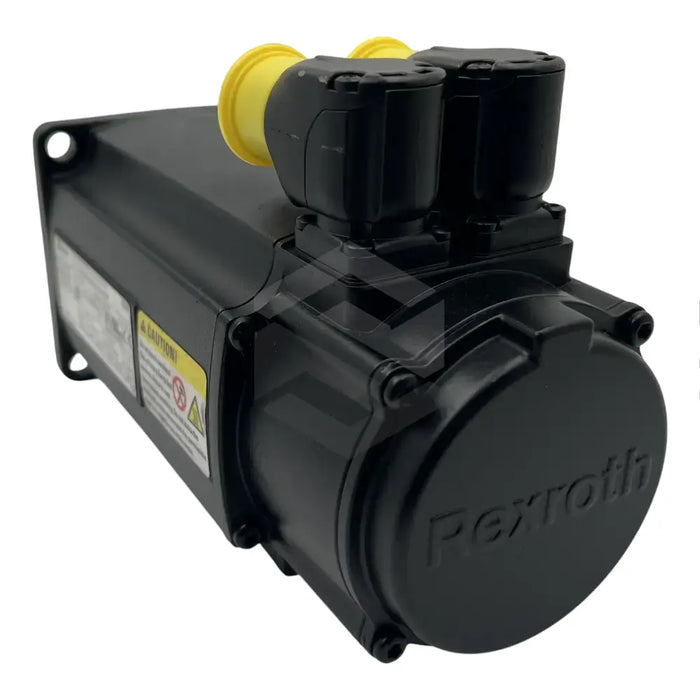

The R911311140 (MSK050B-0300-NN-S2-UG1-RNNN) is a synchronous servomotor engineered by Bosch Rexroth Indramat. It's identified as a four-pole pair servomotor, constructed with increased concentricity conforming to DIN 42955 standards. Despite having a robust performance, it is specifically designed for above-water usage. It's essential to avoid exceeding the tensile load of its connecting cables and to ensure the motor housing remains non-corrosive. The device is both cUL recognized and RoHS Compliant, forming a significant part of the drive controller and operates optimally under specific conditions, requiring immediate action at any sign of operational fault.
This servomotor is defined by its design features including its EnDat 2.1 interface encoder. This encoder records the absolute and indirect motor position within a single mechanical rotation and is designed with a system accuracy of +/-20 angular seconds. The unit also includes a 6Nm holding brake, powered at a rated voltage of 24V and a rated current of 0.65A. Additionally, the R911311140 (MSK050B-0300-NN-S2-UG1-RNNN) is set to operate within a climatic category of 3K4 and fluctuates at a temperature rate of 0.5°C per minute and can withstand a radial load up to 1,000m/s2 for 11ms. The motor shaft is designed uniquely with a zero-backlash, force-fit shaft-hub connection and a lifetime greased shaft seal for durability. Notably, the device is equipped with IP 65 protection on the flange side.
