R911312002

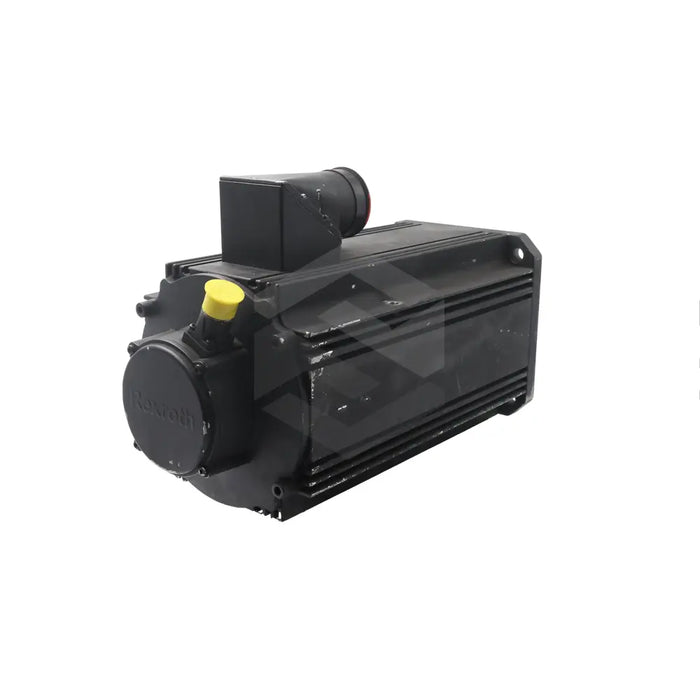

The product under consideration is an industrial motor known as R911312002 (MSK101D-0300-NN-M1-BP2-NNNN), designed and produced by globally recognised Bosch Rexroth Indramat. This motor belongs to the MSK 101 series and is notable for its maximum torque rating of 160 Nm, a maximum electrical current of 30.6 Amps, and a top speed rating of 4500 min-1. Operating temperatures for seamless functionality range between 0 to 40 degrees Celsius. It features surface cooling by convection for optimized thermal management.
Constructed with a robust frame of size 101 and a length type D, the motor sports a 4-pole pairs design and is insulated using superior class lamination with a 0300 winding for enhanced protection. It is lightweight due to the use of alloy materials, and has an external electrical connector on the B-Side for efficient heat dispersion. The R911312002 (MSK101D-0300-NN-M1-BP2-NNNN) motor deploys a sealed shaft outlet, equipped with DIN 6885-1 keyway. Additionally, this motor features an enclosed Multiturn absolute optical encoder, delivering an accuracy of ± 80 angular-seconds, and over 4096 motor revolution types for precision movement tracking.
