R911312031

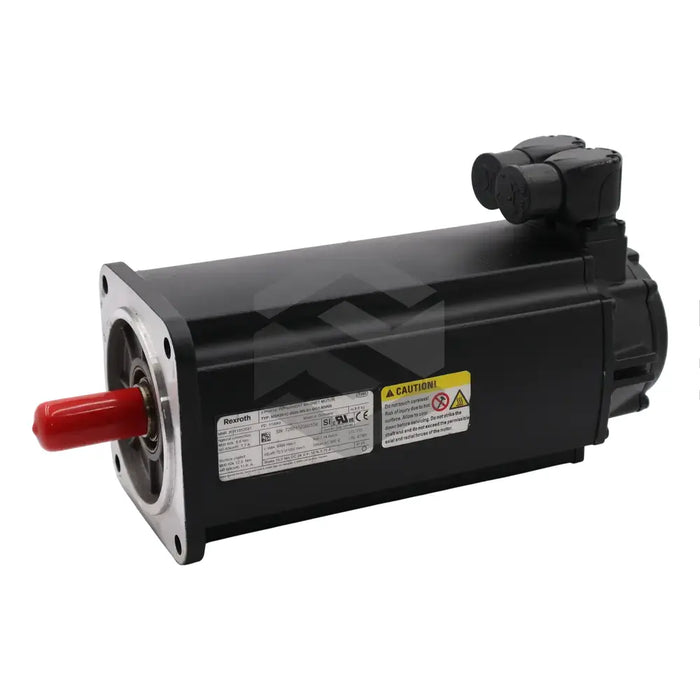

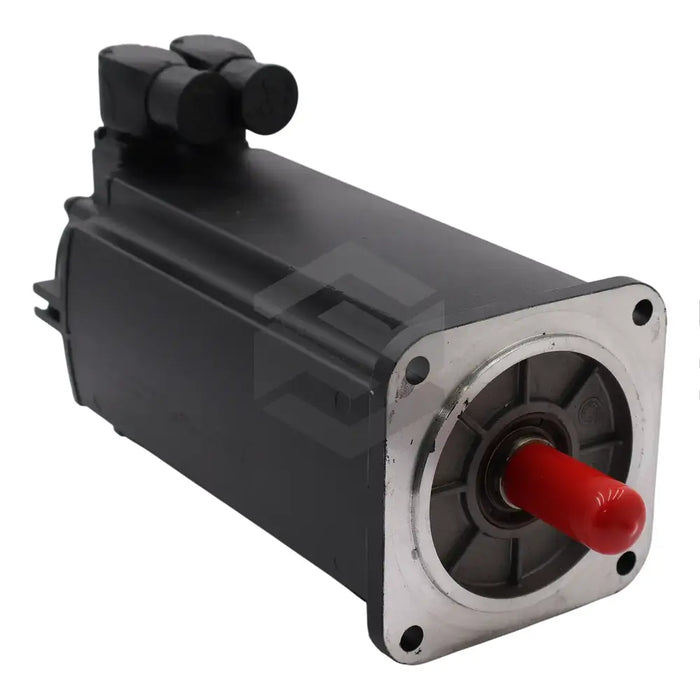

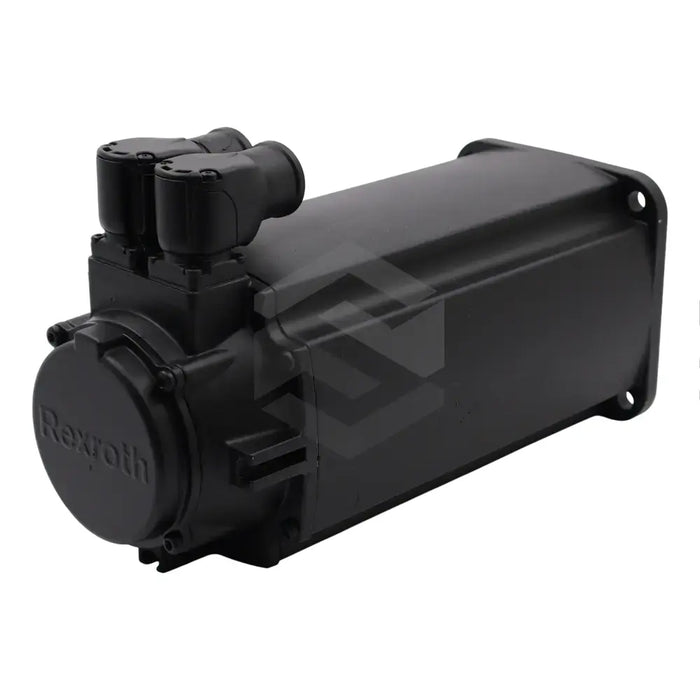

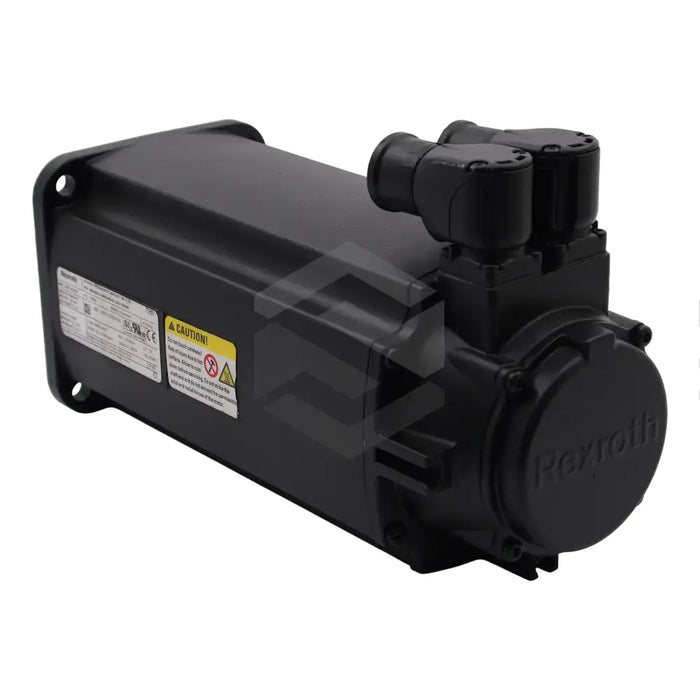

The R911312031 (MSK061C-0600-NN-S1-UG1-NNNN), crafted by Bosch Rexroth Indramat, is a robust motor that belongs to the prestigious IntraDyn S series. With a maximum speed of 6,000RPM and torque able to reach up to 32Nm, the unit proves itself powerfully efficient. This motor also includes an IP65 degree of protection, thus adding an extra layer of safety during operation. Not only is it secure, but it's also a somewhat quiet unit, with the sound levels capped at 75dB[A].
This variant of the MSK061C motor comes equipped with a single-turn optical encoder, delivering accurate, indirect recording within one mechanical rotation. It communicates the rotor's position data to the drive controller with exceptional precision. Take note of the electrically released holding brake, designed to maintain axis stability when the controller is switched off. The R911312031 (MSK061C-0600-NN-S1-UG1-NNNN) features a standard shaft with a sealing ring, and the lubrication supplied should last for the product's life span. The MSK061C motor employs a natural convection cooling system, gradually dissipating heat into the surrounding environment. To ensure effective heat dissipation, maintain cleanliness both at the sealing point and of the motor overall.
