R911312060

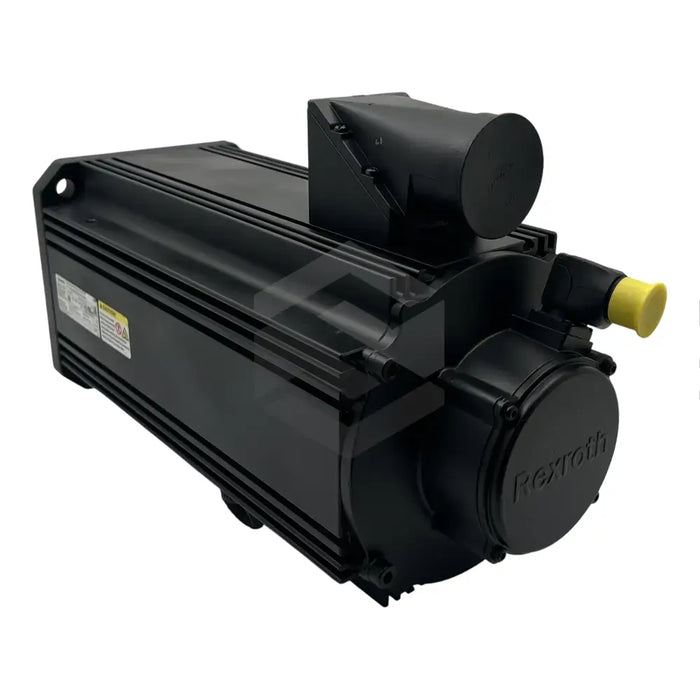

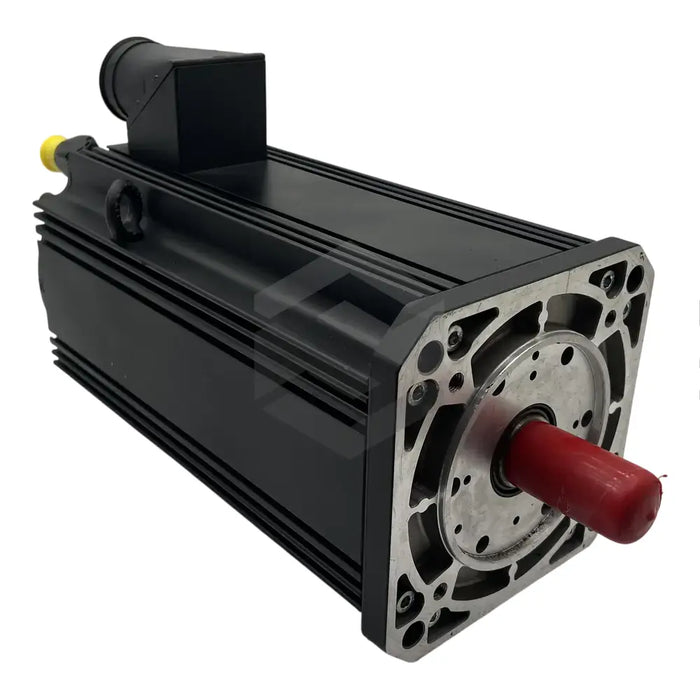

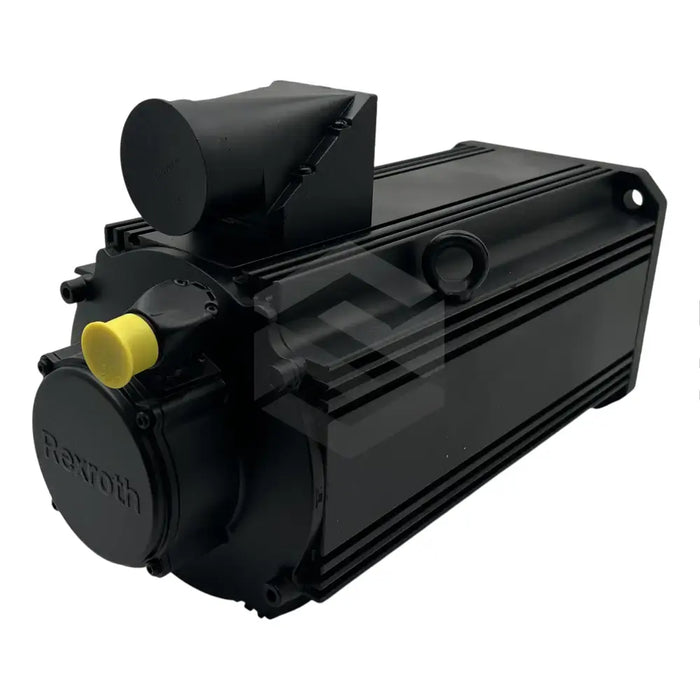

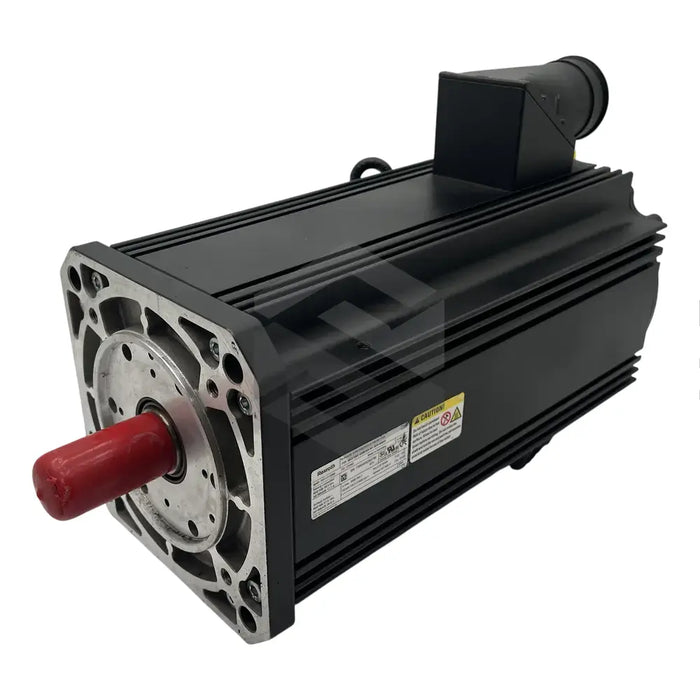

The product in focus, R911312060 (MSK100C-0200-NN-M1-BP0-NNNN), is an exceptional electric motor engineered by Bosch Rexroth Indramat. Part of the acclaimed MSK motor series, it boasts extraordinary features that differentiate it from its siblings in the series. The R911312060 (MSK100C-0200-NN-M1-BP0-NNNN) utilizes a multi-turn encoder system for accurate position tracking, 60K housing and 100K winding temperature models for managing technical data, and a robust output shaft with plain bearings for attachment to the target machine. Additionally, it can handle a maximum current of 79.7A and torque of 148.0Nm, with optimal performance in environmental conditions ranging from 0°c to 40°c at altitudes from 0m to 1,000m above sea level.
Befitting its advanced design, the R911312060 (MSK100C-0200-NN-M1-BP0-NNNN) includes a holding brake that is electrically discharged at 72Nm of torque, providing protection during emergency situations. Its protective structure is well-regulated under the IP65 standard, ensuring resistance against contacts, dust, and water. Further, its thermal management includes a natural convection cooling system and a thermal overload regulator integrated with a temperature sensor. For enhanced protection in demanding environments, users can deploy additional fan units for extra cooling, and air sealing connections to shield against liquids and dust. Notably, these sealing connections must be kept away from regular contact with gearbox lubricants to prevent damage to the seal. The load limit should also be observed to maintain the longevity of the shaft, bearings, and the motor itself.
