R911313838

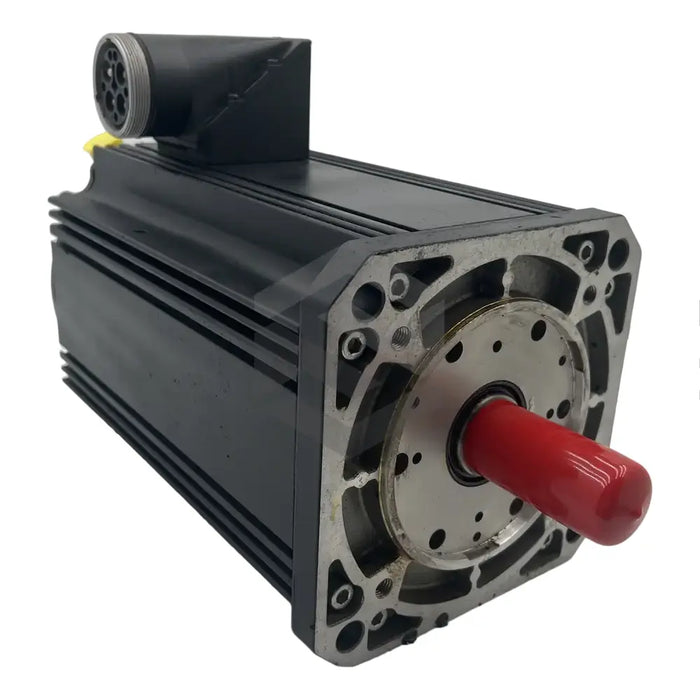

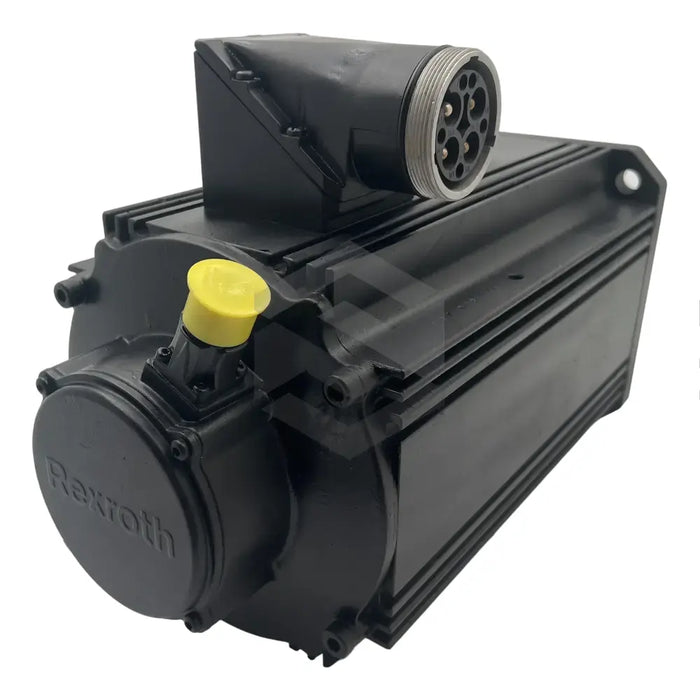

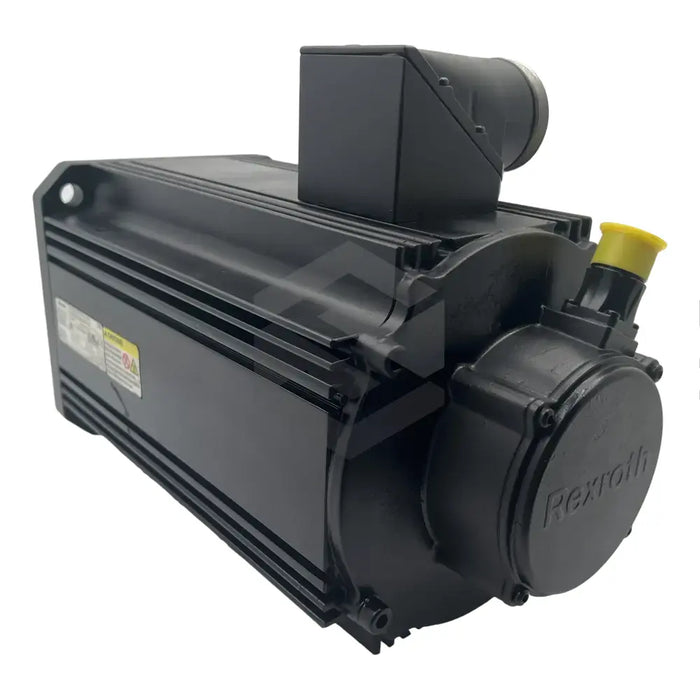

The R911313838 (MSK100B-0450-NN-S2-BG0-RNNN) synchronous servomotor is a high-quality product from Bosch Rexroth Indramat, exceptional for its enhanced concentricity quality. Without a holding brake, this motor does experience radial and axial forces during operation. Incorrectly fitting gearboxes for transmission could lead to explosive consequences. The device's torque reduces by about 20%-30% once transmissions get attached. For power and encoder connection, the servomotor employs circular connectors. Installation is easy and quick, assuming the manufacturer's pre-made cables are used. Its power connector, placed on the B side, and a terminal on the flange facilitates an equipotential bonding connection.
The ambient installation’s maximum height can go up to 1000m above sea level. It operates under a 3K4 climatic category as per DIN EN 60721-3-3 specifications and provides an axial load of 10m/s2. The motor is subjected to vibrations in the form of sinusoidal oscillations when at rest. With a correct cable socket connection, it offers IP 67 protection. Installable in any orientation, the servomotor has a black prime coat (RAL 9005) on its housing and comes with a one-year backup support. Special note: the motor possesses a plain, smooth shaft and a radial shaft sealing ring, along with bearings expected to last over 30,000 hours following ISO 281 parameters. The axial forces complied with the manufacturer's limit specifications, while the acting radial force should never exceed the allowable limit.
