R911313975

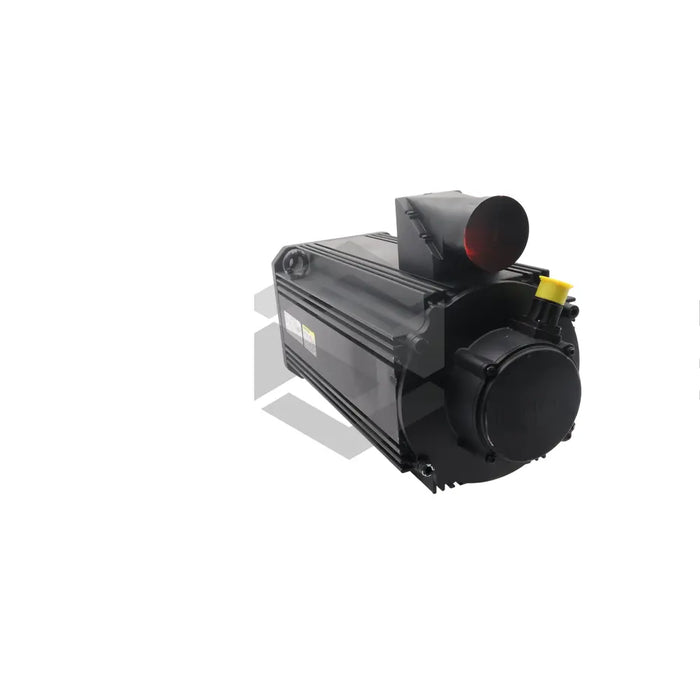

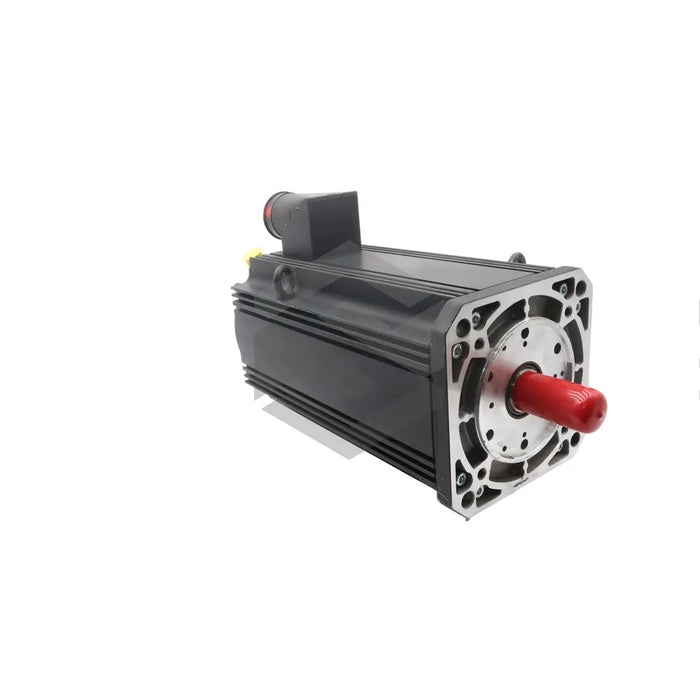

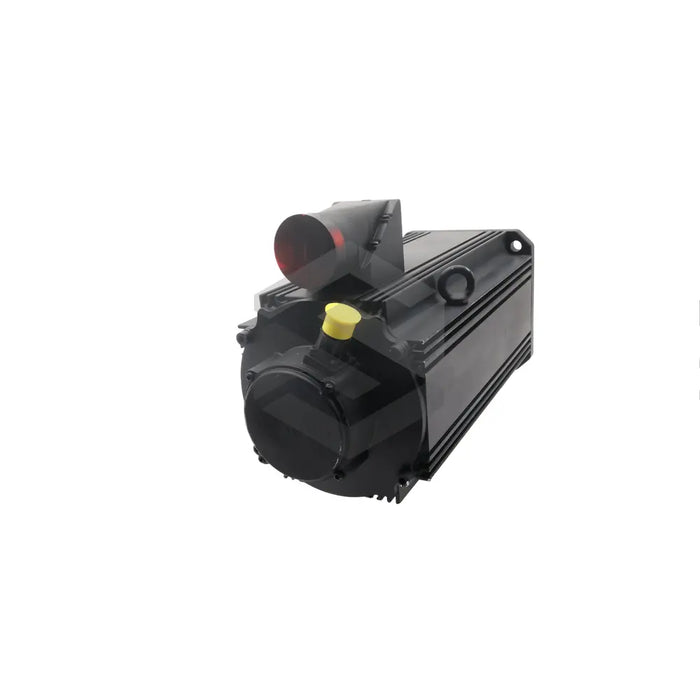

Produced by Bosch Rexroth Indramat, the R911313975 (MSK100C-0200-NN-S1-BP0-NNNN) is a remarkable electrical motor from the MSK series. This motor varies from others in the series due to its specific features which contribute to its overall efficiency and performance.
Its special features include a multi-turn encoder system for position recording and systems for accurately managing technical data, such as 60K housing and 100K winding temperature models. In addition, this motor utilizes bearings with a plain shaft, for output purposes, operating at a maximum current of 79.7A and maximum torque of 148.0Nm. Its operating conditions range from 0°c to 40°c at elevations between 0m and 1,000m above sea level.
The R911313975 (MSK100C-0200-NN-S1-BP0-NNNN) motor further improves safety with an electrically released holding brake rated for 72Nm of torque. Its design adheres to the IP65 standard for protection against dust, water, and contacts. To manage heat, the motor employs a natural convection cooling system and features a thermal overload regulator. Extra protection can be achieved through optional fan units and air sealing connections, which guard against dust and liquids, extending the motor’s life under harsh conditions. It is recommended that users avoid contact between sealing connections and gear box lubricants, and not to exceed the load limit to maintain the longevity of the shaft, bearings, and overall motor.
