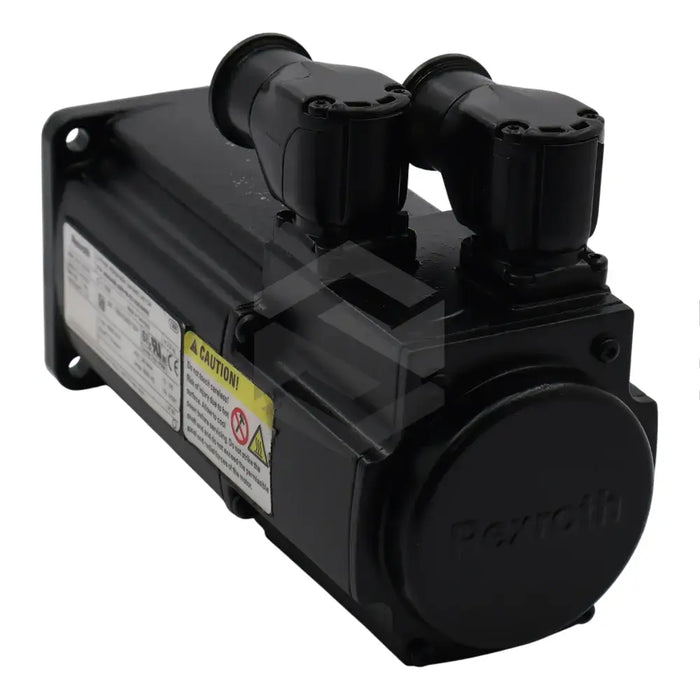

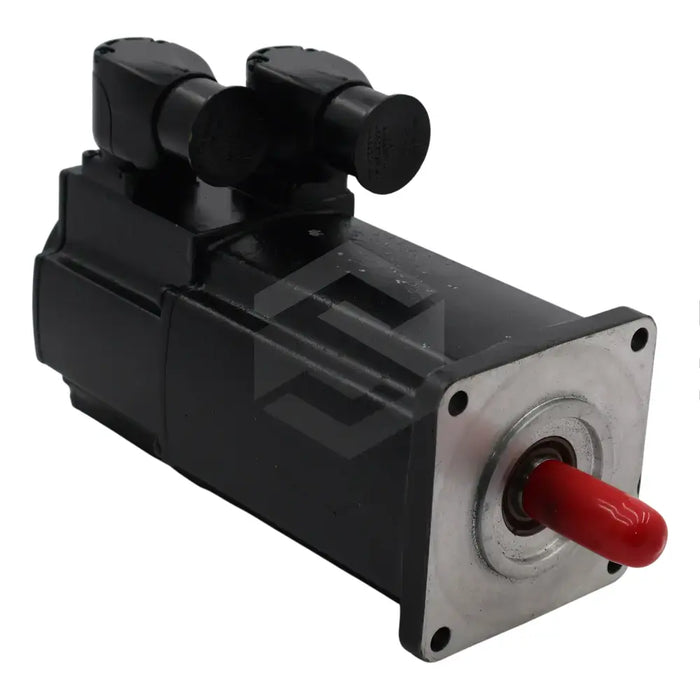

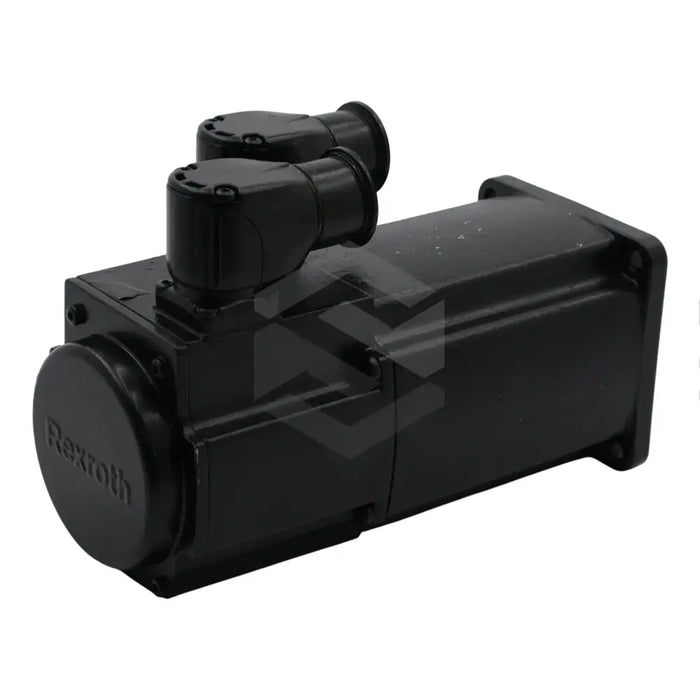

R911314802
The Bosch Rexroth Indramat's R911314802 (MSK040B-0600-NN-M1-UG1-NSNN) is a top-tier servo motor. It features an integrated holding brake that produces 4 Nm torque, runs at 24 Volts DC and 0.5 Amps current, with a peak disconnection time of 35 milliseconds and a peak connection time of 25 milliseconds. The motor's holding brake, which is electrically released type, halts the motor movement until the supply voltage is restored. The optical encoder of the motor touts 128 signal periods, Hiperface support, multiturn absolute design, and 4096 recognizable rotations. It ensures system accuracy of 120 angular seconds, a max speed of 9000 RPM, a max current consumption of 60 milliamps, and a supply voltage between 7 and 12 Volts. The 240-degree rotatable connector and smooth shaft with sealing ring further enhance motor operation. The motor’s cooling needs are met through natural convection.
The R911314802 (MSK040B-0600-NN-M1-UG1-NSNN) motor weighs 2.8 kilograms and is protected by a high-class IP65 rating in compliance with EN 60034-5 standards, safeguarding it from dust and low-pressure water jets from any angle. This robust protection, courtesy of shaft seals and a sealed motor enclosure, allows for closer installation to machinery, yielding considerable space and cost savings. Operating at a max rated speed of 7500 RPM, the motor delivers continuous and peak torque ratings of 1.7 Nm and 5.1 Nm for the 60 K condition, and 1.9 Nm and 5.1 Nm for the 100 K condition. Its four-pole paired structure boasts a winding inductance of 35.4 millihenry.
