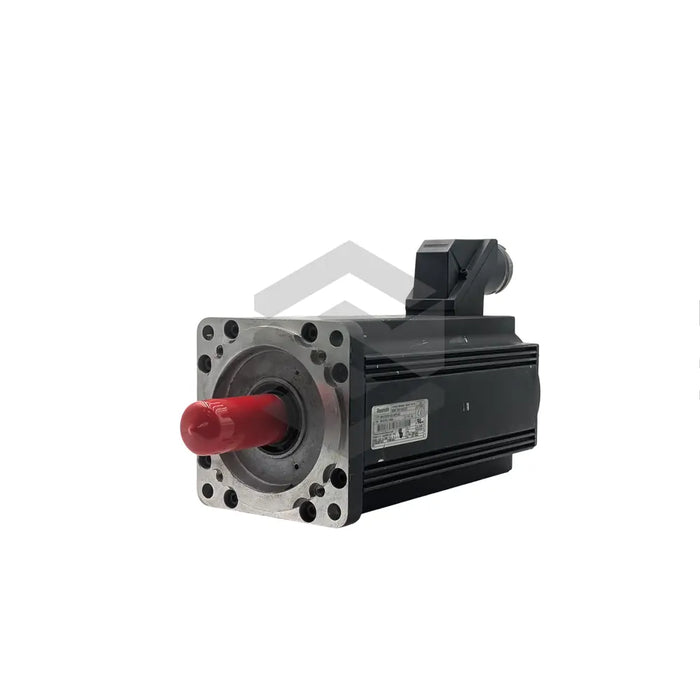

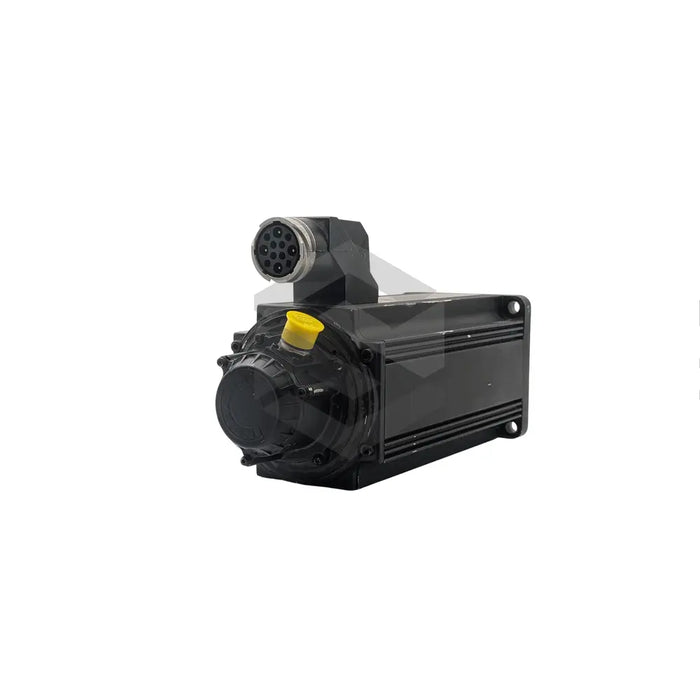

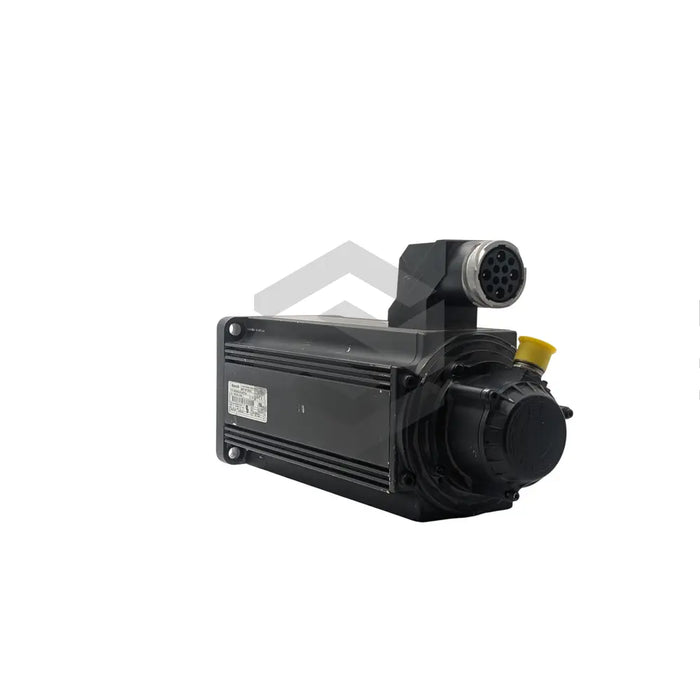

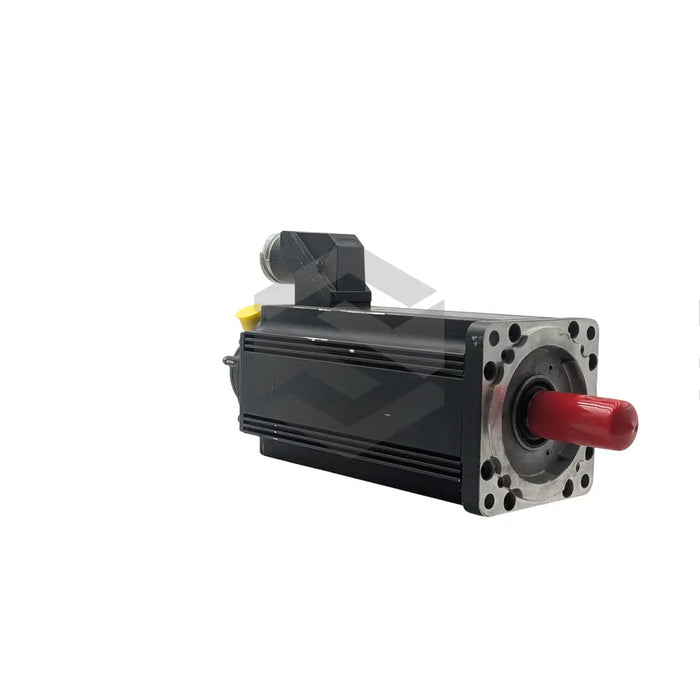

The R911315211 (MHD093B-058-PP1-RN) is a servo motor crafted by Bosch Rexroth Indramat. This robust motor is particularly effective in automation systems and finds a wide range of applications in industries such as Machine tools, Printing, Paper Handling, Automation, Packaging, and Food Processing. Some of the defining traits of the R911315211 (MHD093B-058-PP1-RN) are its maintenance-free operation thanks to its brushless design and the use of bearings with lifetime grease lubrication, and also its capacity to continually perform start-stop operations with high repeat frequencies due to electronic commutation. As a specialized machine part, its installation and maintenance necessitates expert intervention and strict adherence to safety regulations to avoid accidents or damage. Only trained and qualified personnel should be allowed to operate or work around this equipment.
The specifics of the R911315211 (MHD093B-058-PP1-RN) include a 140 or 150 mm flange size and a 130 mm centering diameter. It has distinguished torque capabilities of 33.3 Nm as standing torque and 24.7 Nm as rated torque. The servo motor also sports a digital servo feedback with integrated multiturn absolute encoder for absolute position detection (more than 4096 revolutions). The servo motor comes with a shaft featuring a keyway and a holding brake. The R911315211 (MHD093B-058-PP1-RN) has a power connector situated to the right and a liquid cooling housing. Boasting an IP65 protection rating, the motor should be operated within a temperature range of 0 to 40°C.
30 Day Warranty
Technical Specifications
