R911315381

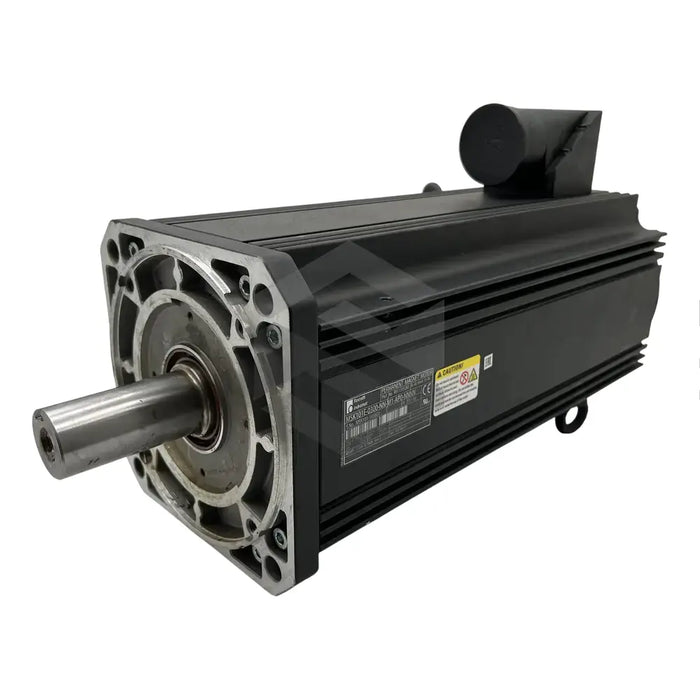

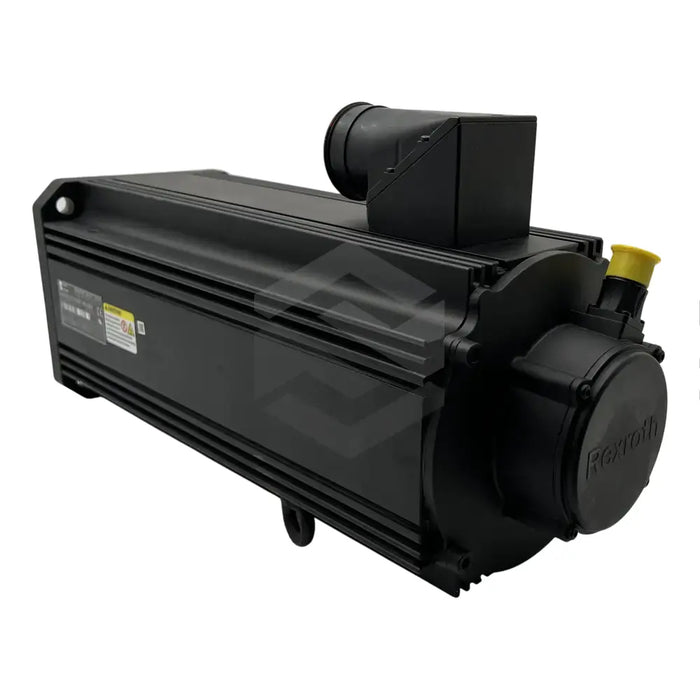

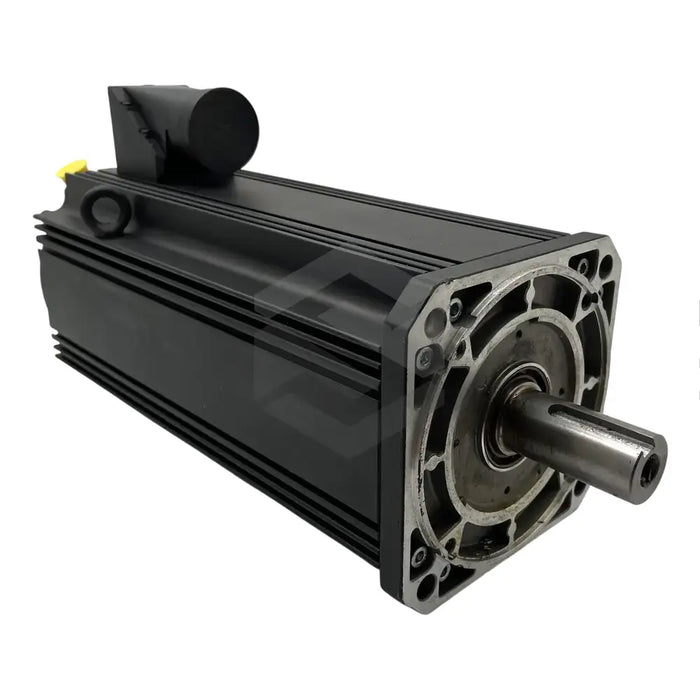

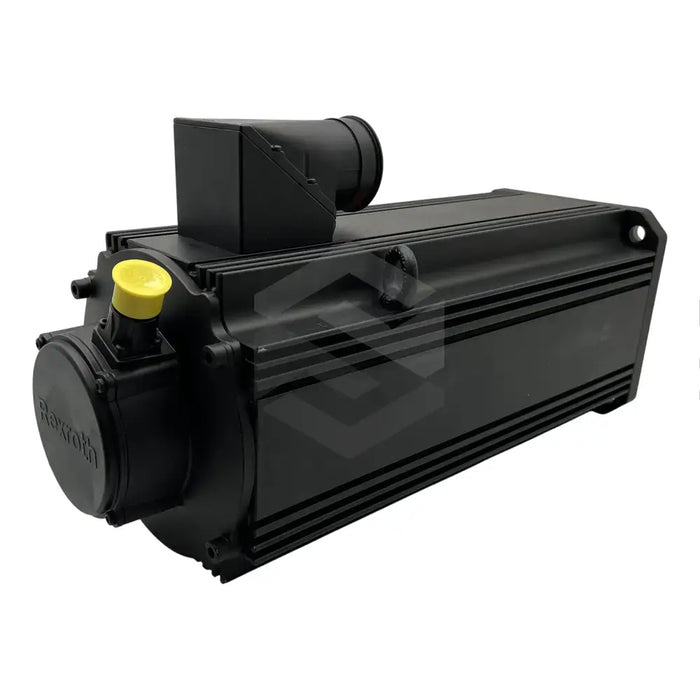

The R911315381 (MSK101E-0300-NN-M1-AP0-NNNN) synchronous servo motor, crafted by Bosch Rexroth Indramat, forms part of their IndraDyn S series. These servo motors are renowned for their superior torque production, high-speed capacity, precision through advanced optical encoder systems, and IP65 protection class. This line of motors poses a fiscal and convenient solution for automation.
R911315381 (MSK101E-0300-NN-M1-AP0-NNNN) heavyweight model (53.5kg), characteristic of the IndraDyn series, has a frame length of 501mm, shaft length of 80mm, diameter of centering standing at 180mm, and flange size of 192mm. This large-sized servo motor provides 70Nm of continuous torque at standstill, which can surge to an impressive 231Nm under intermittent duty. Although the motor lacks a holding brake, it follows the DIN 6885-1 shaft design, incorporating keyways and shaft sealing rings. Further, it has a '0300' winding that allows a peak current of 187.4A and sustained current of 41.6A at standstill. Its speed is capped at 4,600min-1. Equipped with a Hiperface multi-turn encoder, the R911315381 (MSK101E-0300-NN-M1-AP0-NNNN) ensures outstanding closed-loop system performance. Cooling relies on natural convection, and its heat tolerance is pegged at 155℃.
