R911315631
Original price
$16,077.71
-
Original price
$16,077.71
Original price
$16,077.71
$16,077.71
-
$16,077.71
Current price
$16,077.71

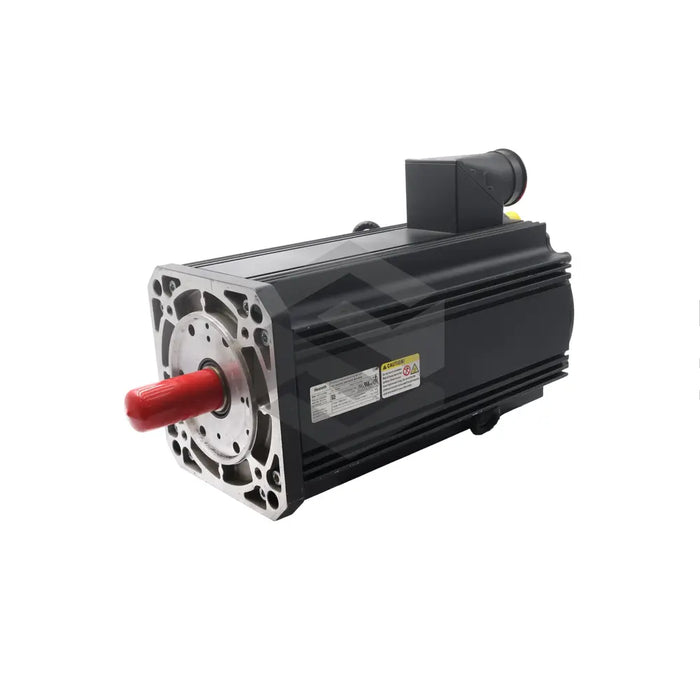

The R911315631 (MSK100C-0200-NN-M1-AP2-NNNN), manufactured by Bosch Rexroth Indramat, is a versatile, high-performance motor. It features a power connection on the A side of the housing and delivers a constant torque of 38 Nm using 17.7 A of continuous current at 60 K. The model incorporates an output shaft with keyways and is protected with a 40-micron coating of black paint. The MSK100C synchronous motor has a thermal time constant of 90 minutes and demonstrates a continuous torque of 57 Newton-meters. The thermal class is 155 with a peak current draw of 79.7 A and the highest torque output of 148 Nm. With a maximum speed of 3500 rpm, the noise level remains under 75 decibels. The unit is dust and liquid resistant, adhering to IP 65 standards.
The R911315631 (MSK100C-0200-NN-M1-AP2-NNNN) model provides a continuous torque of 43.5 Nm at 100 K while using a constant current of 20.3 A. The motor features a multi-turn hiperface encoder for precise rotor tracking. The operating altitude is 0 to 1,000 meters above sea level. The allowable operating temperature ranges from 0 to +40 degrees Celsius and non-operational temperature ranges from -20 to +80 degrees Celsius. Despite its high torque density, the motor maintains a manageable weight of 45.1 kg. For optimal performance and safety, this motor should only be used with the specified drive controller and listed accessories.
30 Day Warranty
Technical Specifications
Get In Contact
Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204
