R911315705

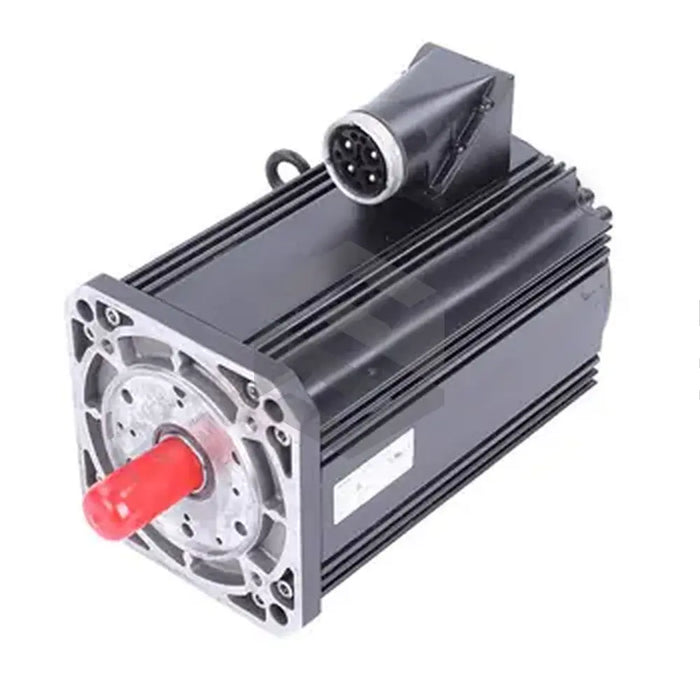

Bosch Rexroth Indramat's R911315705 (MSK100B-0300-NN-M1-AG0-NNNN) is a versatile synchronous servomotor that integrates an optical encoder with a Hiperface interface. It enables both vertical and horizontal installation, though it strictly requires a fluid-free environment around its output shaft to prevent explosion threats due to surface characteristic changes. Notably, this unit offers smooth and quiet operation, thanks to its shaft which is designed according to DIN 3760, Version A specifications. The motor's inbuilt shaft sealing ring is permanently lubricated under normal operating conditions, supporting up to 80N axial force unrestrictedly. The device offers a long-lasting lifespan of its bearings of up to 30,000 hours.
This synchronous servomotor allows the fitting of drive elements like couplings and pinions to its output shaft, only after verifying their compatibility. The pairing should be ideal to avoid exceeding the bearing and shaft load limits. The position of the axis subtly changes when the driving pinions are not attached axially on the machine side. In addition to being RoHS Compliant, the motor also carries features protecting it from irreversible damage due to overloading. The encoder memory registers motor warning and shutdown temperature threshold values. Moreover, this device comes with a year's worth of backup support and can be shipped globally. The storage conditions should prevent direct sunlight and ensure moderate humidity (75% at 30°C). If a motor remains unused for over a year, a thorough check for corrosion-free contacts is recommended before usage.
