R911315713

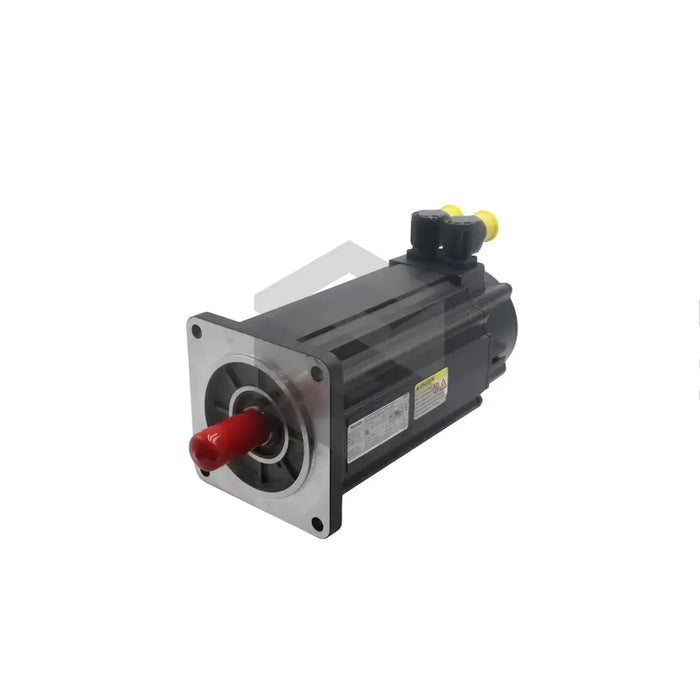

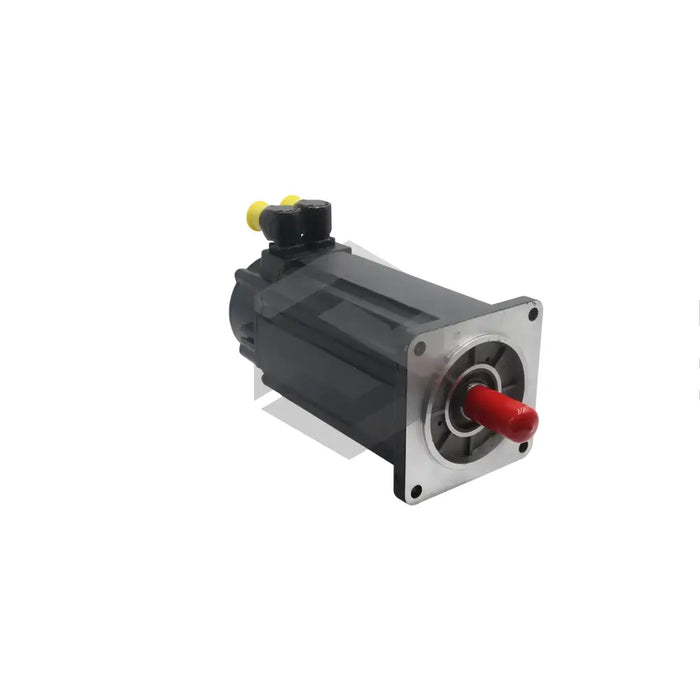

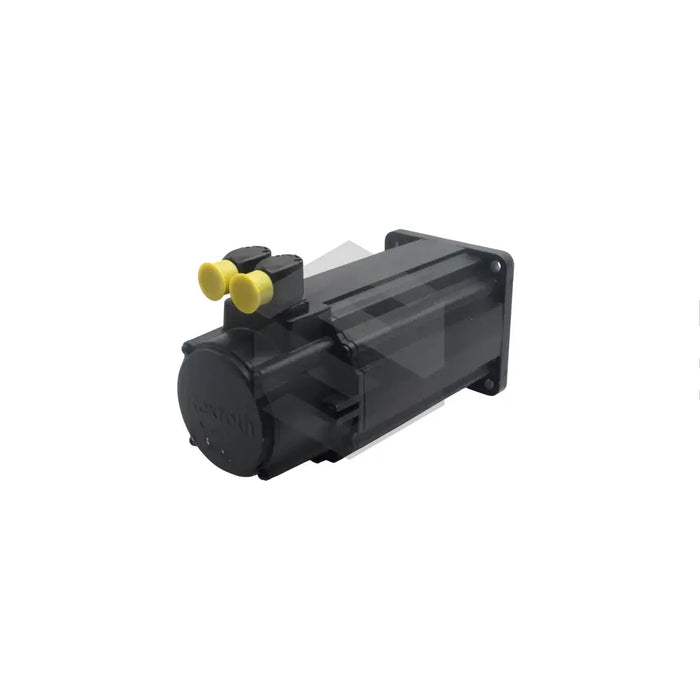

The R911315713 (MSK076C-0450-NN-M1-UG1-NNNN), a product from the well-regarded MSK series of Bosch Rexroth Indramat, boasts a diverse power range and refined size variations. This compact, high-torque density motor is type 76 in size, has a C length, and features a 450 winding code. It also includes a bare shaft with sealing rings and offers a 13.7 A standstill continuous current at 100K. The motor's maximum rated torque is 43.5 Nm, its speed is 5000 rpm, and it includes an 11Nm holding brake.
Notably, the motor's housing promotes natural heat convection and includes an external, 240°-rotatable power connection. An essential feature of the R911315713 (MSK076C-0450-NN-M1-UG1-NNNN) is its multiturn-absolute optical encoder with a hiperface design that provides pinpoint control through a high sampling rate of 128. The motor also features an insulation class of EN 60034-1 – F and IP65 protection level, ensuring enhanced operational safety. All IndraDyn S servomotors from Rexroth are recognized for their compact design, excellent dynamic quality, high torque mass, and exceptional accuracy, courtesy of their advanced optical encoders.
