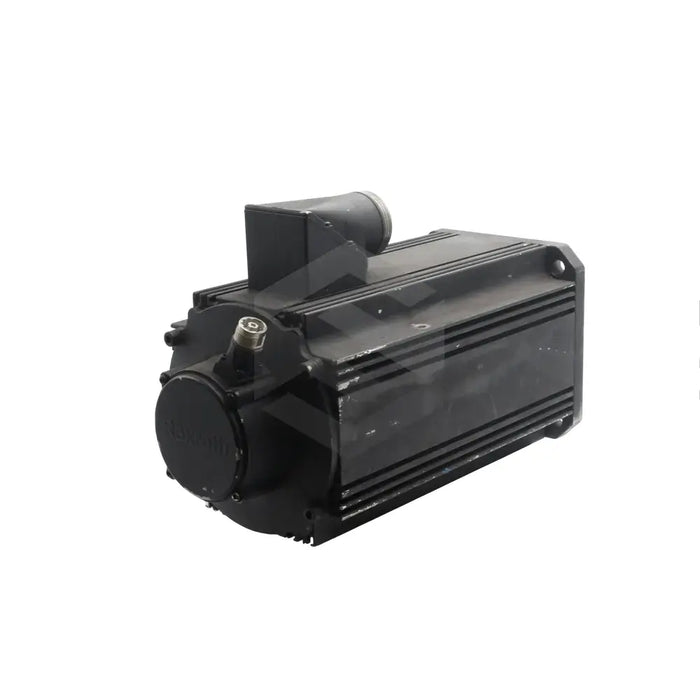

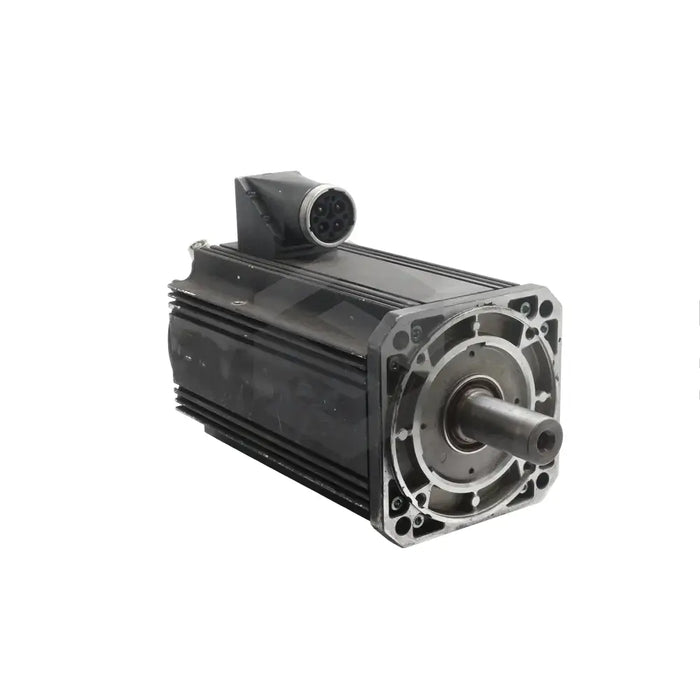

R911315840
The R911315840 (MSK101D-0300-NN-S1-AP2-NNNN), a product of Bosch Rexroth Indramat, is a sophisticated industrial servo motor in the MSK series. With the inclusion of a servo drive controller, this synchronous servo motor operates based on feedback from a sensor which accurately measures shaft speed and torque. These measurements are then relayed to the controller where they are compared to the desired values and modulated accordingly. This model comes with the option of four variants of electrical connection situated on side A of the housing.
The R911315840 (MSK101D-0300-NN-S1-AP2-NNNN) motor comes in standard housing design and boasts of several premium features. These include an integrated encoder, a safety-oriented holding brake, and a main motor shaft equipped with a sealing ring. The optical singleturn encoder supports Hiperface and is rated for 128 signal periods. The holding brake, rated at 70 Nm, ensures that there's no unintended motion from the motor by restricting shaft rotation at the start-up. A standard cooling method of natural convection is employed, and the motor can operate within the temperature range of 0 to 40 degrees Celsius reliably. With an IP rating of 65, the R911315840 (MSK101D-0300-NN-S1-AP2-NNNN) can withstand harsh environmental conditions. Operation of this servo motor should be executed by trained and experienced professionals only.
