R911315878

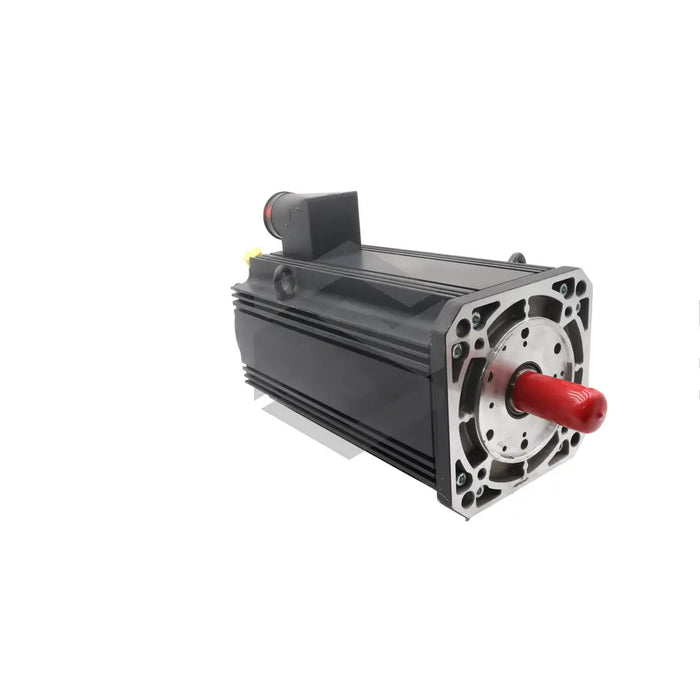

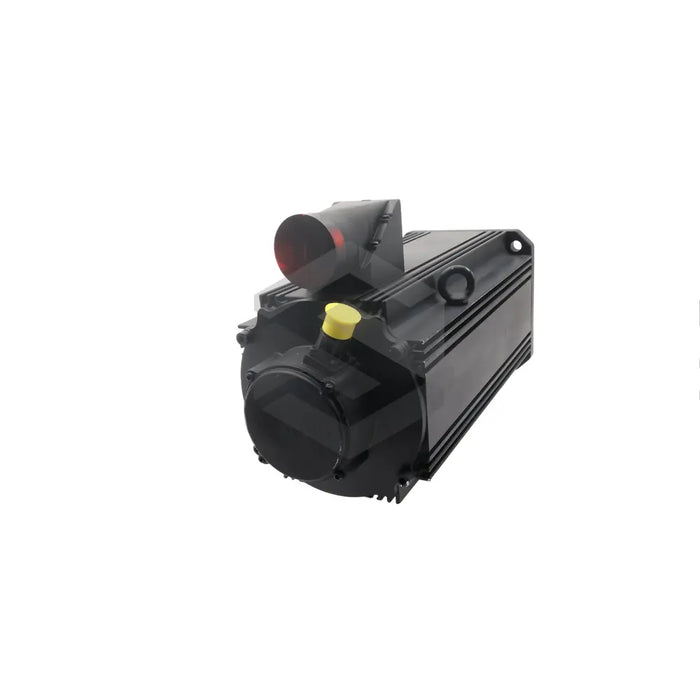

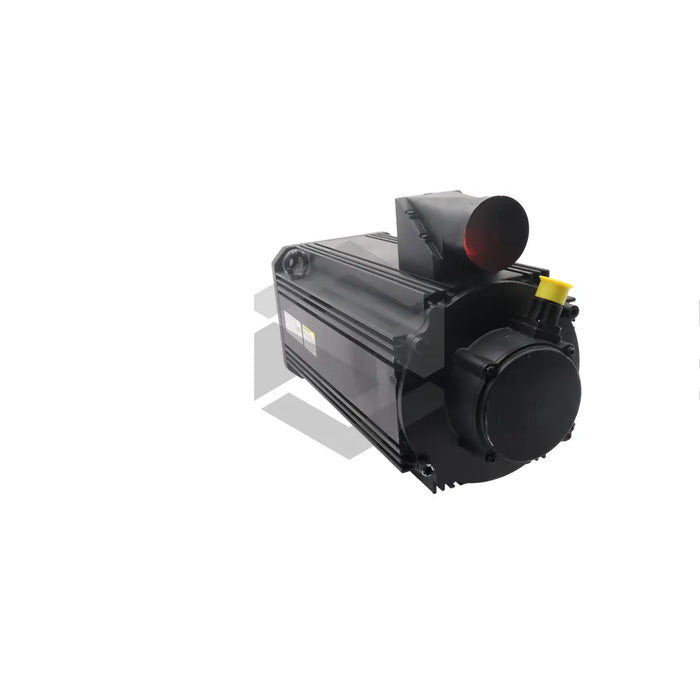

The Bosch Rexroth Indramat R911315878 (MSK100C-0450-NN-M1-BP2-NNNN) module is a supreme-quality product from an extensive range that includes components like synchronous motors, spindle motors, linear motors, and more. Designed to set industry standards for design and performance, this model has a thermal time constant of 90 minutes and an inductance of 1.600 mH. Designed for use within the temperature range of 0 to 40 degrees Celsius, it boasts an insulation class of 155. Primarily utilized in packing machines, machine tools, and food processing equipment, its torque constant is 1.18 Nm/A and the rotor's moment of inertia is 0.02730 kgm2.
The model R911315878 (MSK100C-0450-NN-M1-BP2-NNNN) employs a multiturn hiperface optical encoder to monitor both absolute and relative device positions. At 60 K, it consistently generates 38 Nm of torque using 35.4 A of current, and at 100 K, produces 43.5 Nm of torque while using 43.5 A of current. The module hosts a winding resistance of 0.12 ohms, measures 45.1 kg in weight and features a 4.9 kg holding brake with connection and disconnection times of 53 and 97 milliseconds respectively. It offers IP65 protection, can operate at a maximum speed of 4000 rpm, and has a sealing ring protected output shaft with keyways. Each R911315878 (MSK100C-0450-NN-M1-BP2-NNNN) module undergoes robust testing before shipment to guarantee defect-free functionality.
