R911316056

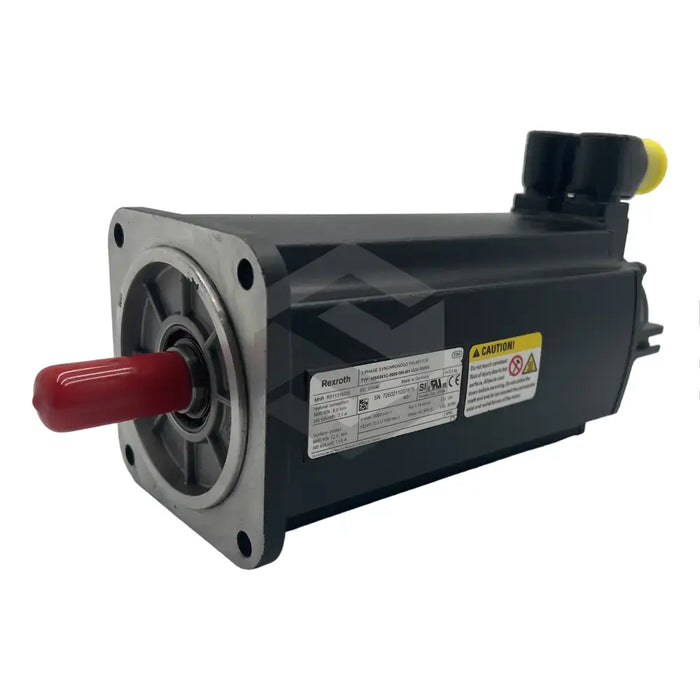

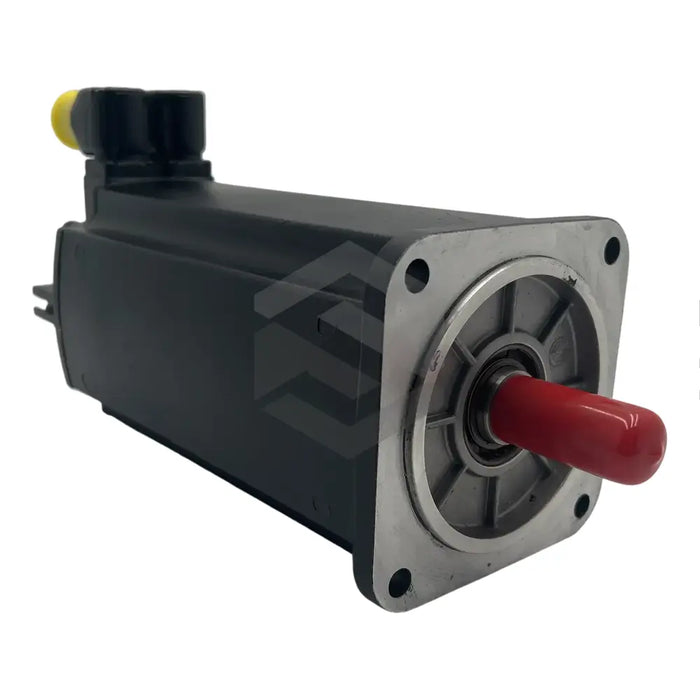

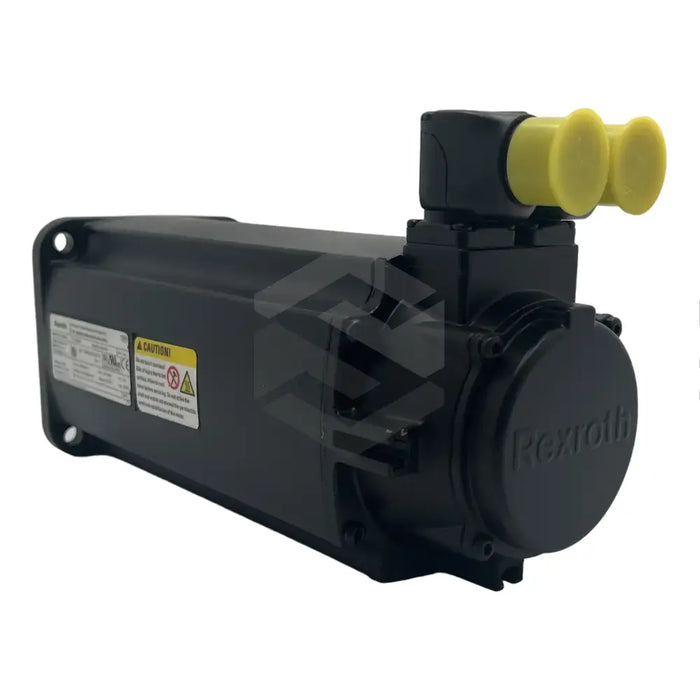

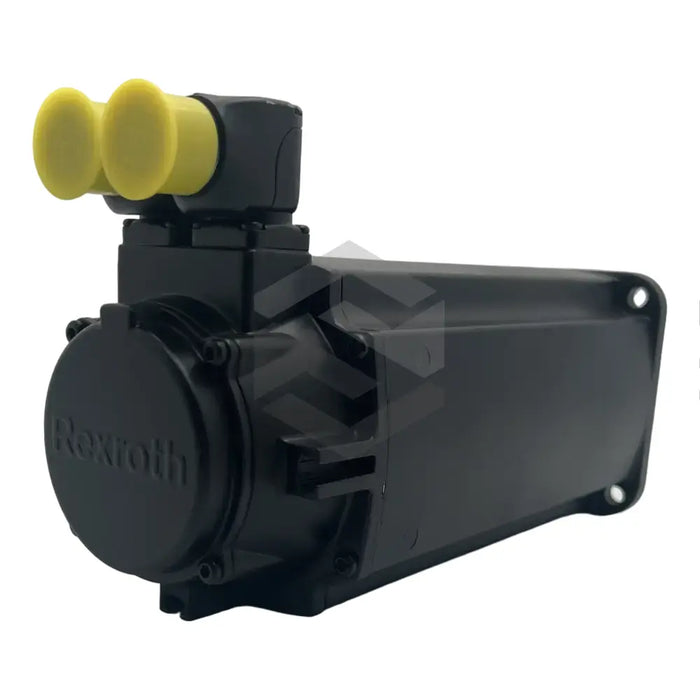

The R911316056 (MSK061C-0600-NN-M1-UG0-NNNN), manufactured by Bosch Rexroth Indramat, is a variant of the MSK061C motors - a product range renowned for its versatility and durability. This particular motor boasts a maximum torque of 32 Nm and a continuous standstill torque of 8 Nm. Despite its power, the R911316056 (MSK061C-0600-NN-M1-UG0-NNNN) remains comparably quiet, producing noises levels under 75 dB[A] during regular operations.
Its advanced features include an optical encoder with an absolute position recording within 4096 motor revolutions and a system accuracy within 80 angular seconds. Even when voltage is turned off, the axis’ absolute position is retained. This version of the MSK061C employs a natural, or passive, convection cooling system to efficiently manage the engine’s temperature. However, it merits mentioning that the effectiveness of this cooling system is significantly influenced by the cleanliness of the motor. The R911316056 (MSK061C-0600-NN-M1-UG0-NNNN) doesn't have a holding brake as per the manufacturer’s specifications. It features a plain shaft with a sealing ring, which, while resistant to chemicals and oils, requires regular cleaning and lubricating to minimise frictional heat.
