R911316146

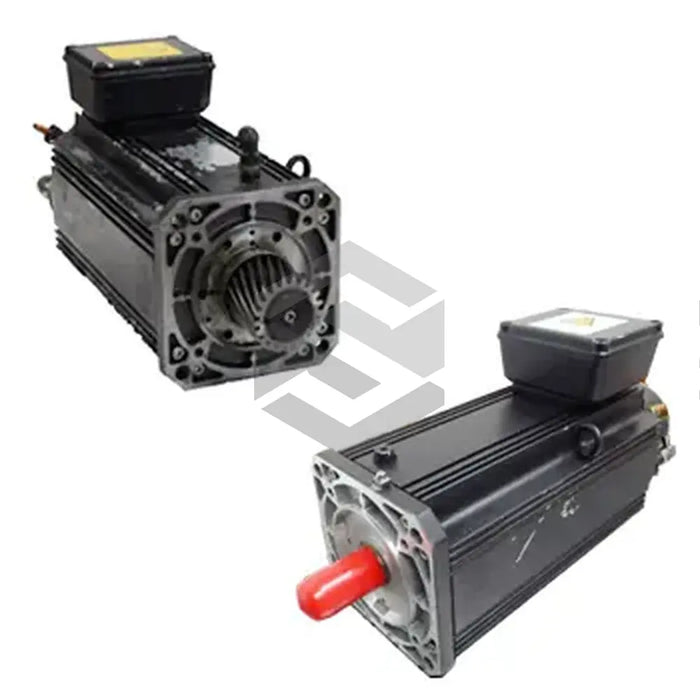

The product in focus is Bosch Rexroth Indramat's R911316146 (MAF160B-0150-FQ-S0-FQ0-35-N1) asynchronous motor from their IndraDyn A Series. Engineered to work with an external cooling system, this motor operates optimally within a coolant temperature range of 10°C to 40°C. The motor requires specific tools for connection, including an adjustable torque screwdriver, wrench sets, and Allen keys. The product comes with a standard one year warranty period. It's essential to inspect mechanical and electrical connections after every 1,000 hours of operation. High temperatures could suggest defective or worn-out bearings.
This model, equipped with 0150 type winding, showcases an IP65 protection rating. With three pole pairs and a single-turn absolute encoder characterized by 512 increments, the model offers an encoder with an impressive +/-0.0167° absolute accuracy. The device also integrates a balanced output shaft with a keyway and 39.3kW rated power output with a speed of 1,500RPM. Installation should take place in de-energized states only. The unit, adhering to DIN ISO 2373 specifications for balancing, features standard bearings with deep-groove ball bearings and should be stored in a clean, dust-free, and dry area. If idle for one to five years, warm up at 1,000RPM for an hour before operational use.
