R911316339

Original price $9,719.50 - Original price $9,719.50
Original price
$9,719.50
$9,719.50 - $9,719.50
Current price $9,719.50
In Stock, Ships Today
Request a quote

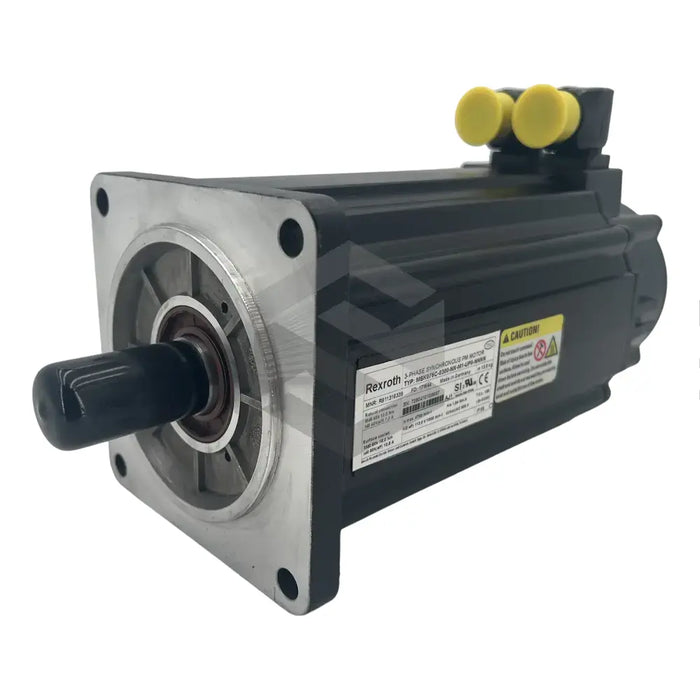

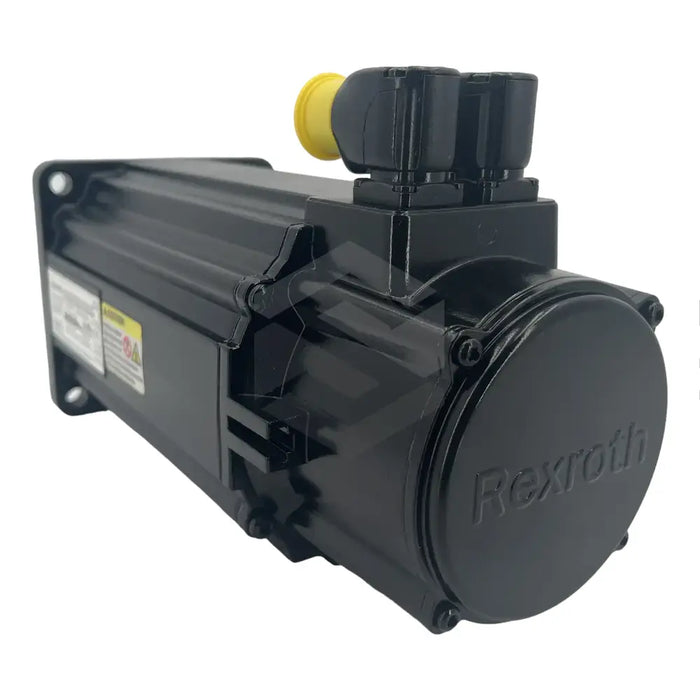

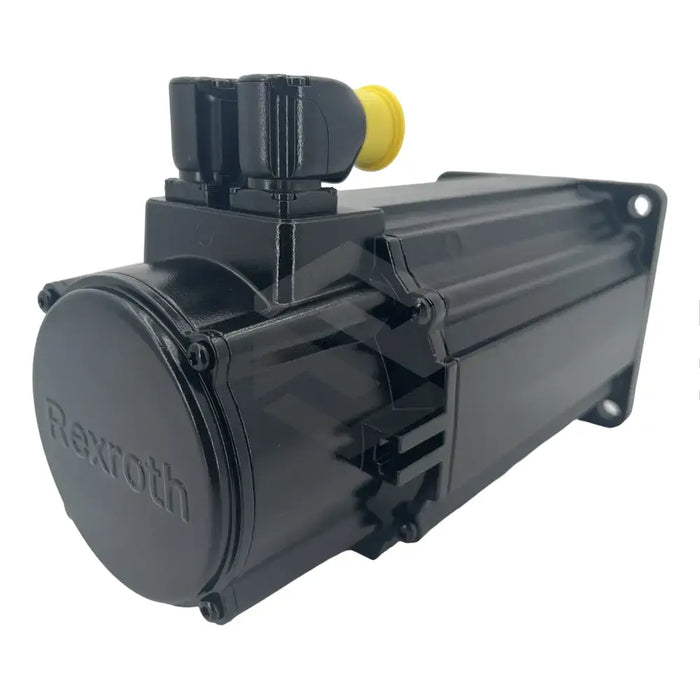

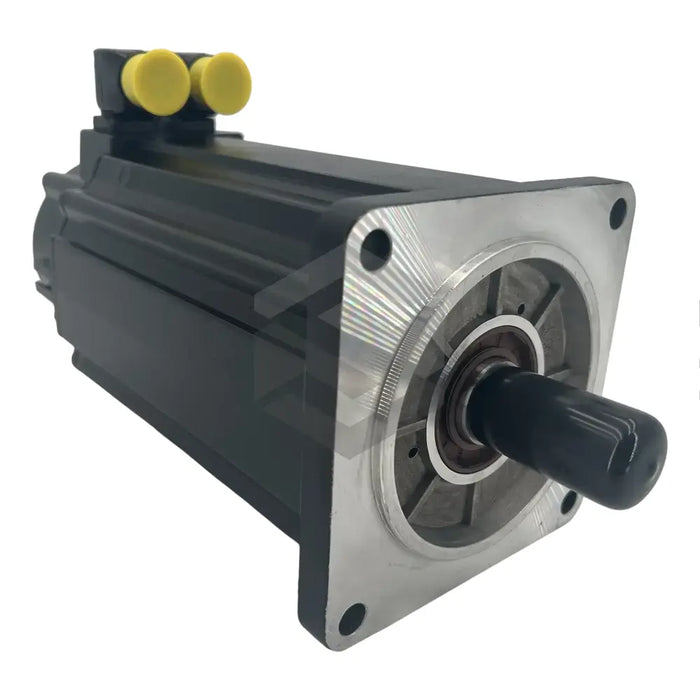

The Bosch Rexroth Indramat R911316339 (MSK076C-0300-NN-M1-UP0-NNNN) is a high-quality, durable synchronous motor, excelling in exceptional performance and longevity. This motor is an integral part of the expansive product line from Rexroth Indramat, which includes various motors, drives, controllers, and power cables. This powerful synchronous motor can be cooled either by 70K or 100K overtemperature. In terms of technical specifics, the R911316339 (MSK076C-0300-NN-M1-UP0-NNNN) synchronous motor displays varying continuous torque and current levels based on overtemperature. At a 60K overtemperature with the motor at a standstill, it delivers a continuous torque of 12 Nm and a continuous current of 7.2 Amps. When overtemperature rises to 100K, the motor's continuous torque increases to 13.5 Nm, and the current to 8.1 Amps. Regardless of overtemperature, the motor maintains maximum torque at 43.5 Nm and a top current of 32.4 Amps. With a winding inductivity of 12.6 mH, a wound resistance of 1.85 Ohms at 20°C and an operation temperature range of 0°C to 40°C, this high-efficiency motor is reliable for industrial use. Additional features include an IP65 protection degree, optional inertia brake, sound pressure lower than 75 dB(A), and a maximum speed of 4700min-1.
30 Day Warranty
Technical Specifications
  • Sound Pressure Level: less than 75 dB(A)
  • Model: MSK076C-0300-NN-M1-UP0-NNNN
  • Maximum Permissible Speed: 4700min-1
  • Cooling System: 70K or 100K overtemperature
  • Product Type: Synchronous Motors
