R911316420

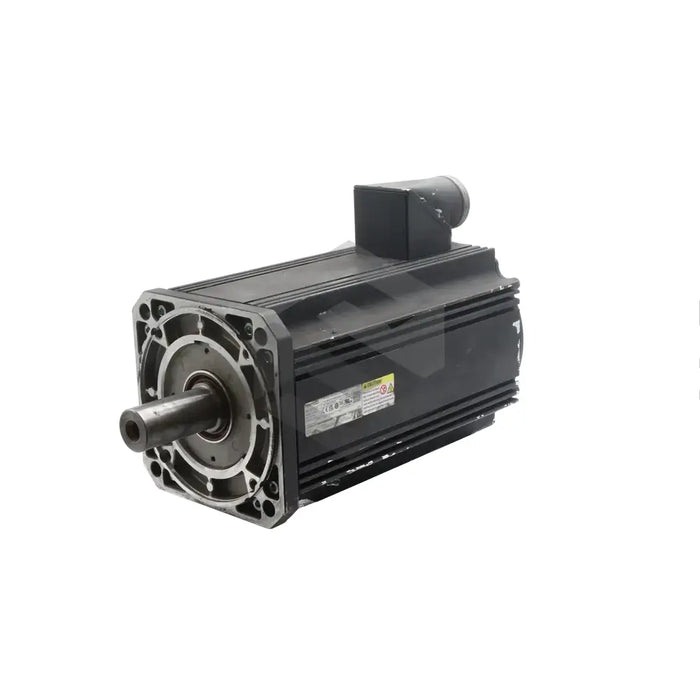

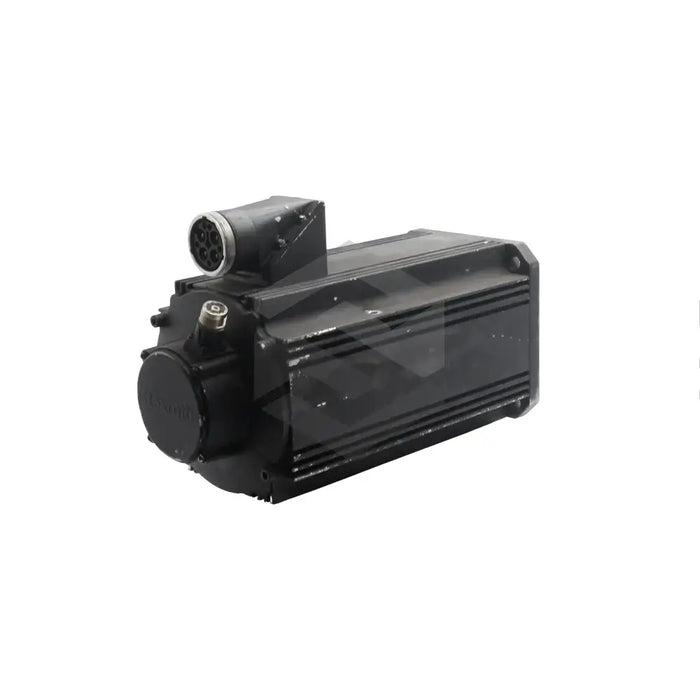

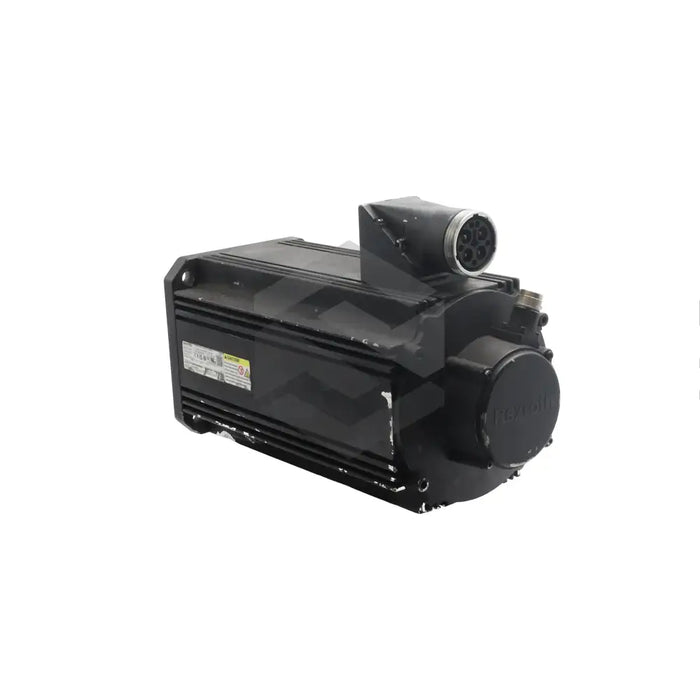

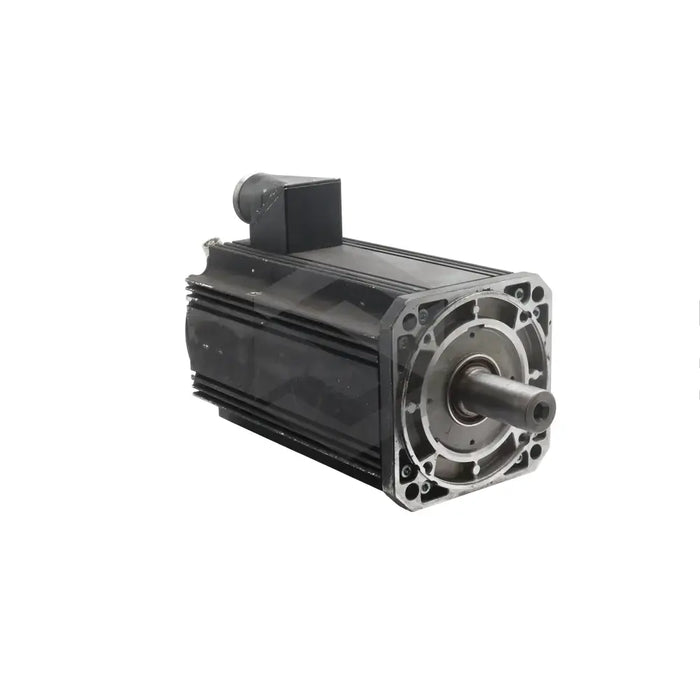

Product R911316420 (MSK101D-0200-NN-S1-BP2-NNNN) is a high-quality servo motor designed by Bosch Rexroth Indramat. Renowned for their versatility, MSK line servo motors excel in various industrial applications such as machine tools, metal forming machines, robotics, and food packaging and processing machines. The R911316420 (MSK101D-0200-NN-S1-BP2-NNNN) is known for its distinctive features like compact build, enhanced torque density, and precise optical encoder systems. The product also comes with multiple additional options to increase usability.
The R911316420 (MSK101D-0200-NN-S1-BP2-NNNN) servo motor boasts natural convection cooling, KTY84 type thermal sensors, and a DIN 6885-1 compliant shaft with a sealing ring per DIN 3760 design A. Cooling takes place due to the temperature differential between the motor and ambient air. The thermal sensors are installed to alert users of potentially harmful temperature thresholds. Its housing, based on the EN 60529 standard, has an IP 65 Ingress Protection, ensuring protection against dust and water sprays. Accurate position detection and speed control are enabled by an optical single-turn encoder. Other prominent specifications include a system accuracy of ±80 angular seconds, optimal functioning in up to 40oC temperature and 95% relative air humidity.
