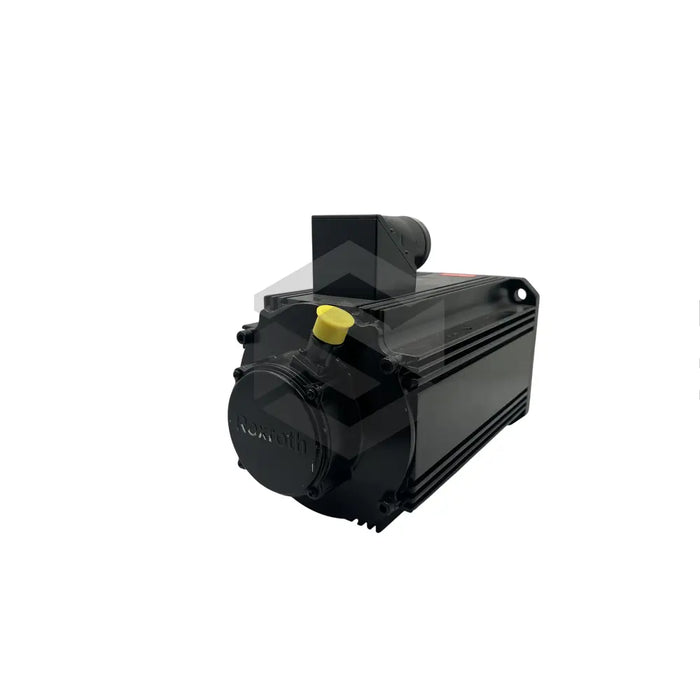

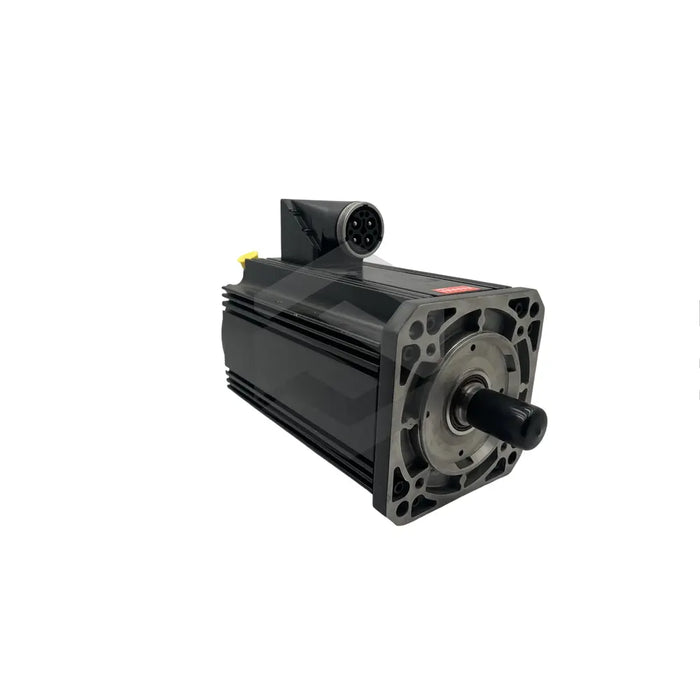

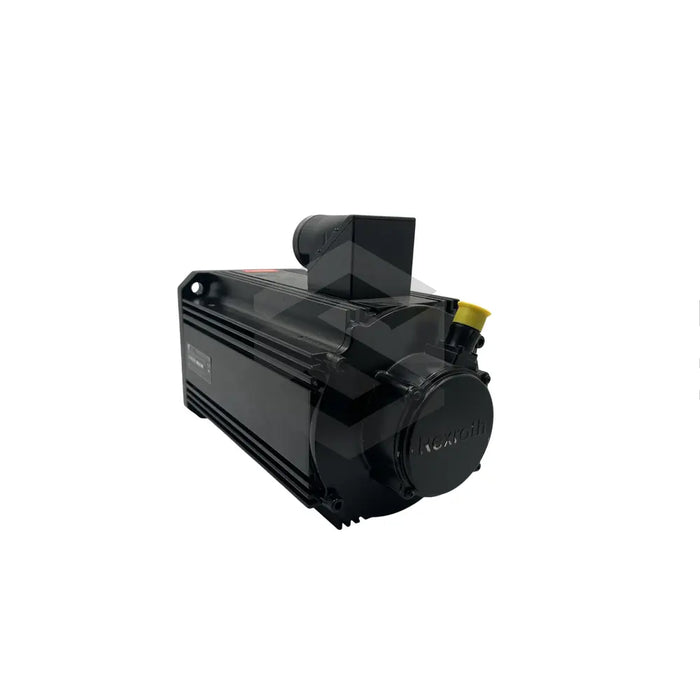

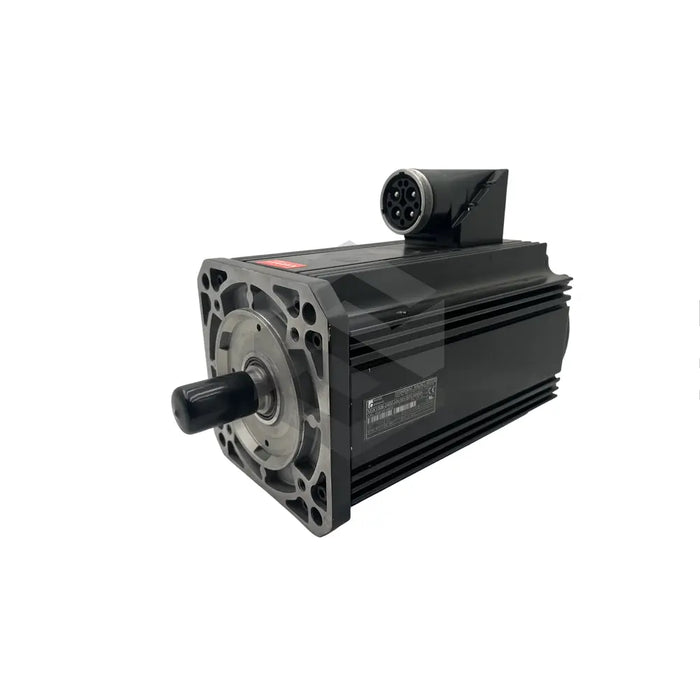

R911316422
The R911316422 (MSK100B-0400-NN-M1-AP0-NNNN) is a leading-edge servo motor within Bosch Rexroth Indramat's MSK series. This compact, efficient motor delivers dynamic, high torque density, particularly in comparison to its size and weight. It also integrates advanced optical encoders to provide high accuracy for varied motion applications.
The specifications include a motor size 100 and a winding code of 400, alongside natural convection cooling and a singleturn Hiperface encoder with 128 increments. Connections are situated on side A, and the plain shaft includes a standard shaft sealing ring. This design aids in the maintenance of bearings and lubricants throughout operation. The motor features an impressive 32Nm holding brake that engages upon electric current application. Another advantage of the R911316422 (MSK100B-0400-NN-M1-AP0-NNNN) is its quiet operation at high speeds, producing sound levels lower than 75dB. Essential parameters include a continuous current of 23.7A at standstill, maximum torque of 102.0Nm, maximum current of 106.7A, and 4 pole pairs. A substantial safety feature of this motor is its IP65 protection category, safeguarding it against both fluid and solid particles. Compatible holding brakes for de-energized axial security are the LEM-AB-192N-11-NNNN or the LEM-AB-192N-21-NNNN.
