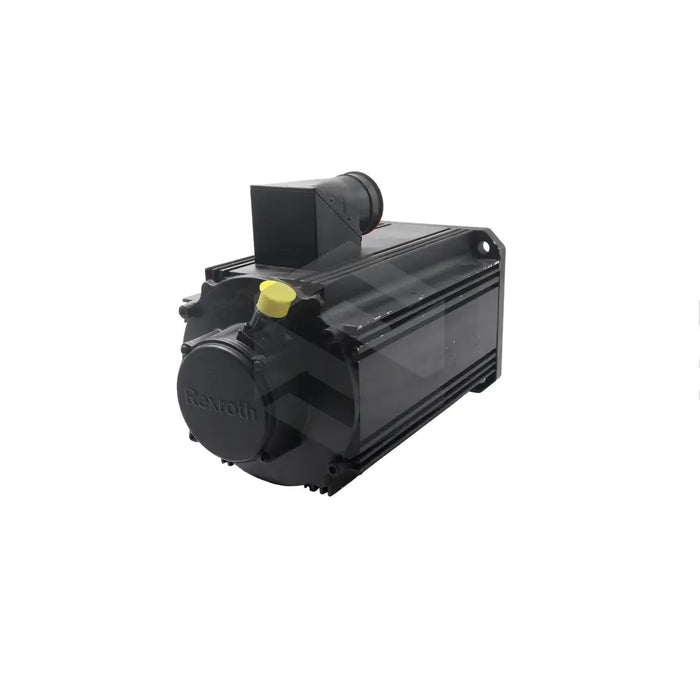

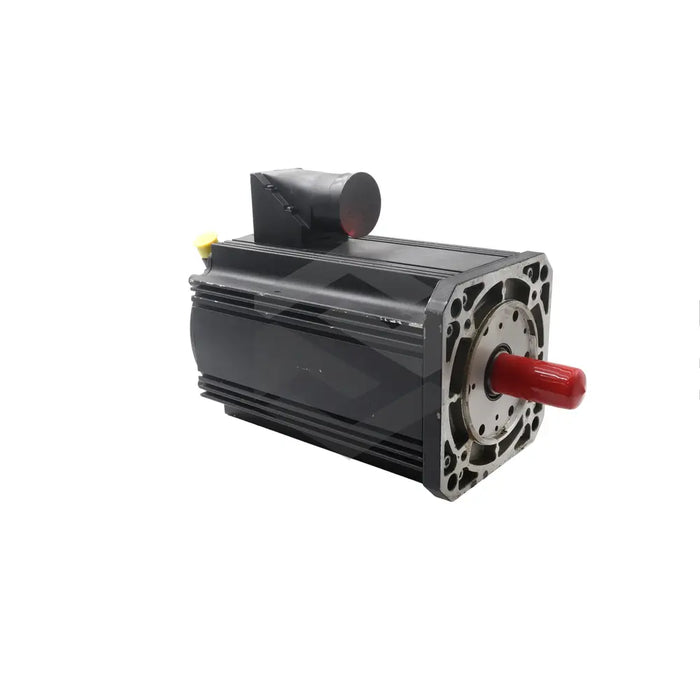

R911316856
The R911316856 (MSK100B-0300-NN-M1-BP1-NNNN) is a pioneering servo motor in Bosch Rexroth Indramat's MSK series, expertly designed to cater to diverse motion applications. Suitable for numerous machines such as machine tools and paper processing machines, this compact yet powerful device prioritizes precision with its modern technical build. Key product specifications include a motor size of 100, a B motor length, and a 300-winding code. It implements a natural convection cooling system, along with an optical encoder that is singleturn Hiperface with 128 increments. This high-powered performance is packaged in an electrical connector, B-side.
The practicalities of the R911316856 (MSK100B-0300-NN-M1-BP1-NNNN) are accentuated with its sealing ring and keyway per DIN 6885-1, both solidifying protection for the shaft against spraying fluids. While this model does not house a holding brake or additional designs, it showcases its versatility in configuration, compatibility with various motors, and enhanced precision with the electronic encoder system. With an operational temperature range of 0 to 40 degrees and installation altitude up to 1000 meters above sea level, it exhibits a high torque-to-inertia ratio and less than 75dB quiet operation at high speeds. Key parameters include a maximum torque of 102.0Nm, four pole pairs, a maximum speed of 4750min-1, and a maximum current of 78.3A.
