R911317328

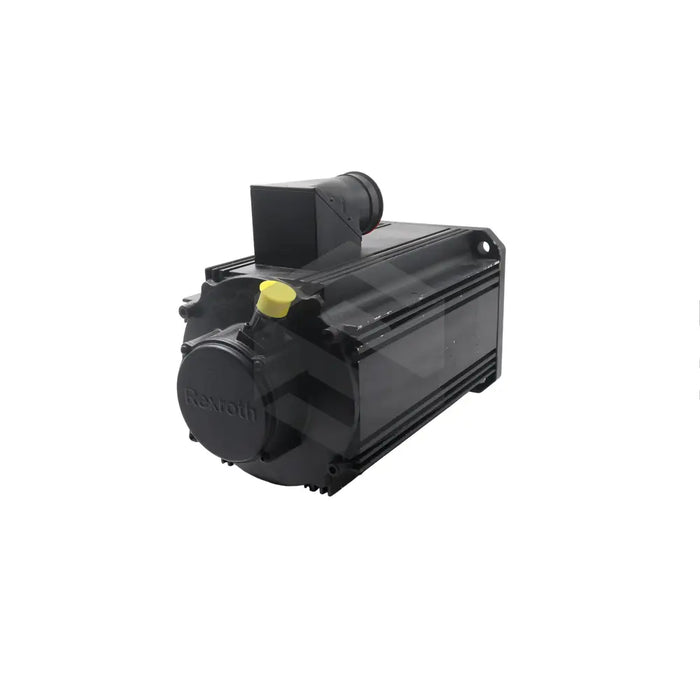

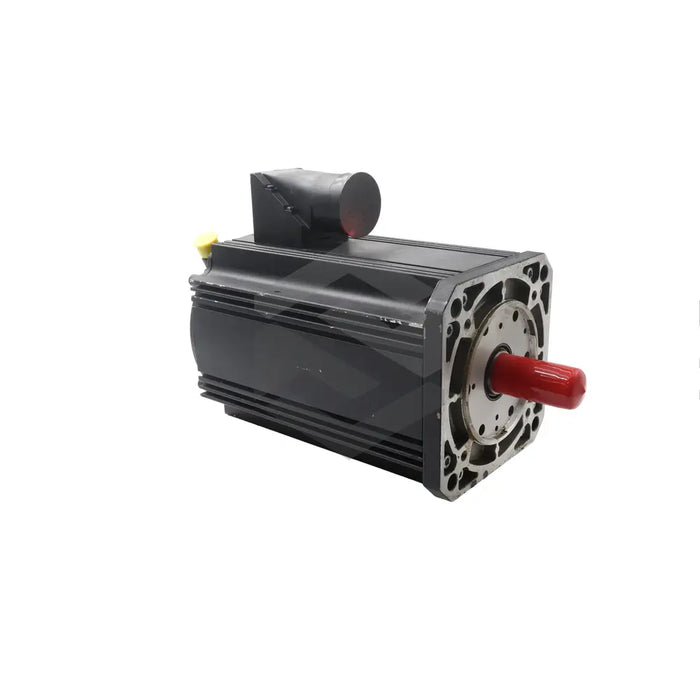

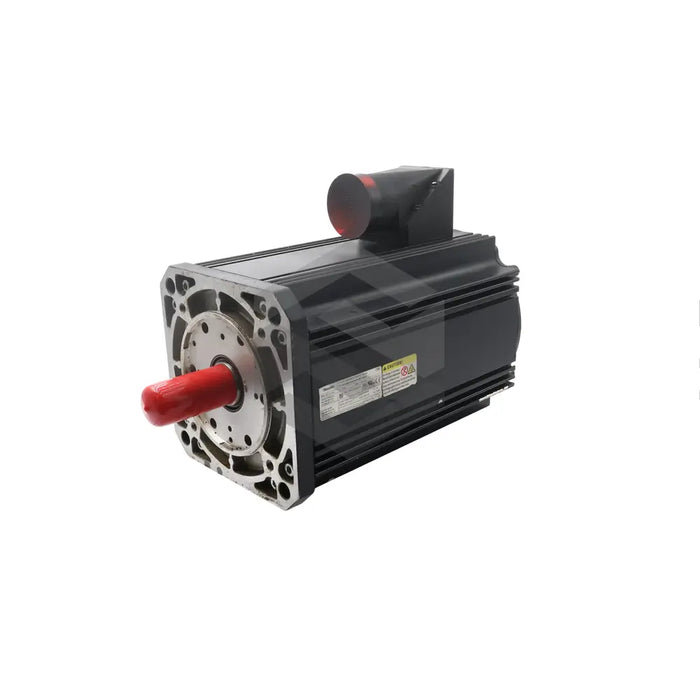

The R911317328 (MSK100B-0200-NN-S1-BP1-NNNN), a high-performing synchronous motor, is produced by Bosch Rexroth Indramat. This particular model is part of the IndraDyn S MSK series, renowned for its high torque density, compact structure, and impressive precision. The rotor boasts a low moment of inertia, with no brake attached.
This motor is securely insulated within an aluminum or steel flange, depending on temperature conditions. It is designed to be attached using an M12 x 40 screw and 87Nm torque. The motor demonstrates a consistent torque of 28Nm and a steady current of 14.7A when idle. It operates efficiently at roughly 40°C, with a winding resistance and winding inductivity of 0.58 Ohms and 7,600mH respectively. Other prominent features include a B length with four pole pairs, size of 100, winding code of 0200, and a natural convection cooling mode. Despite its impressive speed reaching up to 4100 min-1, the sound pressure levels are kept under 75dBA, prioritizing a quiet operation. Furthermore, the unit includes a DIN 6885-1 compliant shaft, sealing ring, and an electrically releasable holding brake for increased safety. It's important to note that this motor is not suitable for extremely high temperatures or significant temperature variations. Rexroth's IndraDyn S MSK series motor is ideal for use as a servo, main linear, or rotary drive and can also serve as a kit motor.
