sub_series image of a R911317329

R911317329

by Bosch Rexroth Indramat
$16,881.60 - $16,881.60
$16,881.60
$16,881.60 - $16,881.60
$16,881.60
Available, Shipping Varies

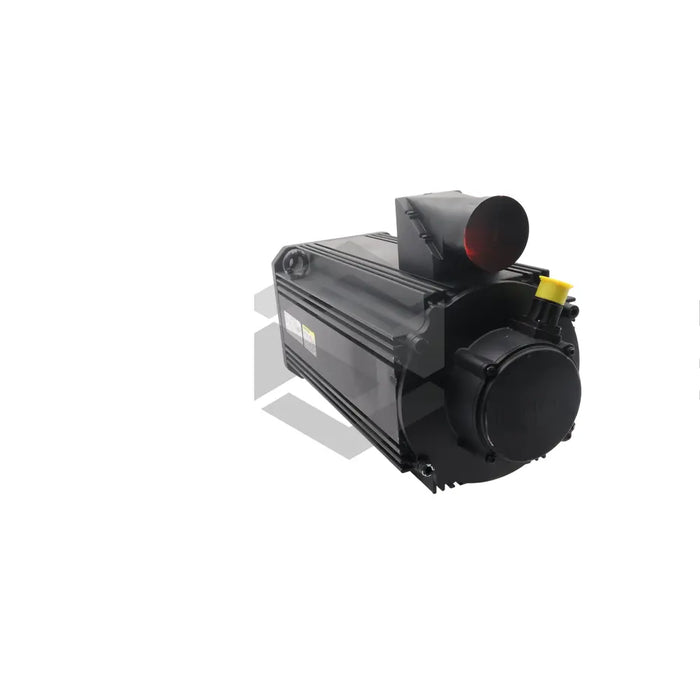

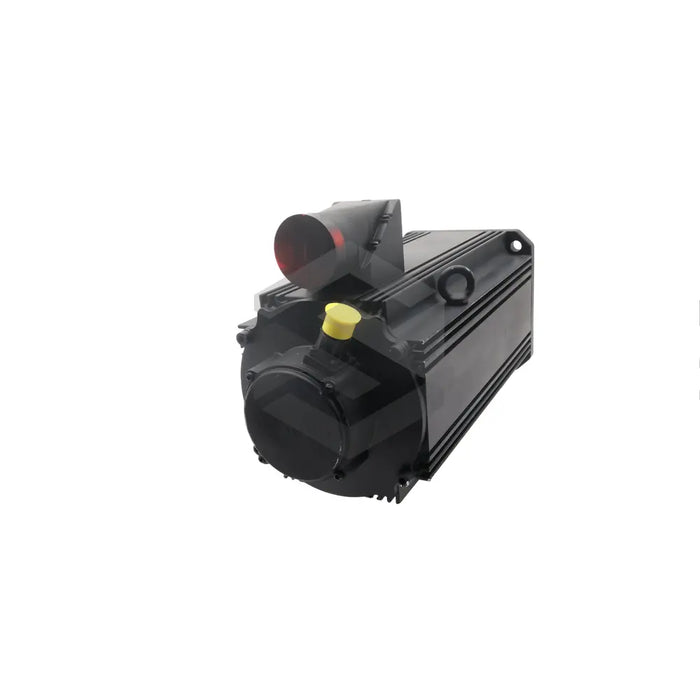

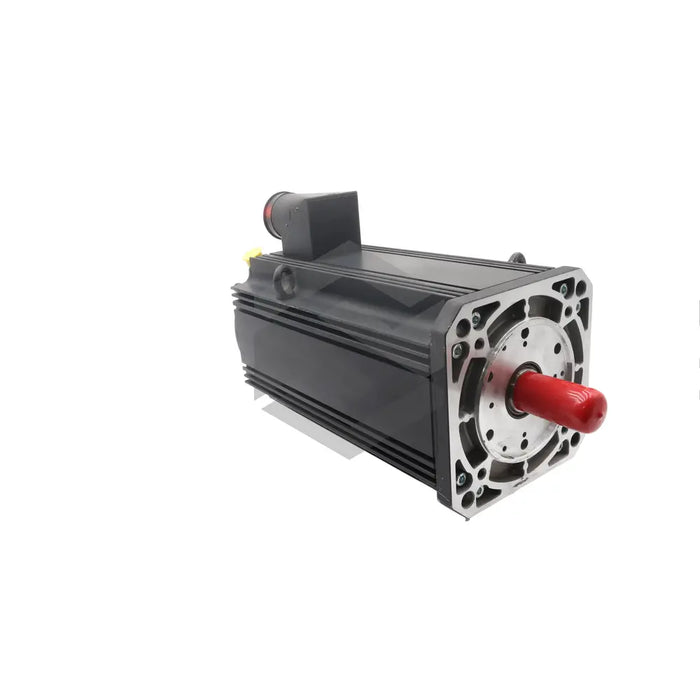

The R911317329 (MSK100C-0200-NN-S1-BP2-NNNN), a digital servo motor from Bosch Rexroth Indramat, comes with a standard housing and a built-in optical singleturn encoder that supports the Hiperface protocol, rated for 128 signal periods. Its function is to gauge motor speed and torque, and transmit these measurements to the motor controller through a feedback cable. The motor controller also facilitates motor power via a separate power cable. On this model, the motor power connector is located on side B of the motor. Available in both a plain shaft or a shaft with a keyway, the R911317329 (MSK100C-0200-NN-S1-BP2-NNNN) model presents a shaft with a keyway that includes a sealing ring. The motor has an IP65 protection rating, meaning it can withstand adverse conditions. The motor has an integrated 24V DC holding brake with a rated torque of 70 Nm designed to halt shaft rotation when idle. For cooling, it employs natural convection, with an option for forced air cooling. The motor functions optimally at ambient temperatures ranging from 0-40°C and speeds up to 3500 RPM whilst producing sound pressure levels within 90 dB. With a thermal class of 155, the motor and brake combined weighs 48.9 kilograms.
30 Day Warranty
Technical Specifications
  • Sound Pressure: Equal to or less than 90 dB
  • Brake Voltage: 24 Volts DC
  • Motor Shaft: Keyway
  • Weight: 48.9 kilograms
  • Power Connector Location: Side B
