R911317371

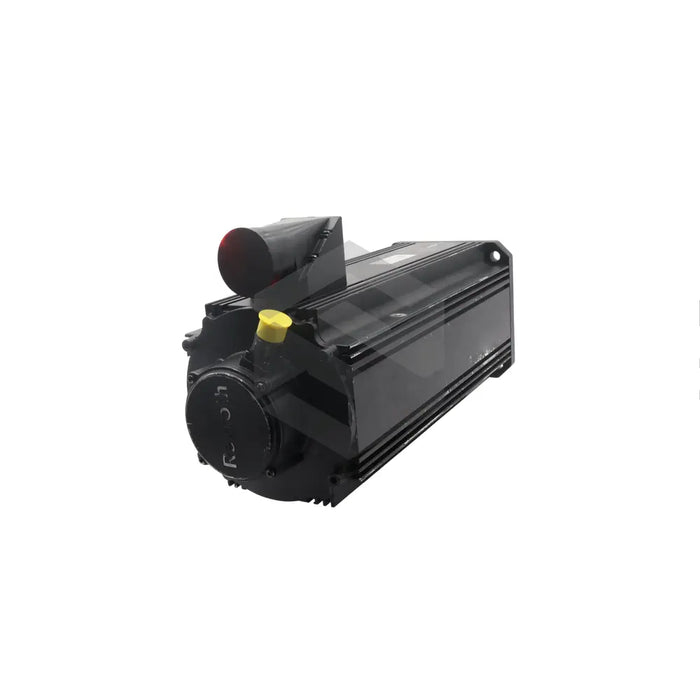

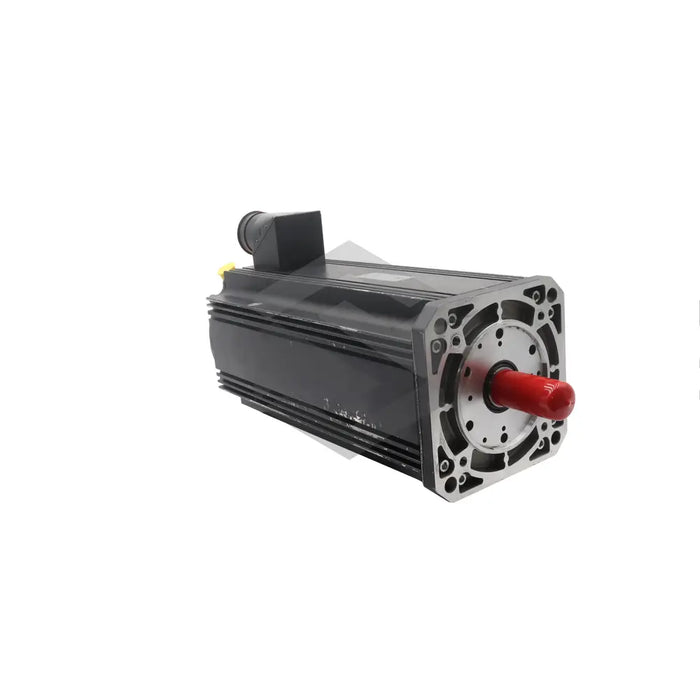

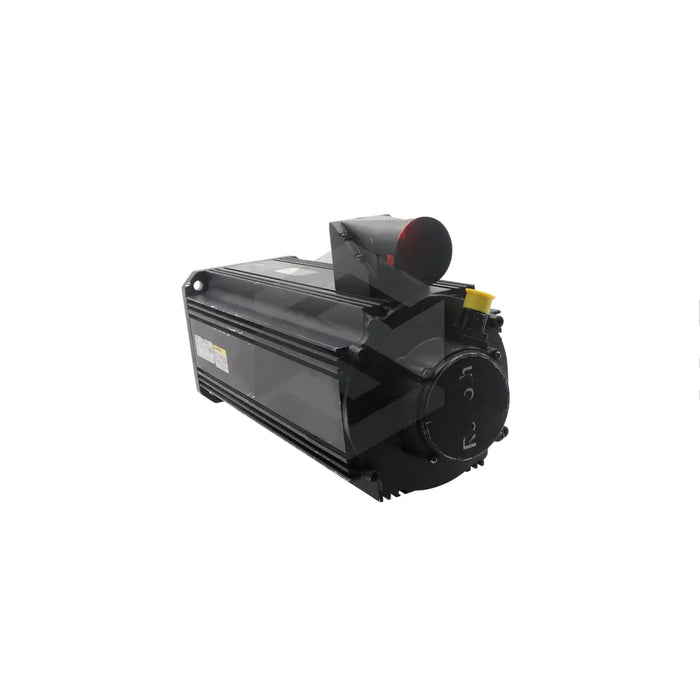

The R911317371 (MSK100D-0300-NN-S2-BP0-RNNN) is an MSK-series synchronous servo motor produced by Bosch Rexroth Indramat. This advanced piece of machinery is designed for more than just standard applications, intended to be customizable for user-specific functionalities. The R911317371 (MSK100D-0300-NN-S2-BP0-RNNN) operates at a max speed of 3000 rpm. It boasts impressive precision, utilizing an optical measurement method via a single-turn encoder with an EnDat 2.1 interface - yielding system accuracy of ±20 angular seconds. Stored within the encoder's data memory are the motor type name and control parameters, which enable a quick setup and secure adaptation to the drive controller. The servo motor also has an efficient natural convection cooling system.
The machine includes a built-in KTY84 thermal sensor located in the stator, acting as a guard against possible damage arising from thermal overload. In addition to this, the R911317371 (MSK100D-0300-NN-S2-BP0-RNNN) features a separate temperature model for extra security. This motor is encased in a sealant that protects from both solid materials and water jets, earning it an IP 65 rating per EN 60529 standards. The machine's output shaft, which adheres to DIN 6885-1 and DIN 3760 design A, has a keyway and shaft sealing ring. This allows for secure torque transmission with minimal requirements for the shaft-hub connection. To maintain optimal functioning, the motor should be installed no higher than 1,000 meters above ground level.
