R911317397

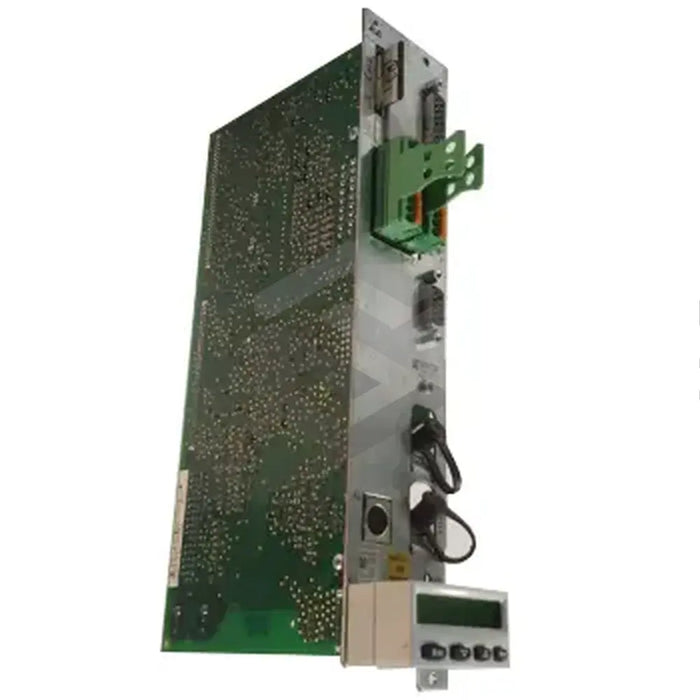

The Bosch Rexroth Indramat R911317397 (CSH01.2C-PB-ENS-NNN-CCD-L1-S-NN-FW) is a control unit specially produced for IndraDrive controllers. It is neatly mounted on the power section and possesses an 8.5-watt DC power draw, dictated by the number of hardware modules placed on the control panel. The unit includes three key modules, each drawing their own power respectively: a Profibus master communication module (2 Watts), an encoder IndraDyn module (6 Watts), and a cross communication module (1 Watt). The cross-communication module meets the IEEE 802.3 standard and gives support to SERCOS III communication, made accessible via its two RJ-45 interfaces.
SERCOS III is a widely accepted industrial Ethernet protocol, specially equipped to cater to motion control applications. This provides a reliable and iterative data exchange platform for various industrial devices. Defined by its ability to handle precise, synchronized communication and maintain control over real-time industrial automations, it is the preferred choice for controlling motion and other critical processes. SERCOS III enforces the exchange of both real-time and non-real-time data, such as diagnostics and configuration. The control unit’s safety module acts as a starting lockout safety feature which prevents the unintentional or unauthorized starting of machinery, enhancing the safety of industrial operations.
