R911317404

Original price $19,720.80 - Original price $19,720.80
Original price
$19,720.80
$19,720.80 - $19,720.80
Current price $19,720.80
Available, Shipping Varies
Request a quote

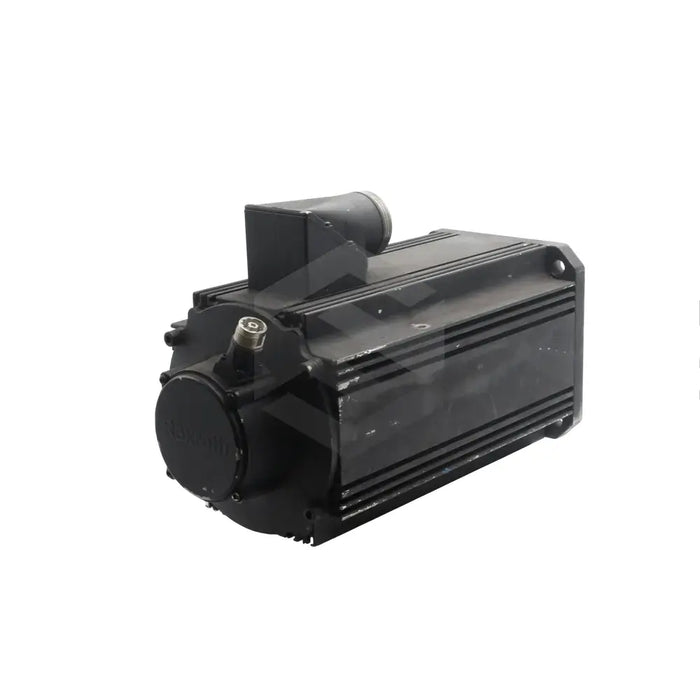

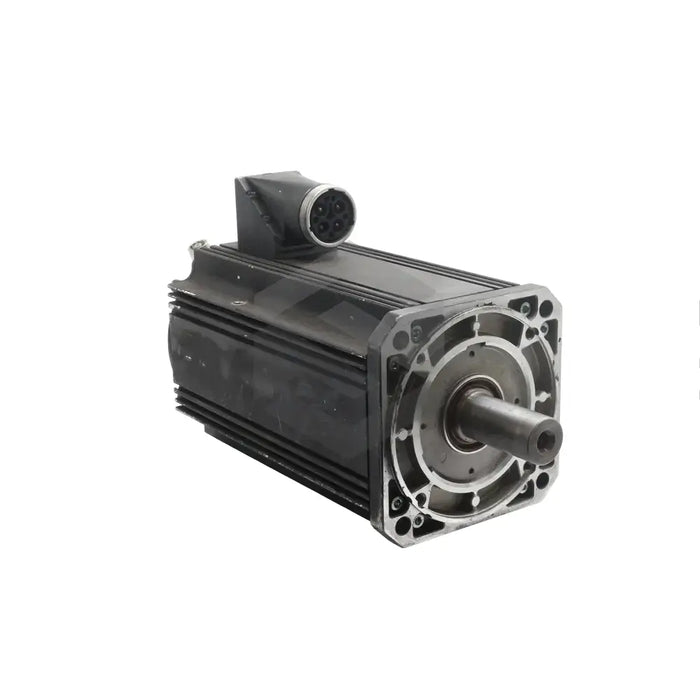

Bosch Rexroth Indramat is the manufacturer behind the R911317404 (MSK101D-0200-NN-S1-AP2-NNNN), a component of their acclaimed MSK motor series known for its high torque density, distinct size increments, and broad power spectrum. These efficient synchronous servo motors are designed for multiple industrial uses while offering safe and cost-effective automation solutions, each varying in their specific interfaces and drive powers. The R911317404 (MSK101D-0200-NN-S1-AP2-NNNN) is unique in its inclusion of a single-turn encoder featuring a Hiperface interface. Its high precision allows for absolute, indirect position evaluation within a single mechanical motor rotation, boasting a system accuracy of ±80 angular seconds and 128 signal periods. Additionally, it contains motor data memory to store control loop parameters and more. An electrically-released holding brake provides 70Nm of holding torque, ensuring the axes remain stationary when the motor is off. A black, 2K epoxy resin coating (RAL 9005) resistant to mild acids, alkalines, water, sea water, sewage, and mineral oils provides extra protection. Self-cooling mechanisms, a keyway-designed output shaft as per DIN 6885-1, a temperature sensor, a temperature model, and DIN 3760-compliant shaft sealing ring ensure optimal performance while protecting against damage from thermal overload.
30 Day Warranty
Technical Specifications
  • Product: MSK101D-0200-NN-S1-AP2-NNNN
  • Housing Resistance: Dilute acids, alkaline solutions, water, seawater, sewage, current mineral oils
  • Manufacturer: Bosch Rexroth Indramat
  • Cooling Method: Self-cooled via natural convection and heat transfer to machine structure
  • Encoder: Single-turn with Hiperface interface
