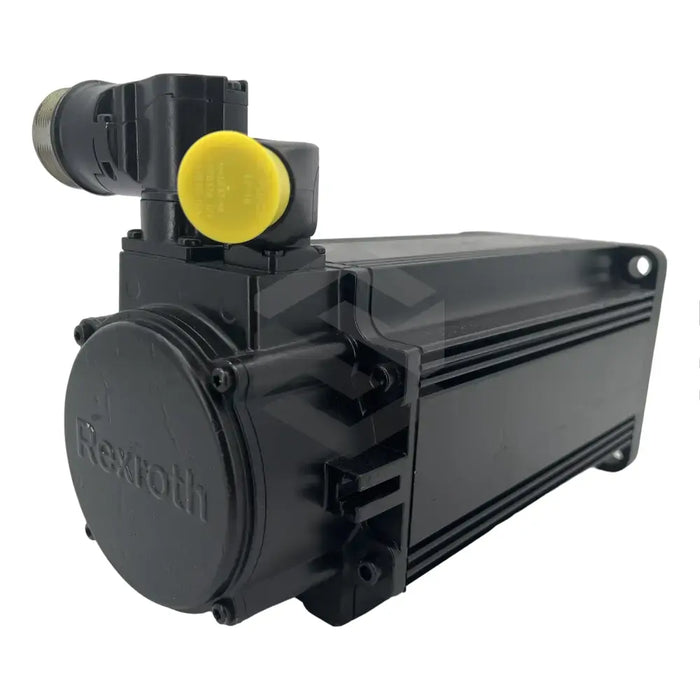

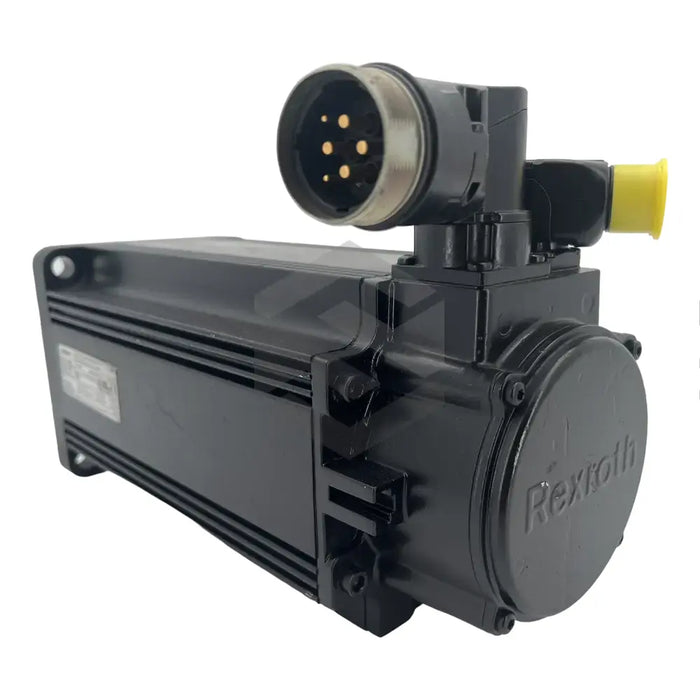

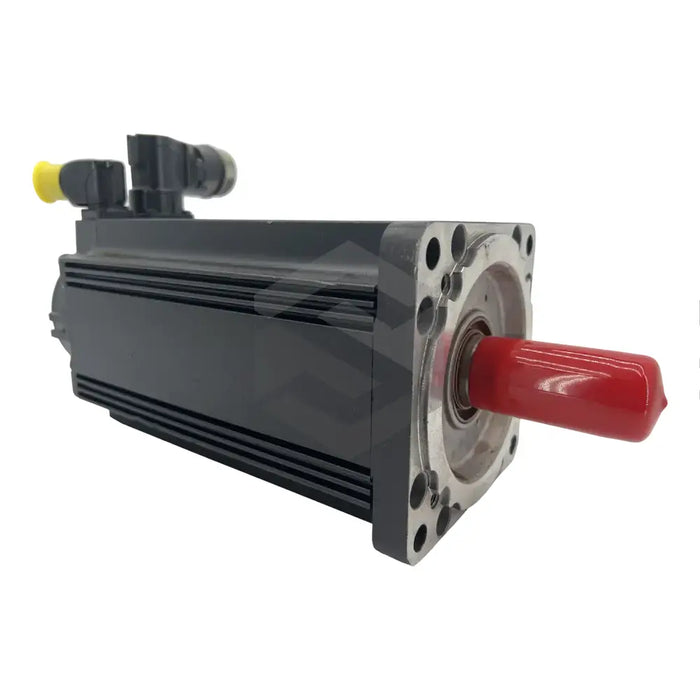

R911317817
The R911317817 (MSK071D-0300-NN-S2-UP2-RNNN), produced by Bosch Rexroth Indramat, is a precision-engineered product designed for maximum performance and longevity. Assembled by a dedicated and proficient team of engineers, the product portfolio includes synchronous motors, primary filters and electronic controllers.
R911317817 (MSK071D-0300-NN-S2-UP2-RNNN) features a synchronous motor with four pole pairs, possessing a thermal time constant of 54 minutes. This provides an indication of the cooling time required for the motor after usage. It contains an allowable operating temperature range of 0 to +40 degrees Celsius as utmost high oscillations could manifest as reduced motor efficiency. Additionally, the device sports a torque constant of 2.12 Nm/A with a winding resistance of 1.26 ohms. The product incorporates an output shaft with specialized keyways coupled with a sealing ring for added durability and safety. The associated holding brake comes with a weight of 1.6 kg and offers a holding torque of 30 Nm at a 0.94 A current draw. The versatile motor can also achieve a peak rotation speed of 3800 rpm and a max current capacity of 40.5 A. The model is furnished with an EnDat2.1 encoder offering absolute encoder features and houses a voltage constant of 134 V/1000min-1. At 60K, the motor can deliver a stable torque output of 17.5 Nm whilst consuming a continuous current of 9.7 A. Bosch Rexroth Indramat aspires for 100% customer satisfaction through committed delivery of superior quality products.
30 Day Warranty
Technical Specifications
