R911317840

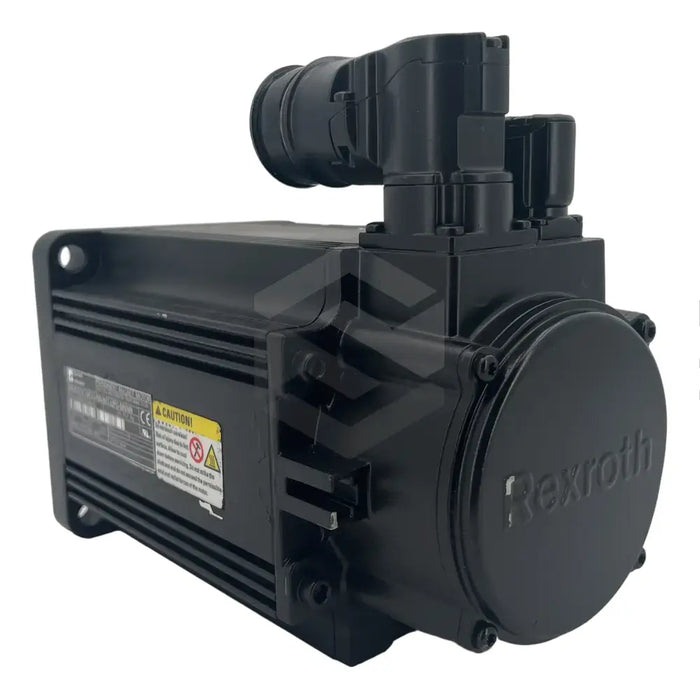

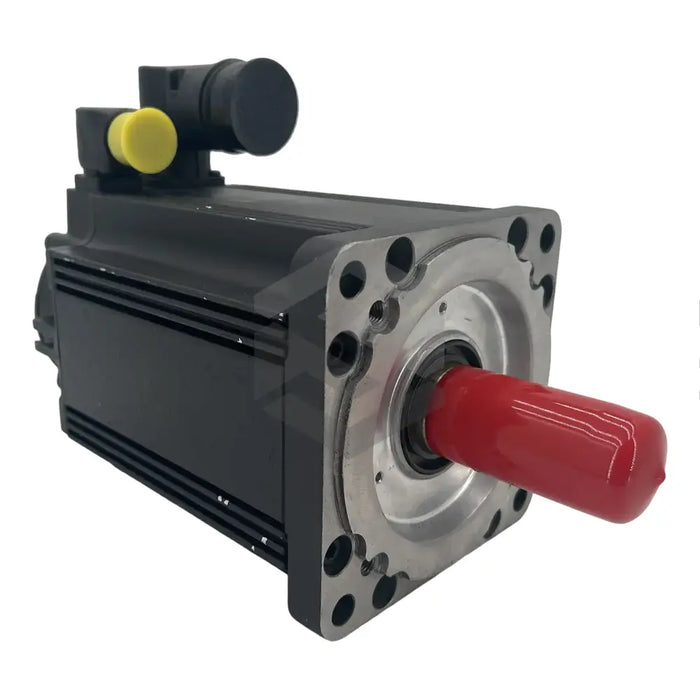

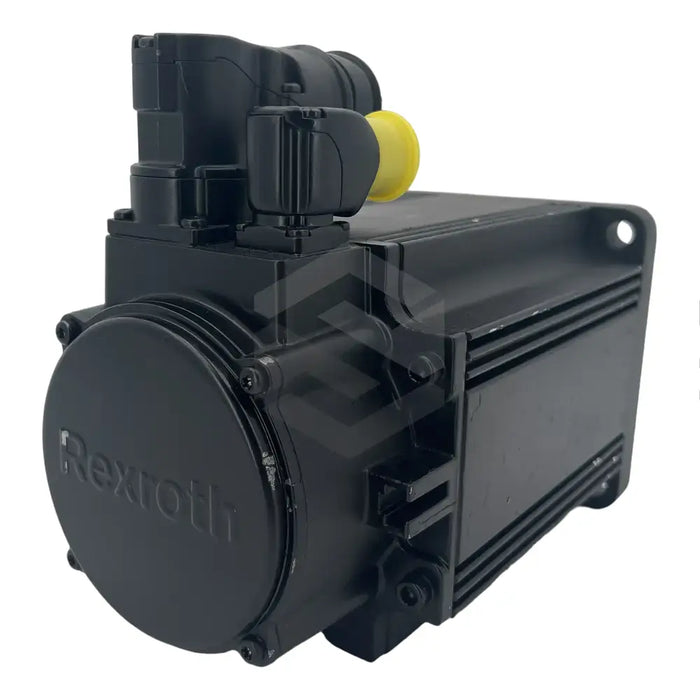

The R911317840 (MSK070C-0300-NN-M2-UP0-RNNN) is a synchronous motor product offered by Bosch Rexroth Indramat, a leading provider of highly efficient and reliable mechanical and electrical components. The device, enveloped in a protective black coat that shields it from diluted acids, chalking, and mineral oils, is designed to perform optimally at elevations capped at 1000 meters above sea level. The motor accommodates IMV1 and IMB5 mounting positions and is equipped with a multiturn absolute EnDat 2.1 optical encoder that aids in precise determination of the motor shaft's absolute position.
This model is remarkable for its compact size, improved dynamics and capability for consistent performance. Expectedly, the MSK070C synchronous motor yields a rated torque of 13 – 14.5 Nm, while drawing a rated current between 8.2 – 9.2 A, culminating in a temperature rise between 60 -100K. With a voltage constant of 107 V per 1000 rpm, and a torque constant of 1.74 Nm/A, this product is designed for efficiency. The R911317840 (MSK070C-0300-NN-M2-UP0-RNNN) is subject to climate conditions set out in DIN EN 60721-3-3, considering factors such as air temperature and humidity, and generates a peak torque of 33 Nm at a speed of 5500 rpm. The motor weighs about 11.7 kg.
