series image of R911317859

R911317859

by Bosch Rexroth Indramat
$12,915.00 - $12,915.00
$12,915.00
$12,915.00 - $12,915.00
$12,915.00
In Stock, Ships 3 - 5 Days

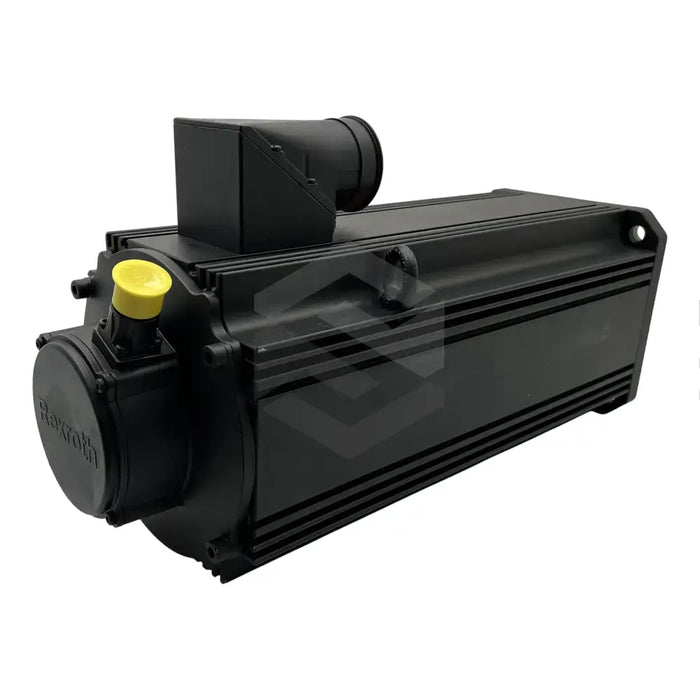

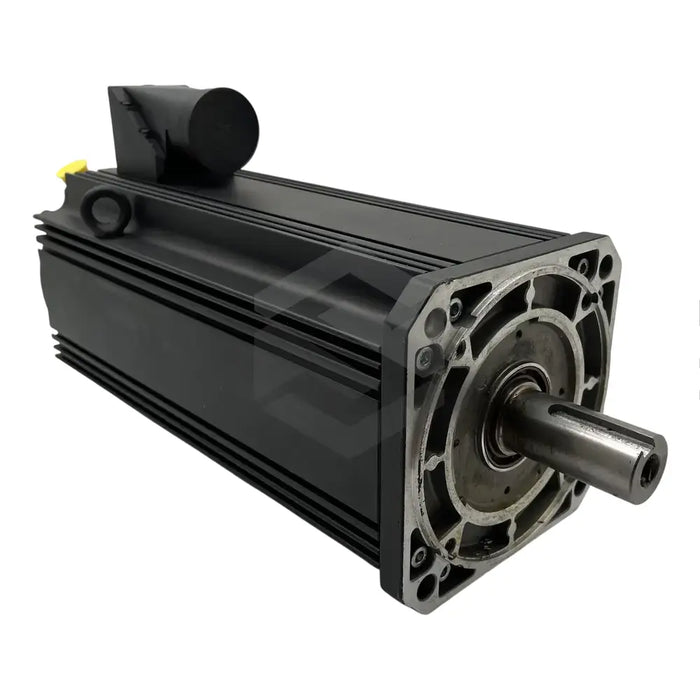

The R911317859 (MSK101E-0450-NN-S1-AP0-NNNN), produced by Bosch Rexroth Indramat, is a part of the IndraDrive system, renowned in the industry for its bespoke approach to automation solutions. With flexible design facilitating scalable performance, the system features the MSK synchronous motor which stands out for its compact size, precision, and high torque density. This motor series is optimized for broad applications, accommodating needs in areas like robotics, machine tools, and food processing machinery. Designed with motor size 101 and length E, the R911317859 (MSK101E-0450-NN-S1-AP0-NNNN) model leverages natural convection for heat dissipation and incorporates a Singleturn optical encoder for position determination. The encoder features a Hiperface interface and provides a system accuracy of ±80 angular seconds. The motor is packed with a shaft that has radial shaft sealing rings aligned with DIN 3760 – design A and keyway according to DIN 6885-1. The model boasts a maximum speed of 6,000 rpm and maximum current of 262.4A. It provides voltage constant of 81.2 V/min-1 and torque constant of 1.32 Nm/A at 20°C. Use Bosch Rexroth's ready-made cables for easy assembly and commissioning.
30 Day Warranty
Technical Specifications
  • Model: MSK101E-0450-NN-S1-AP0-NNNN
  • Motor Length: E
  • Assembly Recommendation: Use of Ready-Made Cables by Bosch Rexroth.
  • Heat Dissipation: Natural Convection
  • Winding Code: 0450
