R911318108

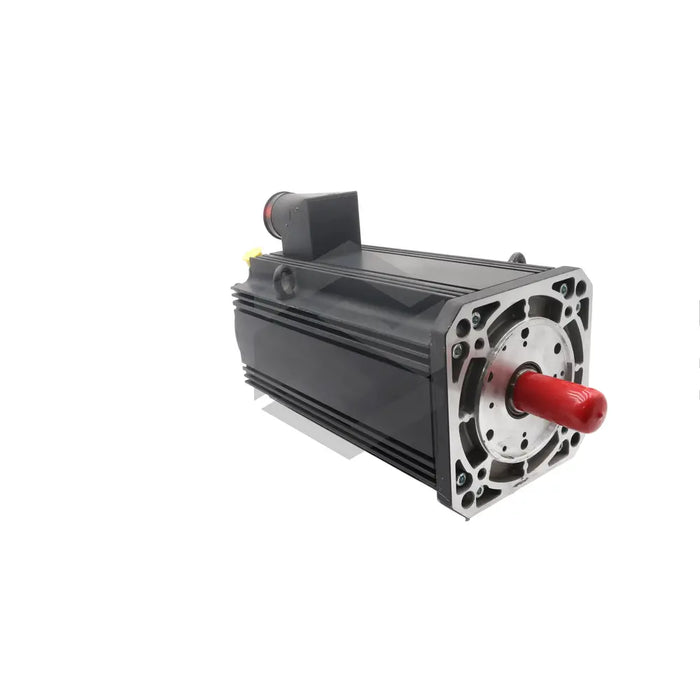

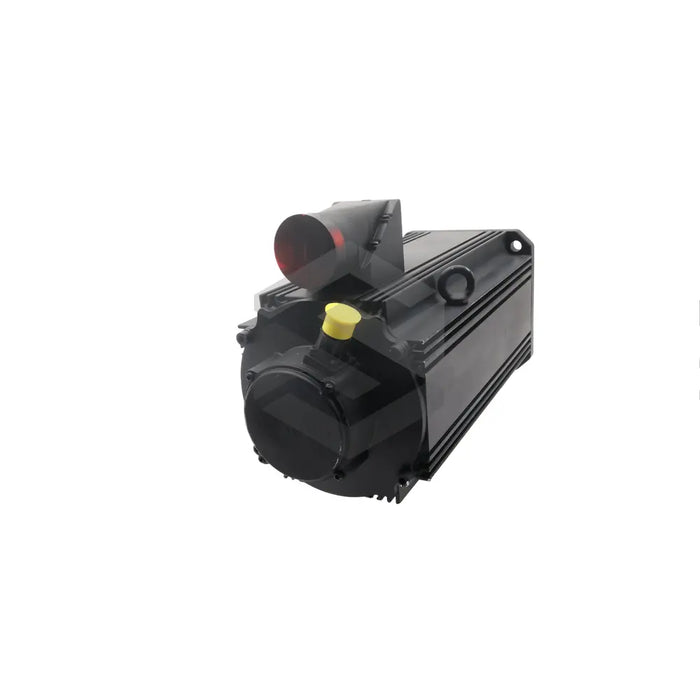

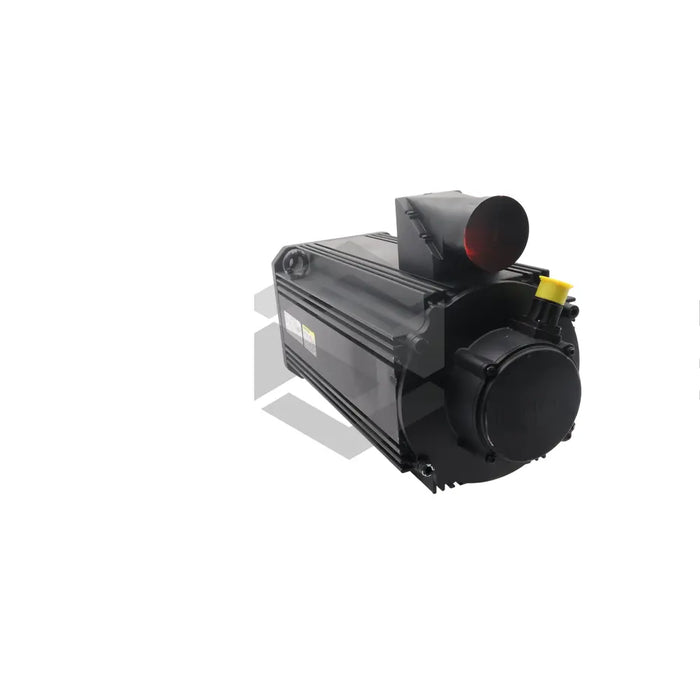

Our product at task is the R911318108 (MSK100C-0200-NN-M2-BP0-RNNN) servomotor from Bosch Rexroth Indramat. This model is part of the outstanding IndraDyn S family, renowned for setting the benchmark in quality and innovation array which includes synchronous and linear motors, spindle motors, drive controllers, frequency converters, drive converters, brake choppers, and inverter modules.
The R911318108 (MSK100C-0200-NN-M2-BP0-RNNN) synchronous motor delivers exceptional performance, generating 38 Nm and 43.5 Nm of torque at 60 K and 100 K, respectively. It houses an advanced EnDat2.1 optical encoder for precise positional tracking and dissipates heat through natural convection. With a thermal time constant of 90 minutes and an inertia moment of 0.02730 kgm2, it is built for efficiency and reliability. Equipped with a shaft featuring keyways and a sealing ring, this model ensures a robust and watertight system. Other key features are its maximum torque of 148 Nm, continuous torque of 57 Nm, and a responsive temperature sensor for monitoring. This model also has an insulation class of 155 and a protection rating of IP65, demonstrating its resilience against dust and liquid ingress. It is designed to operate within a temperature range 0 to 40 degrees Celsius, making it versatile across multiple applications.
