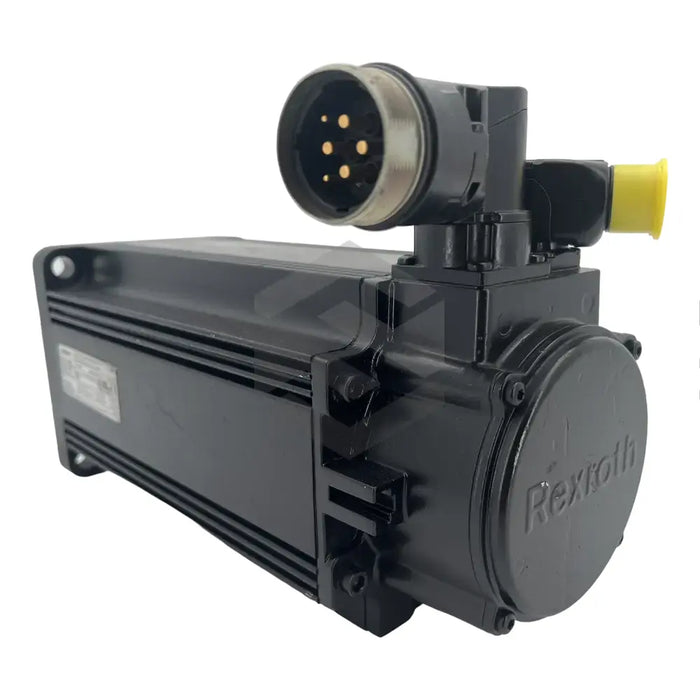

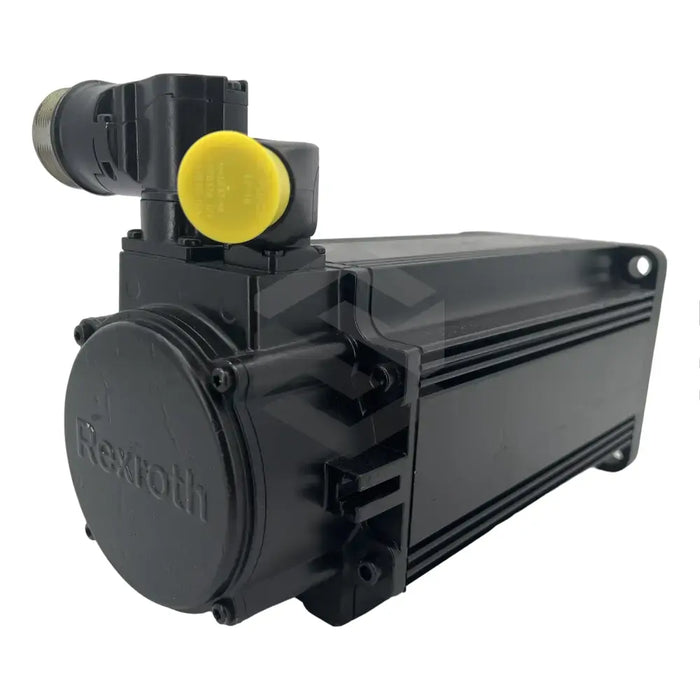

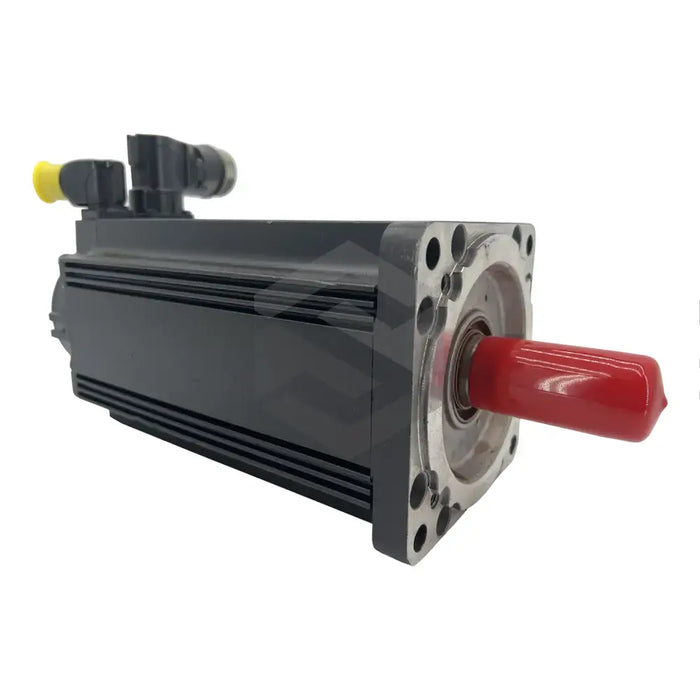

R911318310
The R911318310 (MSK071D-0300-NN-S1-UP1-NNNN), crafted by Bosch Rexroth Indramat, is a synchronous servo motor. The motor operates in synchronization with the frequency of the input current in a closed loop control system, maintaining communication with a servo controller. The motor's feedback reports on speed and torque, which the controller compares with the pre-set goals. An adjustment of output follows if the feedback deviates from the desired parameters. This feedback-regulation dynamic provides precise motor speed and torque control. The unit includes a singleturn optical encoder, which uses Hiperface support to ensure accurate feedback.
Also featured in the R911318310 (MSK071D-0300-NN-S1-UP1-NNNN) is a specialized 23 Nm holding brake, which employs an electrical release method, only freeing the shaft after the application of a 24 Volts DC signal. This mechanism prevents uncontrolled movements and consequential mishaps. The motor has a standard housing design with a keyed shaft and a seal to facilitate efficient torque transfer and protection for motor bearings. The motor's power and feedback connectors can swivel 240 degrees in either direction for flexibility. Self-cooling through natural convection, it operates best in temperatures between 0 to 40 degrees Celsius. Adhering to IP65 protection specifications, it weighs approximately 18 kilograms.
