series image of R911318719

R911318719

by Bosch Rexroth Indramat
$3,938.29 - $3,938.29
$3,938.29
$3,938.29 - $3,938.29
$3,938.29
Available, Shipping Varies

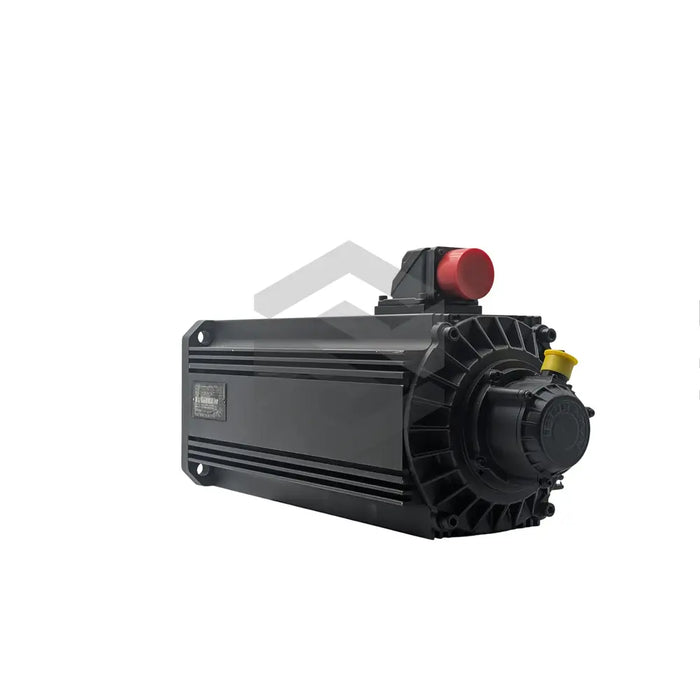

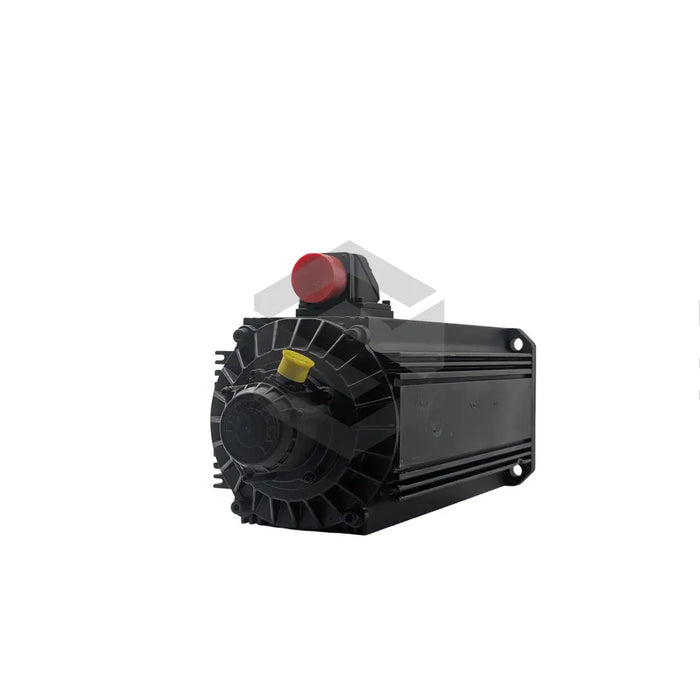

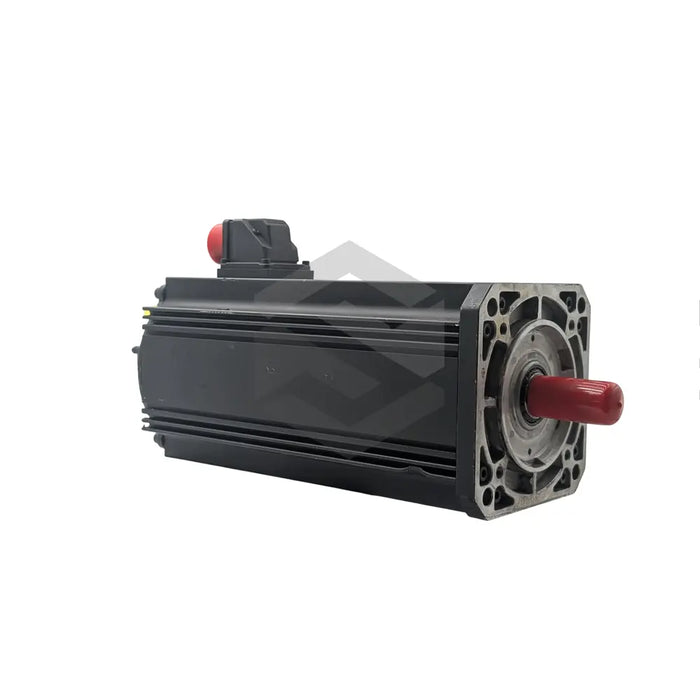

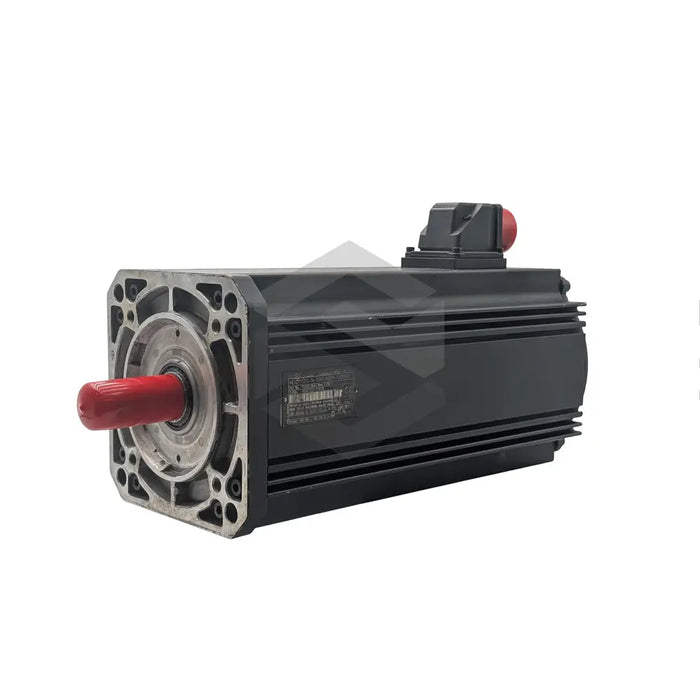

The R911318719 (MHD112C-035-NG3-LN), a uniquely designed digital servo motor, is crafted and prepared by Bosch Rexroth Indramat. Falling under the MHD series, the motor boasts superior features like overloaded safeguarding, seamless cabling, and an effortless startup process. This digital servo motor is composed of key elements including a stator, a shaft, rotor with enduring magnets, and a 70 Nm holding brake that prevents shaft rotation until acted upon by a 24 Volts DC release signal. Designed with built-in digital servo feedback, the R911318719 (MHD112C-035-NG3-LN) sends back signals to the drive controller via a dedicated feedback cable. The housing is designed for natural or surface cooling, depending on the load of the motor. The flange-mounted motor operates at a rated speed of 2500 RPM with a flange size of 192mm and offers a maximum theoretical torque of 148Nm. The motor rotor's moment of inertia is 0.0273 kg m2. The sealed IP65 rated housing protects the motor, ensuring it is dust tight and water-resistant. Providing a power output of 0.7 kilowatts and a voltage of 303 volts, this digital servo motor completes its elegant look with a matte black (RAL 9005) painted surface.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Feedback Type: Digital servo feedback
  • Rated Current: 9.1 Amps
  • Motor Housing: Sealed (IP65 rated)
  • Power Cable Connection: Left side of the motor housing
