R911319156

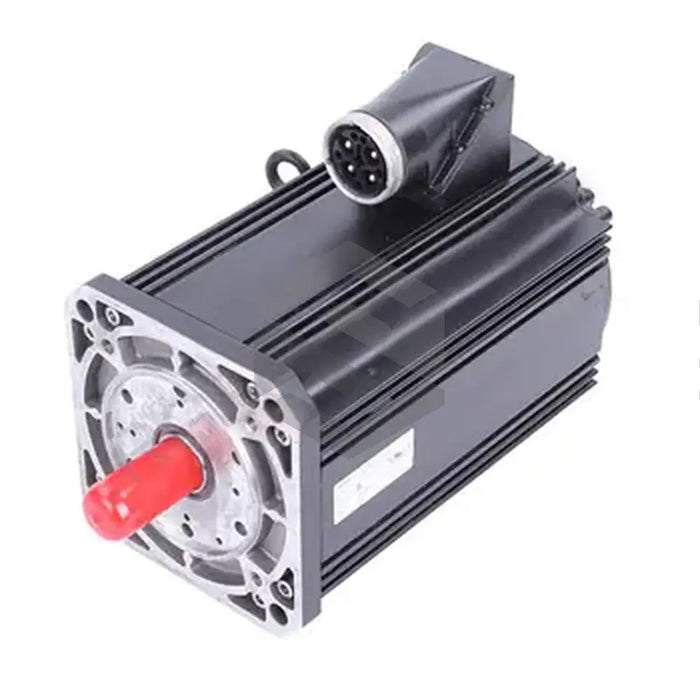

The R911319156 (MSK100B-0450-NN-M2-BG0-RNNN) is a top-of-the-line servo motor designed and manufactured by industry leader Bosch Rexroth Indramat. This versatile motor is suitable for a spectrum of applications, such as food-processing machines, robotics, and metal-forming machines. It offers a myriad of customization choices to serve specific client needs, including optional holding brakes, six kinds of encoders, two main output shaft variants, and three different cooling methods. The R911319156 (MSK100B-0450-NN-M2-BG0-RNNN) model is equipped with an optical multiturn encoder furnished with an EnDat 2.1 interface, rated for 2048 signal periods, and utilizes natural convection for cooling. If fitted with a cooling fan, MSK motors can deliver increased output torque and current.
The R911319156 (MSK100B-0450-NN-M2-BG0-RNNN) model provides 28 Nm output torque via natural convection and up to 42 Nm when surface cooling is applied. The corresponding output currents are 28.5 Amps and 42.8 Amps, respectively. The motor components have a leakage capacitance of 10.3 nanofarads and the model includes a plain shaft with a shaft seal. The rotor has a moment of inertia of 0.01920 kg m2. The maximum rotational speed is 4500 RPM. Power is supplied to the motor through a drive controller via a power cable. Despite its user-friendliness, Bosch recommends installation and operation of the servo motor by proficient personnel to avoid potential errors.
