R911319418

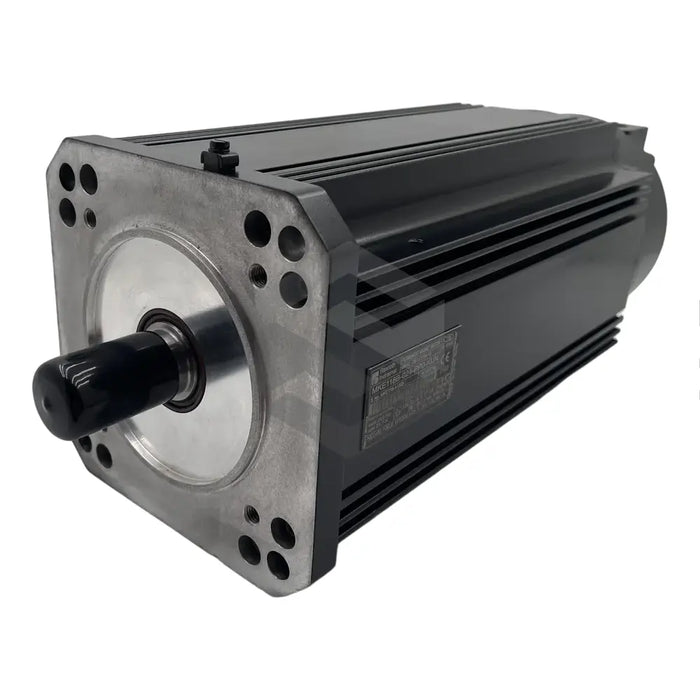

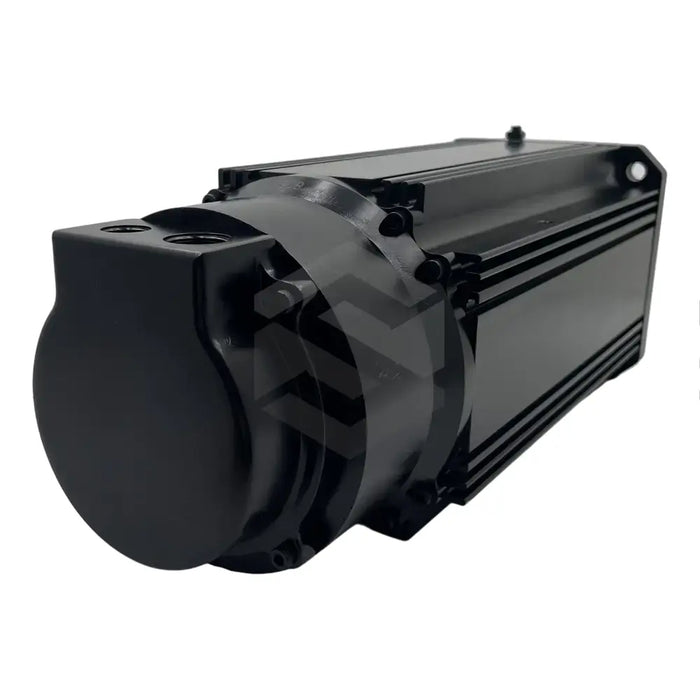

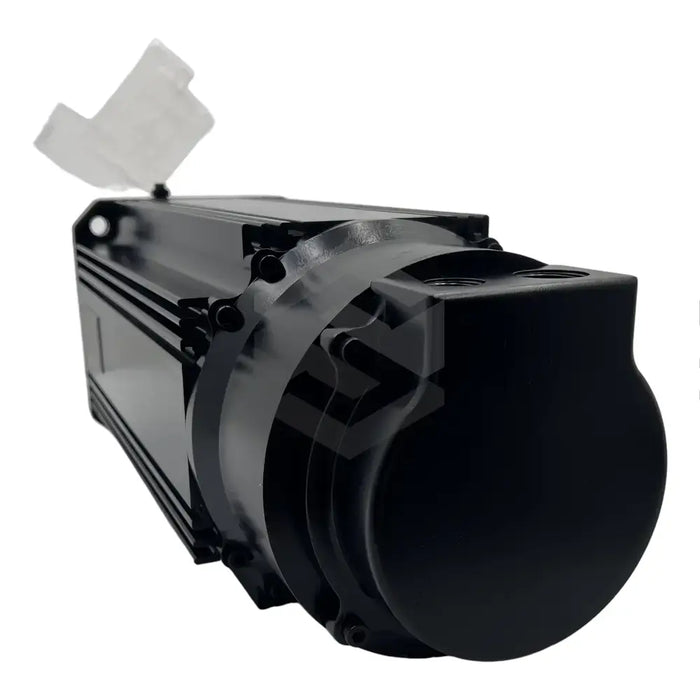

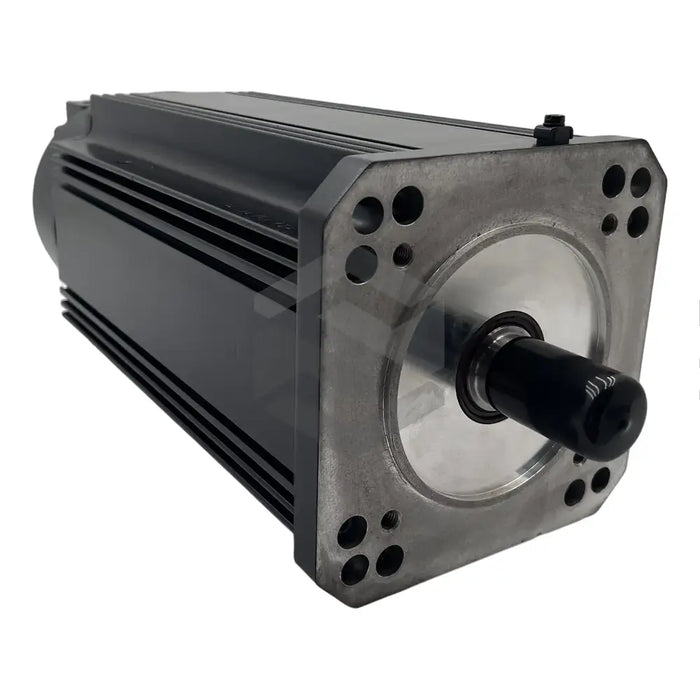

The R911319418 (MKE118B-024-PP0-KUN) synchronous motor is a product from the reputable manufacturer, Bosch Rexroth Indramat, designed to be used in areas with potential explosions. The motor housing conforms to the UL (Underwriter Laboratories) standard, making it suitable for tough industrial environments. The motor comes with a winding code of 024 and a frame size of 118. It boasts a continuous torque at standstill for the 60 K condition of 28 Nm, peaking at a maximum torque of 102 Nm. With a maximum motor current rating of 69.1 Amps and a 60 K condition continuous current standing at 15.3 Amps, the motor also has a discharge capacity of 10.3 nanofarads. The winding resistance and inductance are 7.6 Ohms and 0.58 millihenry respectively. It can reach a maximum velocity of up to 4000 RPM.
Ranked at an IP65 protection category, the R911319418 (MKE118B-024-PP0-KUN) is perfect for use close to operation machines. This positioning minimizes costs as separate switch cabinets are not needed, and it reduces cable runs. It produces an ambient noise level of up to 61.1 dB when in operation. The shaft, complete with a keyway and sealing ring, offers extra protection to the motor and extends the service life. However, the shaft seal will need periodic replacement. The motor features a cable entry diameter based on the US standard and lacks a holding brake. Electrical connections can be made via a terminal box at the top of the motor. This high-power motor requires qualified personnel for operation.
