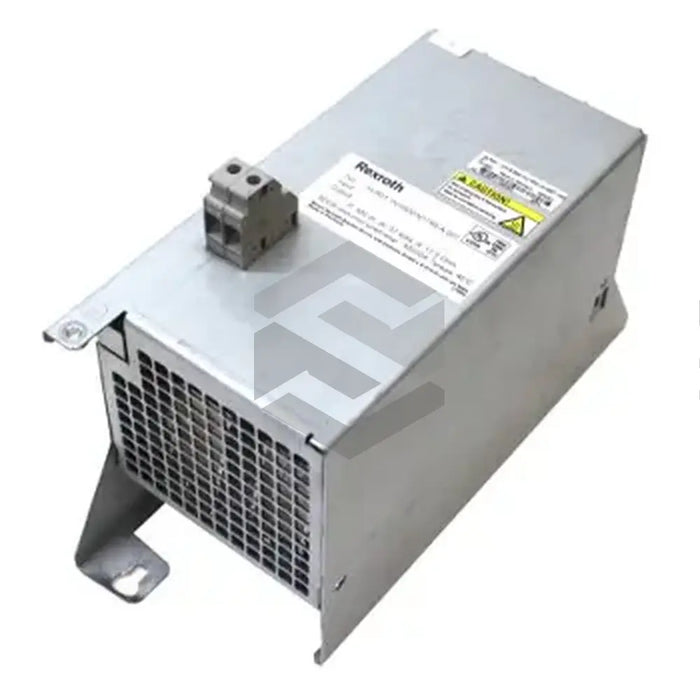

R911319943
The R911319943 (HLR01.1N-03K8-N40R3-A-007-NNNN) brake resistor is a high-power industrial component developed by the renowned manufacturer, Bosch Rexroth Indramat. Offering unrivaled control solutions for automation challenges, Bosch Rexroth is a key player in the motion control sector. This brake resistor has been designed with a rugged build, enabling it to handle increased inertia loads and high torque produced by heavy-duty machinery.
Sporting dimensions of 490 mm width, 270 mm height, and 300 mm depth, the R911319943 (HLR01.1N-03K8-N40R3-A-007-NNNN) unit is robust yet portable, and its weight of 9.5 kg allows for easy installation. It demonstrates top-level performance with an energy employment of 300 kWs and a peak braking power of 18 kW. This brake resistor's cooling mechanism ingeniously leverages airflow extracted from the converter, preventing overheating during high-energy dissipation. This unit also ensures the prevention of overvoltage faults in the HSC03 converter. Its specifications include a 3.8 kW braking power duration, a 40.3 Ω resistance and a cycle time of 120 seconds, proving very effective in managing motion control requirements.
30 Day Warranty
Technical Specifications
