series image of R911319987

R911319987

by Bosch Rexroth Indramat
$4,675.42 - $4,675.42
$4,675.42
$4,675.42 - $4,675.42
$4,675.42
Available, Shipping Varies

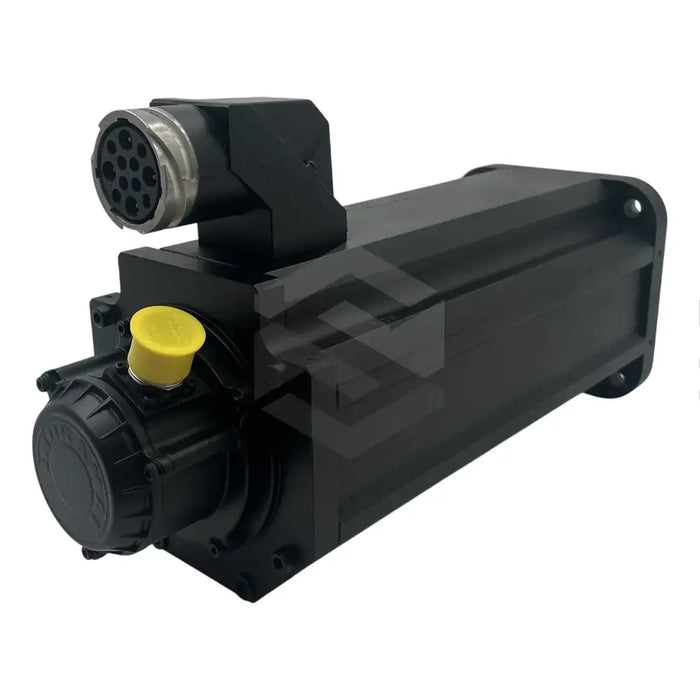

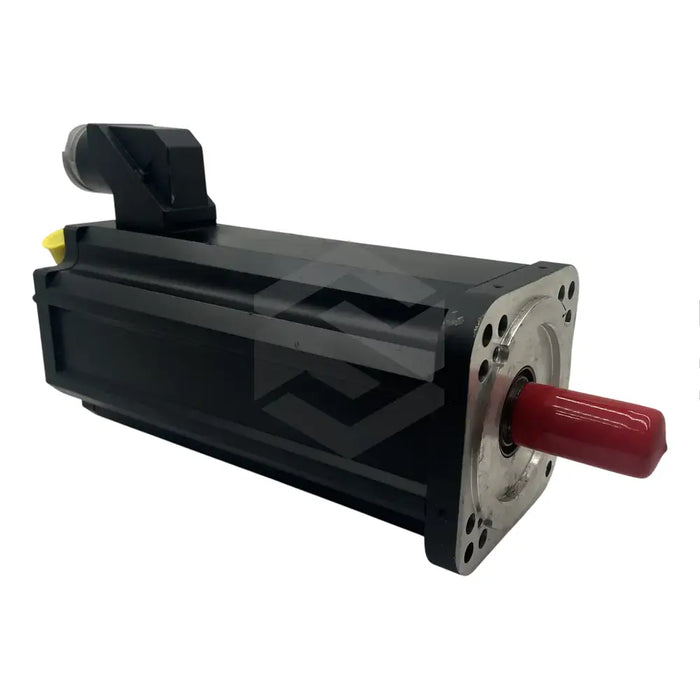

The R911319987 (MHD093C-024-PG0-BA) is an advanced synchronous motor by Bosch Rexroth Indramat, a leading manufacturer of industrial and commercial machinery components. This motor is often the main servo drive in applications like machine tools, robotics, and textile manufacturing. The MHD093 synchronous motor is crafted following EN and UL standards, offering a rated performance of 2.7 – 6.7 kW. It can generate a torque of 11.4 – 27.4 Nm at 2000 rpm while consuming a rated current of 4.9 – 7.8 A under natural convection and 12.1 A under surface cooling conditions. The motor housing, painted prime black, employs class-F insulation and uses B-side power connectors to connect to an AC 320 – 339 V power supply. Rated IP65, it can withstand tough environmental conditions, its functionality secured by a plain rotor with a protective sealing ring. Installation should occur at 0 to +40 degree Celsius for optimal performance. For precise position detection, the motor feedback integrates an encoder with HSF. The R911319987 (MHD093C-024-PG0-BA) product is available at Servo Supplier.
30 Day Warranty
Technical Specifications
  • Rotor Design: Plain, Sealed
  • Operating Modes: Natural Convection, Surface Cooling
  • Product Type: Synchronous motor
  • Standards: EN, UL
  • Protection Category: IP65
