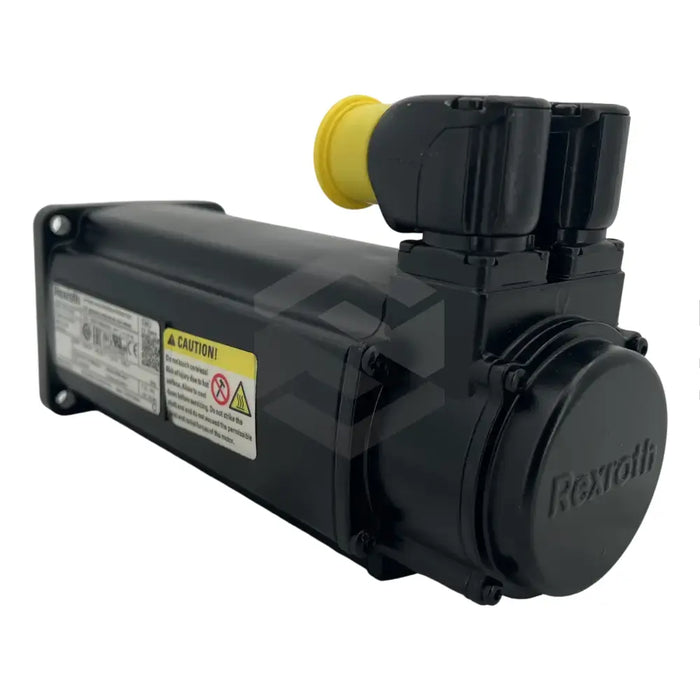

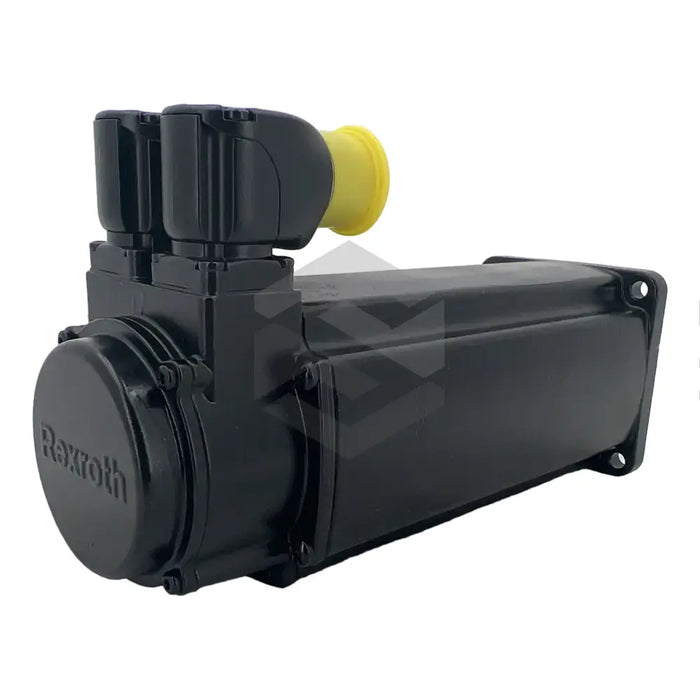

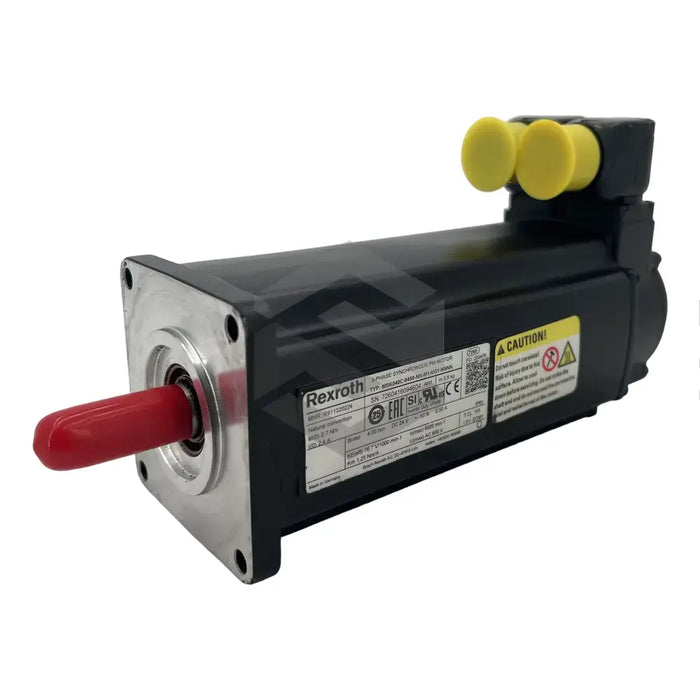

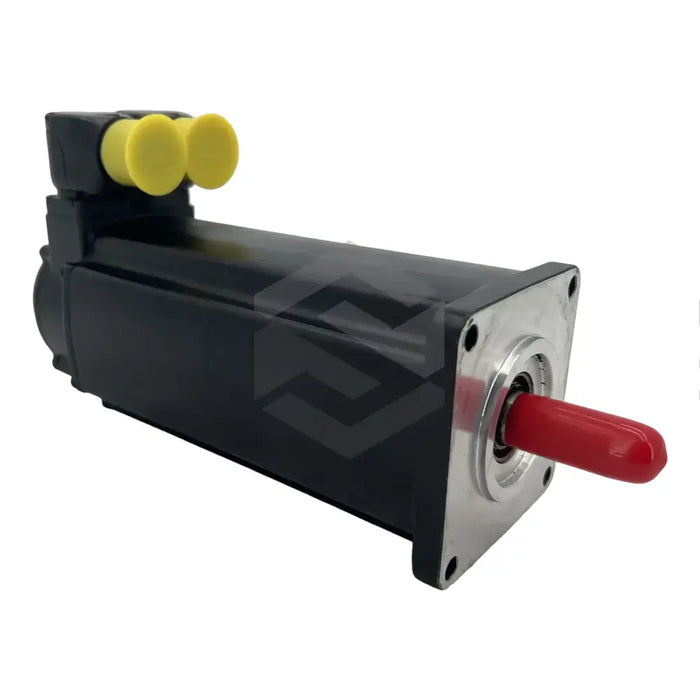

R911320224
The Bosch Rexroth Indramat R911320224 (MSK040C-0450-NN-M1-UG1-NNNN) is a product of advanced technological integration into traditional electric technology, derived from the innovative Indradyn S series. Characterized by its compact structure, these servomotors are equipped with an optical encoder system that allows for the highest level of precision.
These versatile servomotors can function in regular operations and adapt to a variety of working environments, from functioning as a primary rotary motor to acting as a linear drive. The MSK range, a subset of the line, has applications extending from packaging to food machinery. Rexroth has ingeniously devised interfaces to adapt these drives for specific applications. Two main characteristic curves, 60K and 100K mode, exist to adapt to varying temperature strokes. The R911320224 (MSK040C-0450-NN-M1-UG1-NNNN) motor comes with four pairs of poles, offering a robust 8.1 Nm stoppage torque and a maximum speed of 7500 rpm. It also features a holding electric brake of 4Nm, with an Imax of 12.4 A and inductivity of 21300 mH..Radial force in the system is directly proportional to its maximum axial force. For optimal performance, it is crucial to correctly install sensors and actors for open loop system monitoring and control.
