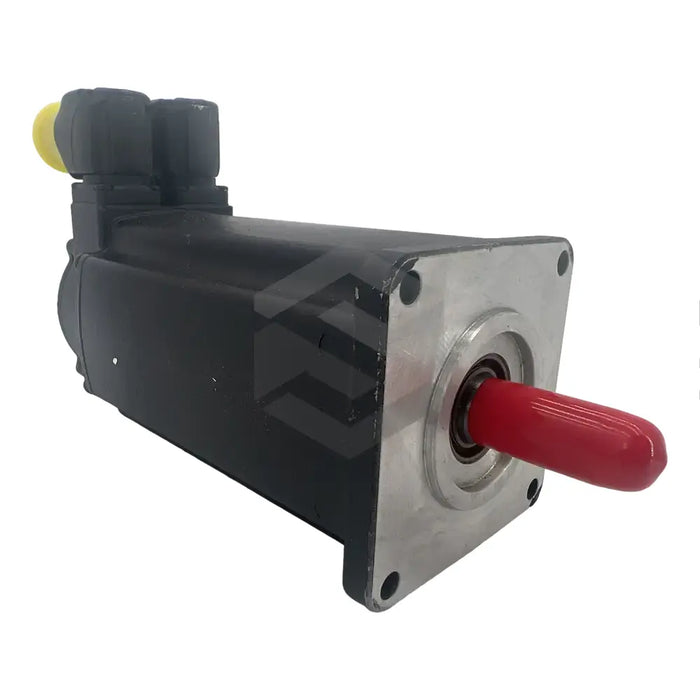

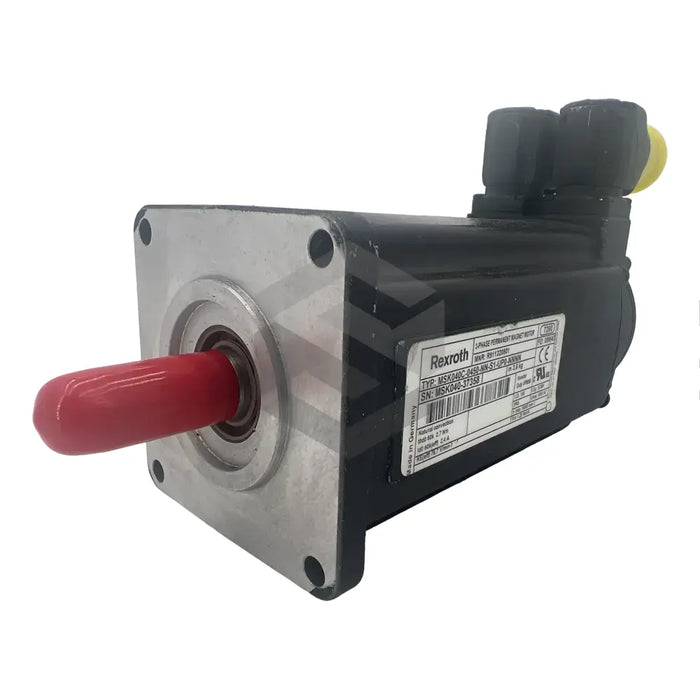

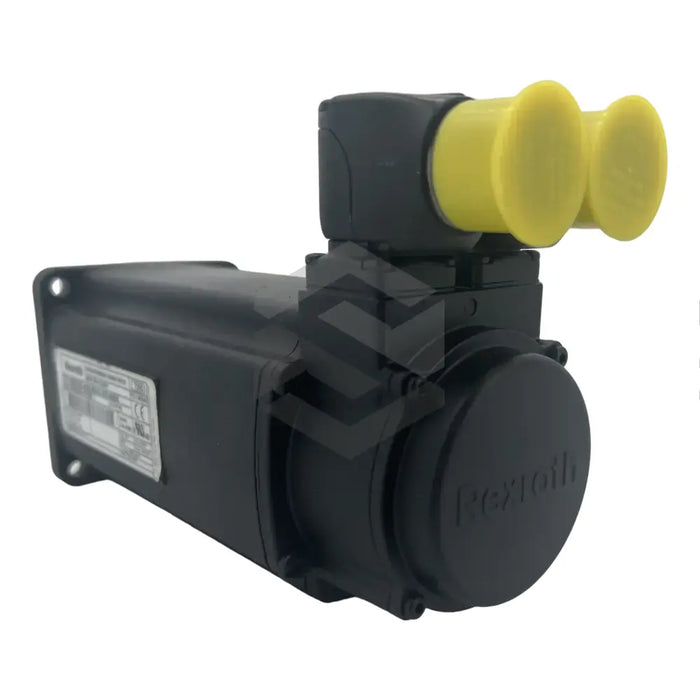

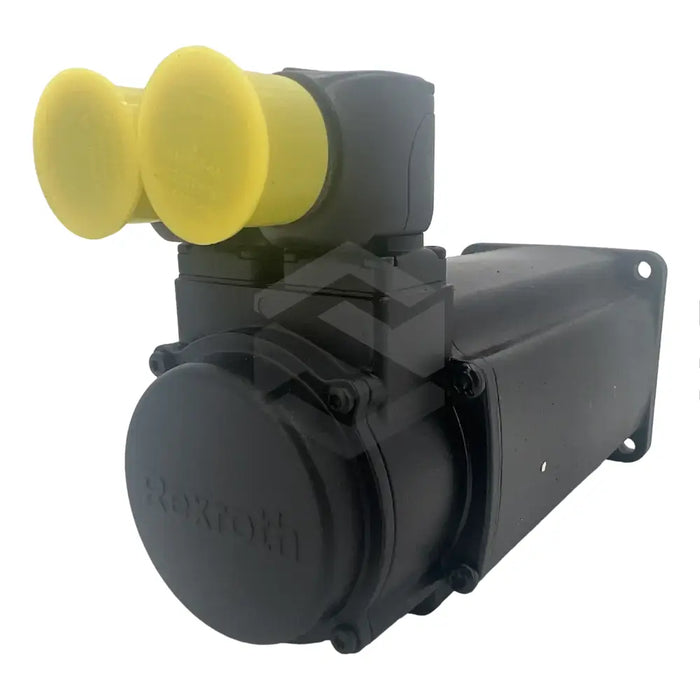

R911320801
The R911320801 (MSK040C-0450-NN-S1-UP0-NNNN) is a state-of-the-art product from Bosch Rexroth Indramat, part of their IndraDyn S servomotor series. These motors boast high torque densities encapsulated in a compact form, function optimally under an IP65 protection degree and are suitable for a variety of applications including but not limited to food, printing, tooling and metal forming machines. An optical encoder with pronounced precision tracks the rotor's position at any specific time. The servomotors come in diverse models to match any specific need and function as a main drive, kit or linear depending on the application.
This R911320801 (MSK040C-0450-NN-S1-UP0-NNNN) servomotor operates at temperature strokes between 60k and 100k. It possesses a natural cooling feature and an optical encoder with 128 increments. Designed without a holding brake, it steadily stops under a particular torque. The motor's magnetic circuit remains unaffected even at maximum current. It operates on 4 pairs of poles, achieving a nominal 7500 rpm and features a shaft sealing ring. The servomotor either employs a 60k characteristic curve supported by an aluminum flange structure which insulates the system, or a 100k curve without insulation if not important for the application. It has sensor and actor adaptations options for more precise control and monitoring. In summary, Rexroth servomotors deliver quick responses and high accuracy for variable applications.
